How to use each part
13
Chapter 2
1
2
3
4
5
6
7
8
9
10
11
UO12
2. How to use each part

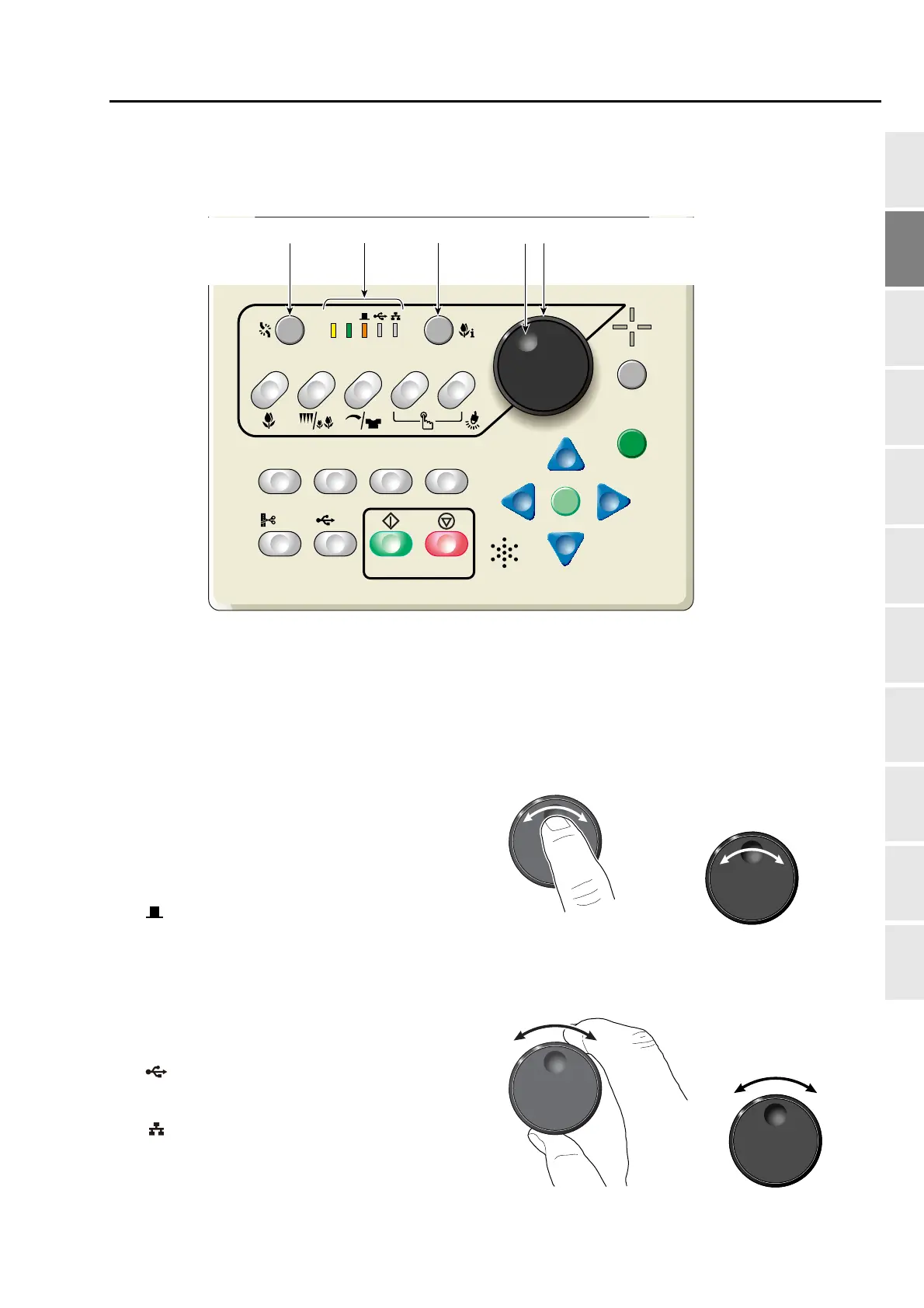

2-1. Operation panel
F1
A
AS FB
START STOP
BC
E
SET
D1 D2
F2 F3 F4
3. Design confirming mode key (i key in this manual)
(p.25)
It is possible to check the detail of the design to be
embroidered from now.
4. Jog dial
Move the frame at low speed.
5. Jog shuttle
Move the frame at high speed.
It is illustrated as below in this
manual.
It is illustrated as below
in this manual.
1. Thread breakage indicator lamp (p.70)
To suspend a head (p.18)
To trim thread (p.77)
2. Condition of the machine
AS (Auto Start)
To perform: Lit
Not to perform: Unlit
FB/FF (Frame Back / Frame Forward) (p.67)
Frame Back: Lit
Frame Forward: Unlit
(Main shaft stop position)
Fixed position: Lit (normal)
Other than the fixed position: Unlit
(abnormal)
Lower dead point, or main shaft brake
"NO": Blinking
(USB memory)
Connecting to USB memory: Lit
(LAN)
Connecting to LAN: Lit
