Takagi 540P Indoor - Exhaust Vent (Stainless Steel Vent)

23 Page
Installaon
Installaon Manual

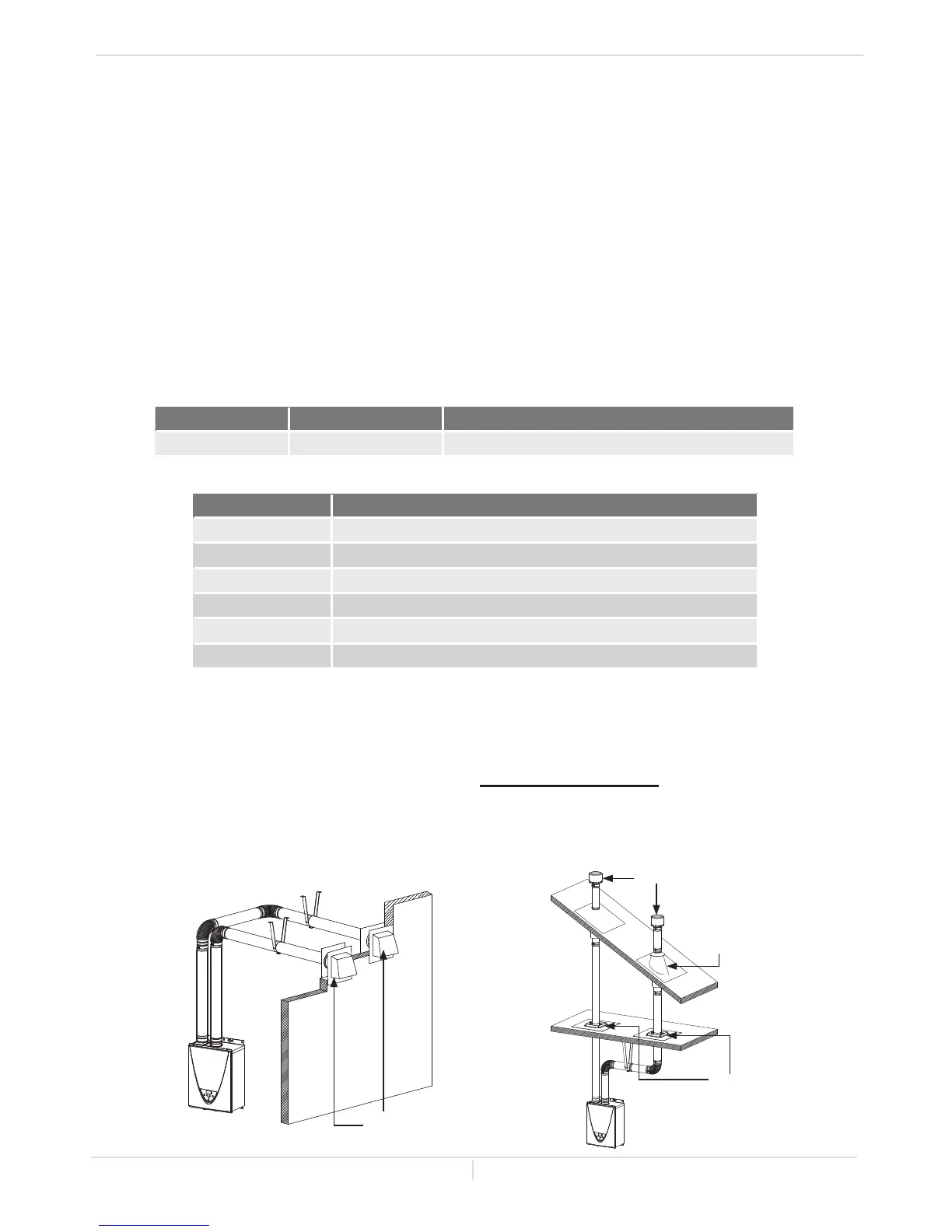

stainless steel vents

Roof

Fire stop
Rain cap

Sidewall vent

Wall
Hanger
Hanger
-Exhaust vent (Stainless steel vent)-
This is a Category IV appliance and must be vented accordingly. The vent system must be sealed airtight.
All seams and joints without gaskets must be sealed with high heat resistant silicone sealant or UL listed
aluminum adhesive tape having a minimum temperature rating of 160 °F (71 °C). For best results, a vent
system should be as short and straight as possible.
 The Indoor model is a Category IV appliance and must be vented accordingly with any 4” (106
mm) vent approved for use with Category III/IV or Special BH type gas vent.
 The manufacturer recommends the NovaVent line. However, the following are also UL listed
manufacturers: ProTech Systems Inc. (FasNSeal), Metal-Fab Inc., and Heat-Fab Inc. (Saf-T Vent).
 Follow the vent pipe manufacturer’s instructions when installing the vent pipe.
 The maximum length of exhaust vent piping must not exceed 100 ft (30.5 m) (deducting 5 ft (1.5
m) for each elbow used in the venting system). Do not use more than 5 elbows.
 When the horizontal vent run exceeds 5 ft (1.5 m), support the vent run at 3 ft (0.9 m) intervals
with overhead hangers.
Diameter Max. No. of Elbows Max. Vertical and Horizontal (Total) Vent Length
4 in (102 mm) 5 100 ft (30.5 m )
*For each elbow added, deduct 5 ft (1.5 m) from max. vent length.
Excludes vent terminators, termination elbows, or rain caps.
No. of Elbows Max. Vertical or Horizontal Vent Length
0 100 ft (30.5 m)
1 95 ft (29.0 m)
2 90 ft (27.4 m)
3 85 ft (25.9 m)
4 80 ft (24.4 m)
5 75 ft (22.9 m)
-DIP switch settings for vent length-
