Installaon
Installaon Manual

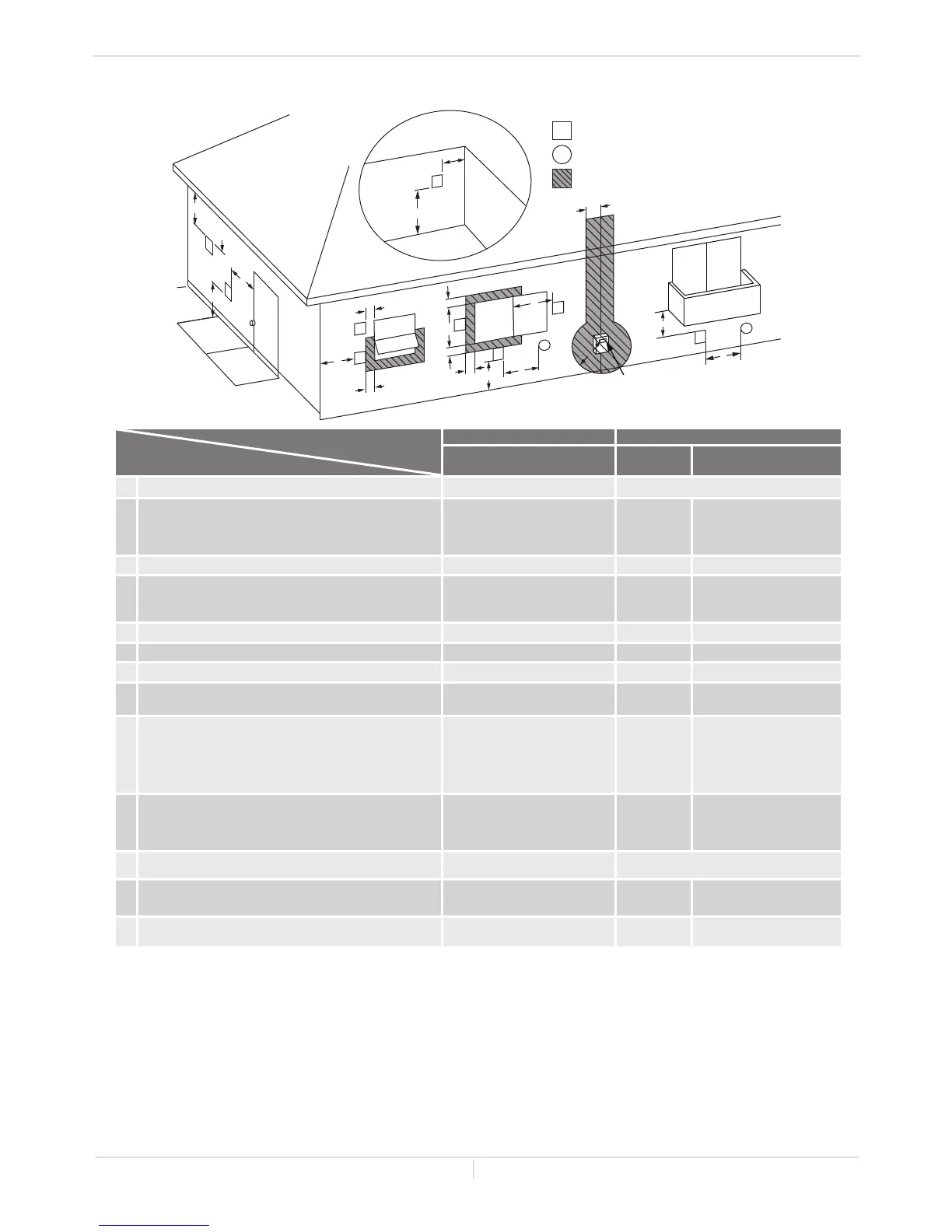

-Vent terminaon clearances-
Canada Installations
1
US Installations
2
Direct vent and other than
direct vent
Direct vent
Other than
direct vent
A Clearance above grade, veranda, porch, deck, or balcony 1 ft (30 cm) 1 ft (30 cm)
B Clearance to window or door that may be opened 3 ft (91 cm)
1 ft
(30 cm)
4 ft (1.2 m) below or to
side of opening; 1 ft (30
cm) above opening
C Clearance to permanently closed window 0 0 0
D
Vertical clearance to ventilated soffit located above
the vent terminator within a horizontal distance of 2
feet (61cm) from the center line of the termination
3 ft (91 cm) 3 ft (91 cm) 3 ft (91 cm)
E Clearance to unventilated soffit 3 ft (91 cm) 3 ft (91 cm) 3 ft (91 cm)
F Clearance to outside corner 2 ft (61 cm) 2 ft (61 cm) 2 ft (61 cm)
G Clearance to inside corner 2 ft (61 cm) 2 ft (61 cm) 2 ft (61 cm)
H
Clearance to each side of center line extended
above meter/regulator assembly
3 ft (91 cm) * *
I Clearance to service regulator vent outlet
Above a regulator within 3
ft (91 cm) horizontally of the
vertical center line of the
regulator vent outlet to a
maximum vertical distance of
15 ft (4.5 m)
* *
J
Clearance to non-mechanical air supply inlet to
building or the combustion air inlet to any other
appliance.
3 ft (91 cm)
1 ft
(30 cm)
4 ft (1.2 m) below or to
side of opening; 1 ft (30
cm) above opening
 Clearance to mechanical air supply inlet 6 ft (183 cm)
3 ft (91 cm) above if within
10 ft (3 m) horizontally.
L
Clearance above paved sidewalk or paved driveway
located on public property
7 ft (213 cm)**
7 ft
(213 cm)
7 ft (213 cm)
M Clearance under veranda, porch deck, or balcony 1 ft (30 cm)***
1 ft
(30 cm)***
1 ft (30 cm)***
*Clearance in accordance with local installation codes and the requirements of the gas supplier.
**A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings
and serves both dwellings.
***Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
The vent for condensing water heaters shall not terminate:
1) over public walkways; or
2) near soffit vents or crawl space vents or other areas where condensate or vapor could create a nuisance or hazard or
cause property damage; or
3) where condensate vapor could cause damage or could be detrimental to the operation of regulators, relief valves, or
other equipment.
Notes:
1) In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code
2) In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
H
D
E
L
B
V
V
V
V
B
F
C
B
B
B
V
V
V
V
V
X
X
A
J
M
Operable
Fixed
closed
Fixed
closed
Operable
B
Inside corner
detail
G
A
K
V
X
= Vent terminal
= Air supply inlet
= Area where the terminal
is not permied
Regulator/Gas meter
vent outlet
I
