Takagi Mobius T - M1 User Manual

Multi System
Main Multi System Controller (TM-RE20) and Temperature Remote Controller (TM-RE10)
wiring:
RE-20 RE-10
201 202 201 202 201 202 201 202

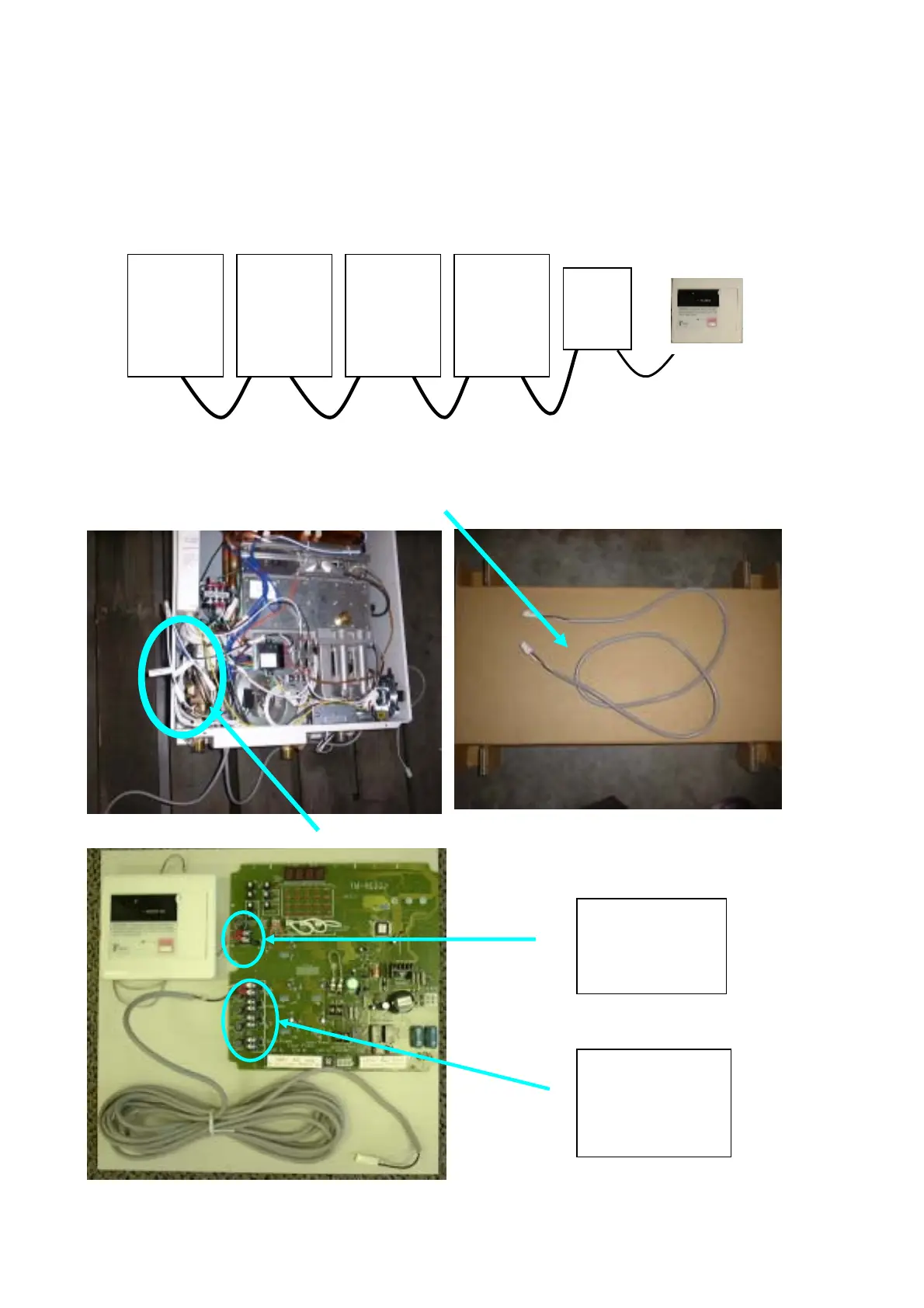

Detail Wiring: T-M1 Comunications cables are inside Box for TM-RE20.
TM-RE10 Cable can be use above 18 gage wire and up to 250 ft.
Wire No. 201 (Male Adapter) and No 202 (Female Adapter)
For TM-RE10
Port.
Use 18 Gage
Wire.
No Polarity
It has four Ports.
Each port can
connect up to Five
T-M1.
No Polarity
