Takagi T-M1 User Manual

- 24 -

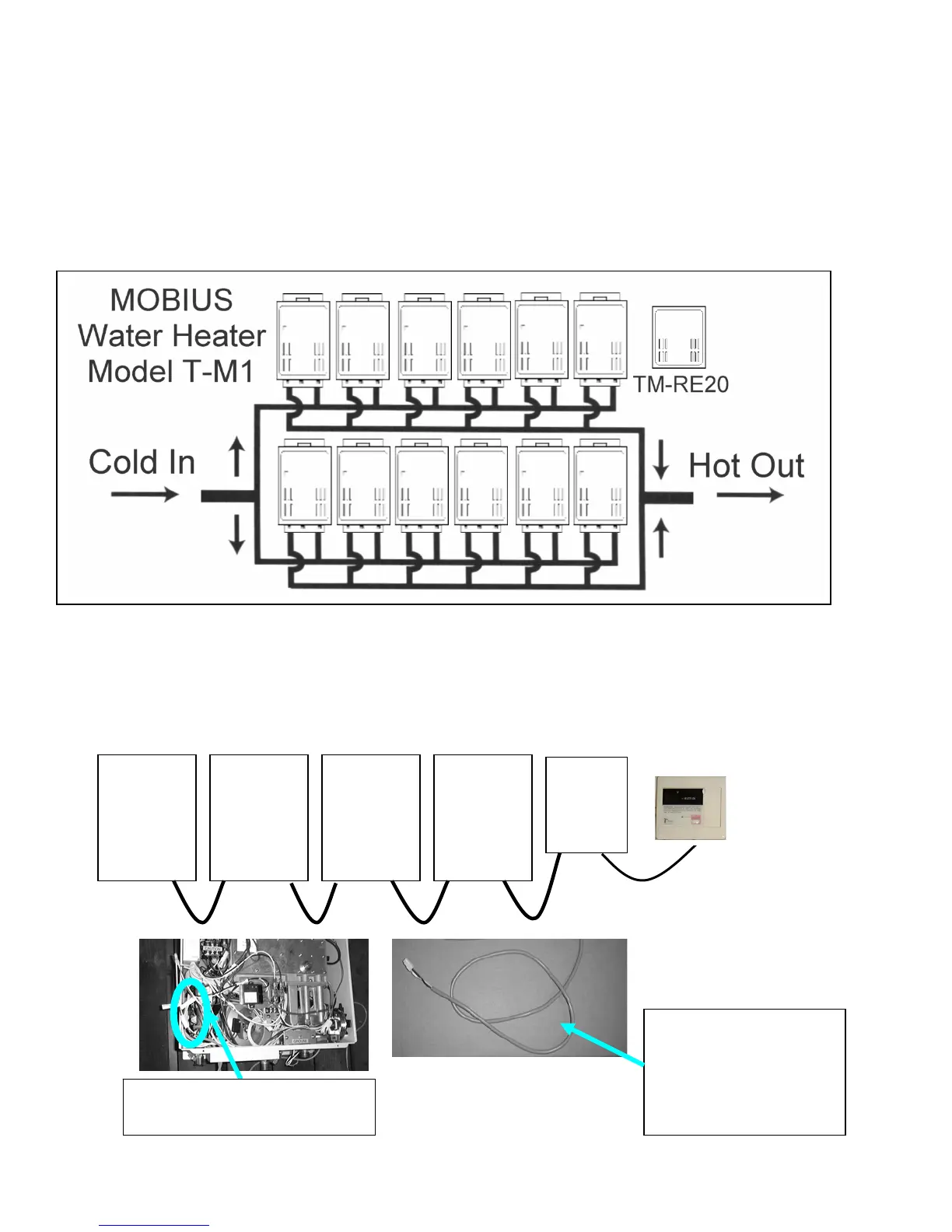

Manifold Multi-System Application for Large Volume.
MOBIUS Water Heater has full capability of manifolding multi-systems, with Multi-System Computer Control
(Part TM-RE20 and Part TM-RE10). This Multi-System Computer Controller, you can manifold from 2 units to
20 units for commercial and residential application with each computer controller.
One computer (Part TM-RE20) system can make from 25,000 BTU to 4.7 Million BTU system, with fully
automatic modulation for large applications.
Electric Wiring: MOBIUS Water Heater™ Model T-M1 Electrical Load: Maximum 0.8 A, 120V per Unit.
Individual cut off switch, even though units have very low electrical load, recommended for multi-system for the
purpose of maintenance.
Multi System
Main Multi System Controller (TM-RE20) and Temperature Remote Controller (TM-RE10) wiring:
RE-10
.
Detail Wiring: T-M1
Comunications cables are
inside Box for TM-RE20.
TM-RE10 Cable can be use
above 18 gage wire and up
to 250 ft.
Wire No. 201 (Male Adapter)
and No 202 (Female Adapter)
TM-RE20
201201201 201 202202 202
T-M1T-M1
T-M1
T-M1
