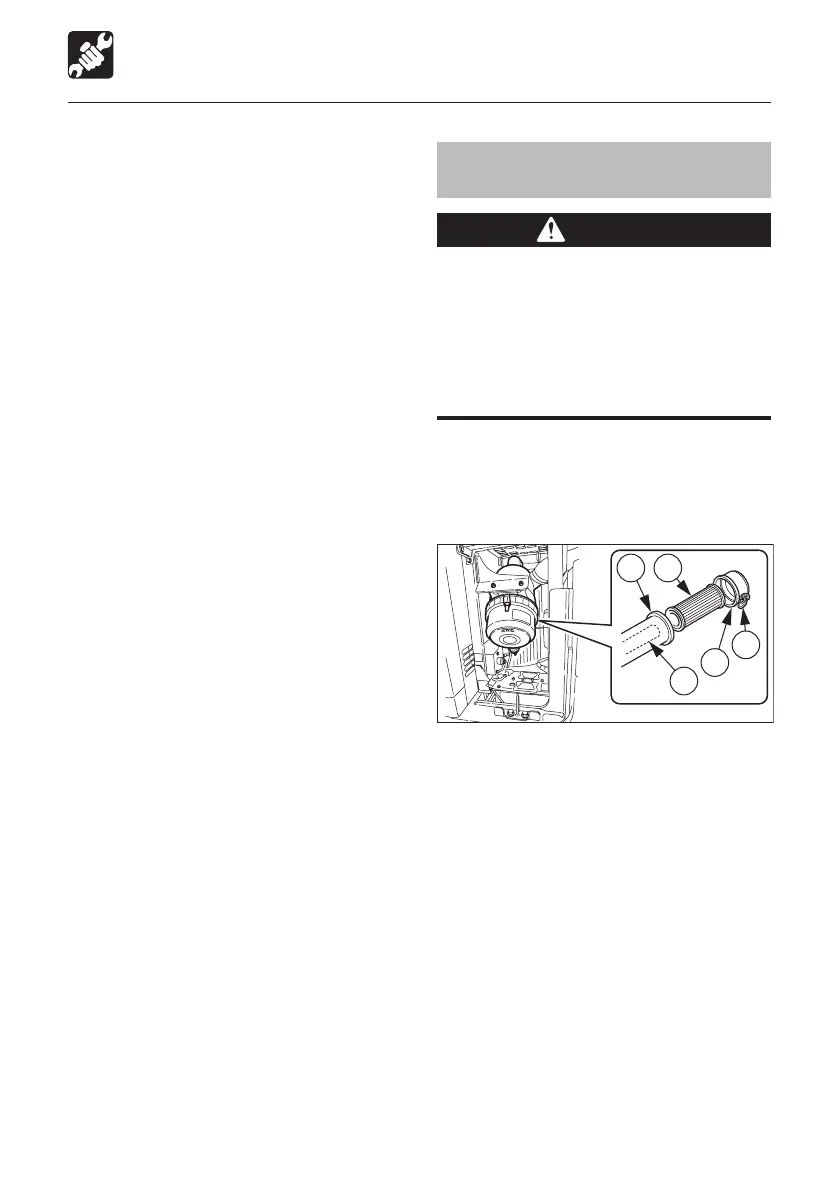

Replacing the Air Cleaner
Elements
WARNING
Stop the engine and allow the machine
to cool down before performing
maintenance.
�
The engine, muffler, radiator and many
other parts of the machine are hot
directly after the engine is stopped.
Touching these parts will cause burns.
IMPORTANT: Do not use an element if its
flutes, gaskets or seals are damaged.
1. Open the left side cover.
2. Loosen the clamps (1) and remove the dust
cup (2).
3. Clean the inside of the dust cup (2).
4. Remove the outer element (3).
Do not yet remove inner element (5).
5. Clean the inside of the body (4).
6. Remove the inner element (5).
7. Install the new elements.
8. Install the dust cup (2) with the “TOP” mark
at the top, then fasten it with the clamps
(1).
9. After draining the water, clean using
cleaning agent. Clean following the
instructions included with the cleaning
agent you are using.
10. Repeat steps 4 to 8 to rinse the cooling
system.
11. Tighten the drain plug (4).
12. Slowly add the new coolant (mixture of
antifreeze and tap water) through the
radiator’s coolant supply port up to the
top of the port. Take your time doing
this.
13. Close the radiator cap (3).
14. Warm up the engine. Use the meters to
check that there are no irregularities in the
cooling system at this time.
15. Raise the water temperature to at least
90°C (194°F), then run the engine as such
for about 10 minutes.
16. Stop the engine, let the water’s temperature
lower, then check the level of coolant in
the radiator, and replenish up to the top
of the coolant supply port.
17. Close the radiator cap (3).
18. Clean the interior of the reserve tank (1),
then add coolant to the upper limit (H).
19. After replacing the coolant, inspect the
coolant level once again after operating
the machine.
The coolant permeates the entire system
during operation, so the level decreases.
Replenish by the amount the level has
decreased.
Every 1000 Hours
