Takeuchi TB175W - Page 148

146
MAINTENANCE
When Required

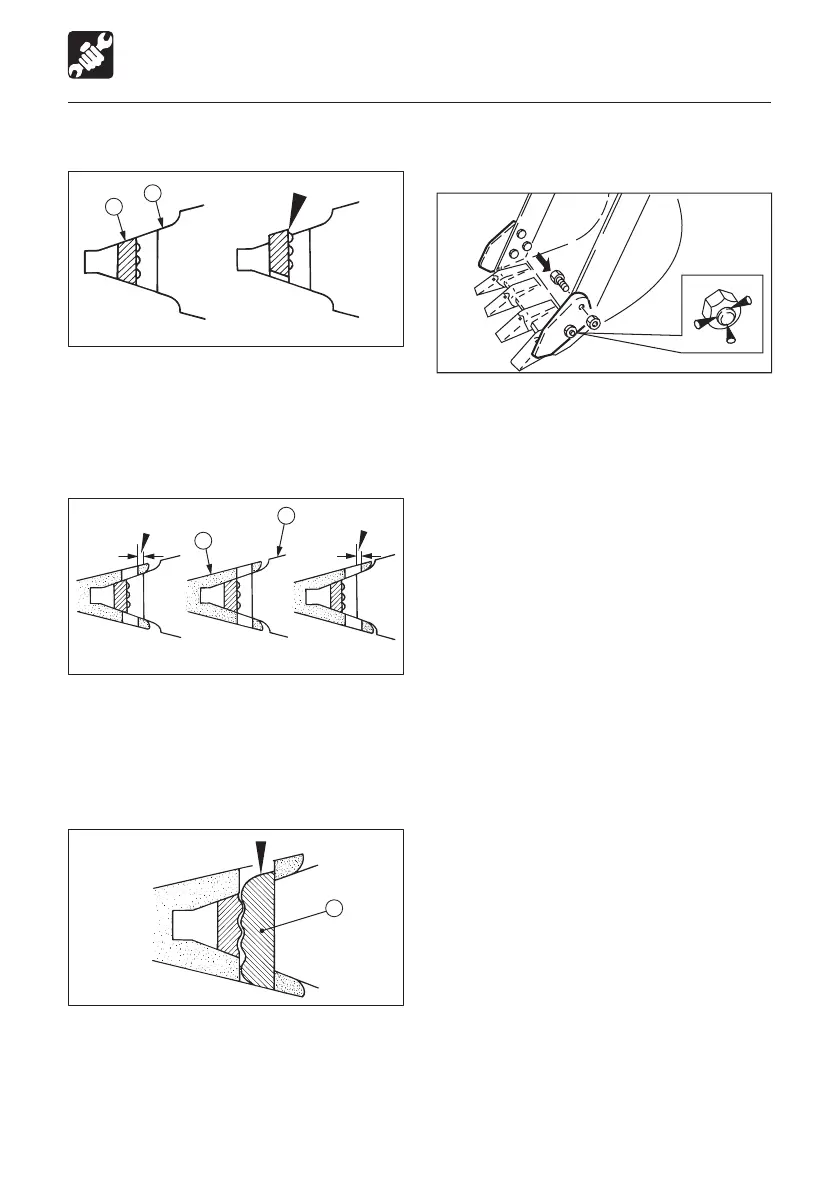

Installation
1. Push rubber pin lock (3) into welding
adaptor (4).
Do not let the rubber pin lock stick out past
the welding adapter surface.
2. Install point (2) onto welding adaptor (4).
Insert the point so that the surface behind
the point’s pin hole is flush or deeper than
the surface behind the welding adapter’s
pin hole.
3. Drive in locking pin (1).
After driving in the locking pin, use a pin with
the same surface as the point surface. Do not
use worn locking pins.
�
Side cutter
Installation
1. Insert the bolts from the inner of the bucket
and tighten the nuts.
• Tightening torque: 475 N·m (350 ft-lb)
2. Caulk the bolts with a punch at three spots
along the periphery of the screw to prevent
the nuts from coming loose.
E4G045
3
4
E4G046
4
2
E4G047
1
G4G026
ProperImproper Proper
