151
MAINTENANCE
When Required

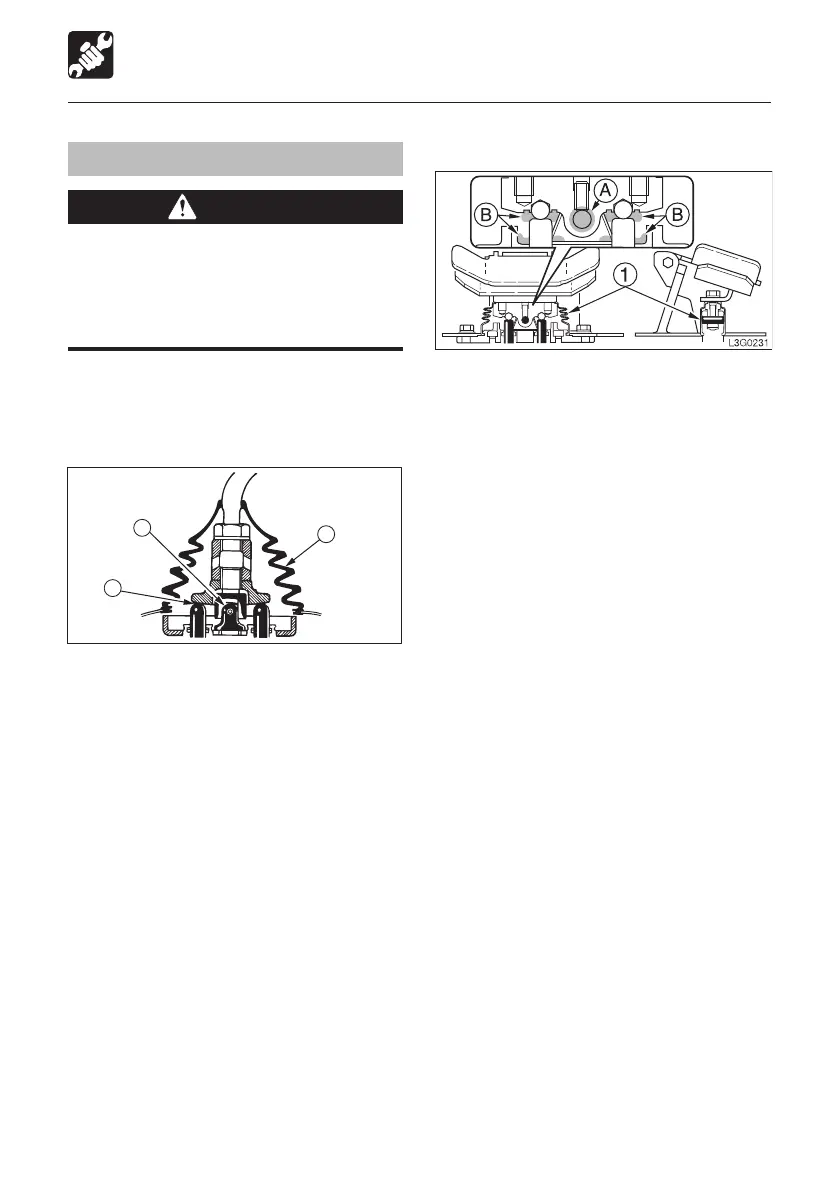

Boom swing pedal
1. Remove the lower mount section of the
boot (1) and turn it upwards.
2. Wipe off the old grease.
3. Supply grease to points (A) and (B).
4. Set the boot (1) back as it was.
Lubricating the Levers
WARNING
Set the machine to the parking posture,
stop the engine, remove the starter key
and store it. Failure to do so may result in
the machine moving abruptly, leading to
serious injury or death.
If the levers or pedals no longer move
smoothly, supply grease.
Operating levers
1. Remove the lower mount section of the
boot (1) and turn it upwards.
2. Wipe off the old grease.
3. Supply grease to points (A) and (B).
4. Set the boot (1) back as it was.
