TROUBLESHOOTING

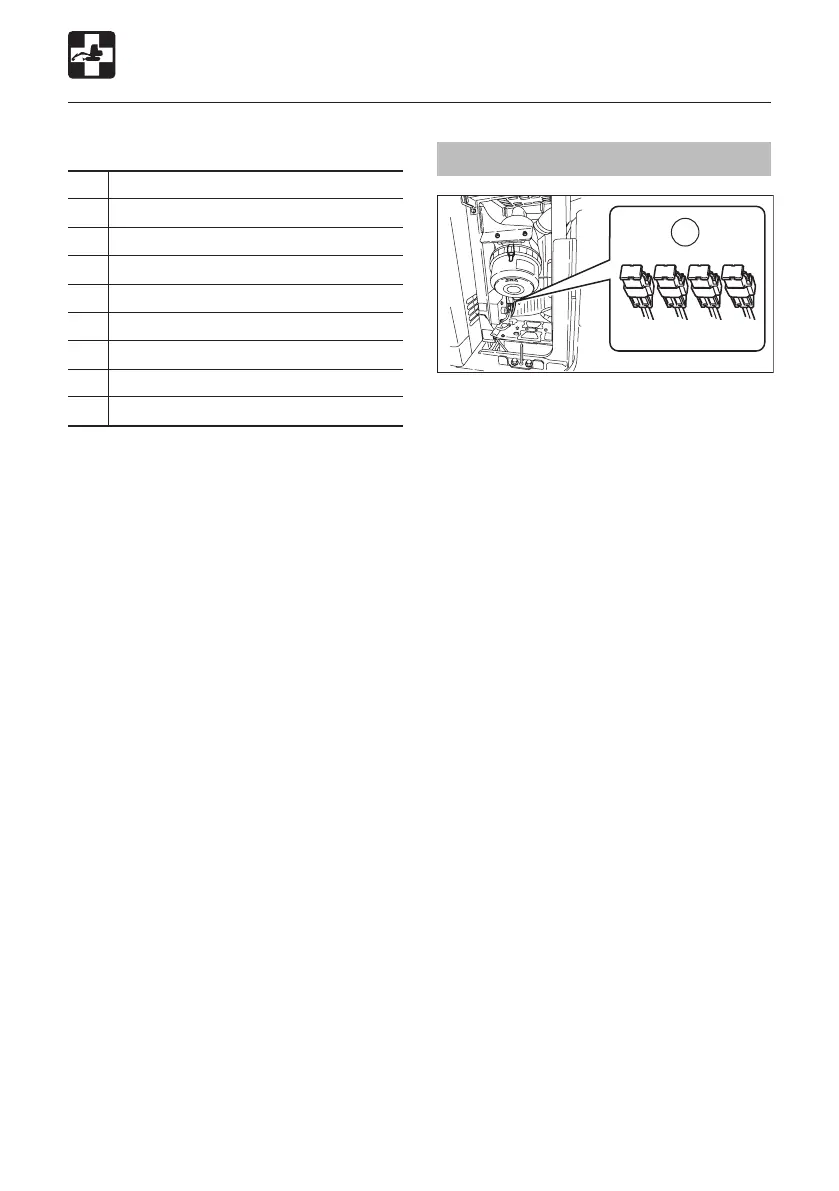

Inspecting the Fusible Link
If the power is not switched on after
turning the starter switch to the ON
position, the cartridge type fusible links
(1) might be blown open. Open the left
side cover and inspect. If the fusible link
is blown, please contact your dealer.
Supplement: A fusible link is a large piece
of fuse wiring which is mounted in a circuit
which carries a large electrical current. Link
a regular fuse, the fusible link protects the
electrical parts and wiring from damage due
to abnormally large currents.
If a Fuse Blows
Fuse Layout and Circuits Protected (2)
Protected circuit
10A
Hazard, Turn signal
10A
Buzzer
5A
Parking lights (R.H.)
5A
Parking lights (L.H.)
10A
Head lights (R.H.)
10A
Head lights (L.H.)
5A
Reserve
10A
Reserve
Capacity
To Next Page
