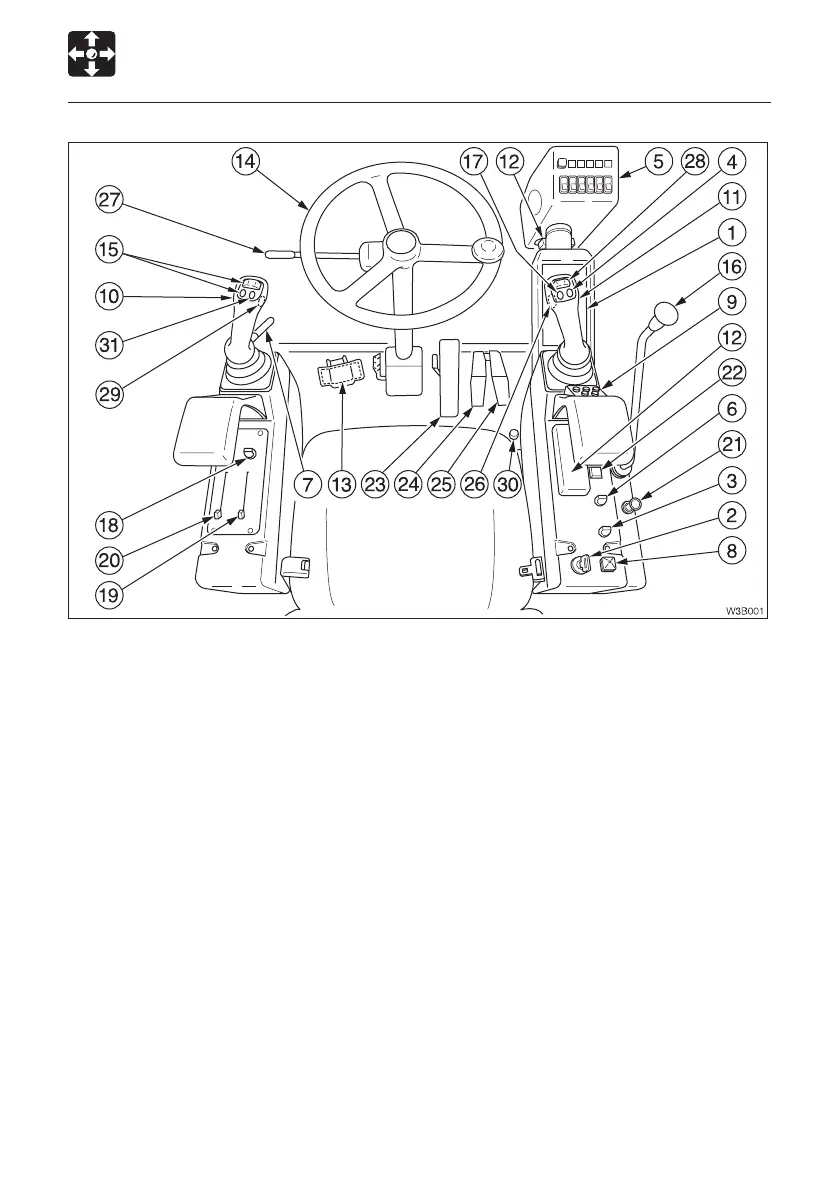

CONTROLS
1. Instrument cluster
2. Starter switch
3. Working light switch
4. Decel. button
5. Control console
6. Wiper switch
7. Safety lock lever
8. Slew speed button
9. Power mode buttons / Throttle buttons
10. Left operating lever
11. Right operating lever
12. Fuse box
13. Boom swing pedal
14. Steering wheel
15. First auxiliary hydraulic switches
16. Blade lever
17. Horn button
18. Fan switch (Heater)
19. Heater / Defroster switch
20. Ventilation / Circulation switch
21. Cigarette lighter
22. Engine Fault Warning Lamp
23. Brake pedal
24. Forward travel pedal
25. Reverse travel pedal
26. Selector button (2 or 4 Aux.)
27. Turn signal switch
28. Second / Fourth auxiliary hydraulic switch
(option)
29. Third auxiliary hydraulic button (option)
30. Third auxiliary hydraulic switch (option)
31. Selector button (2-Piece boom)
