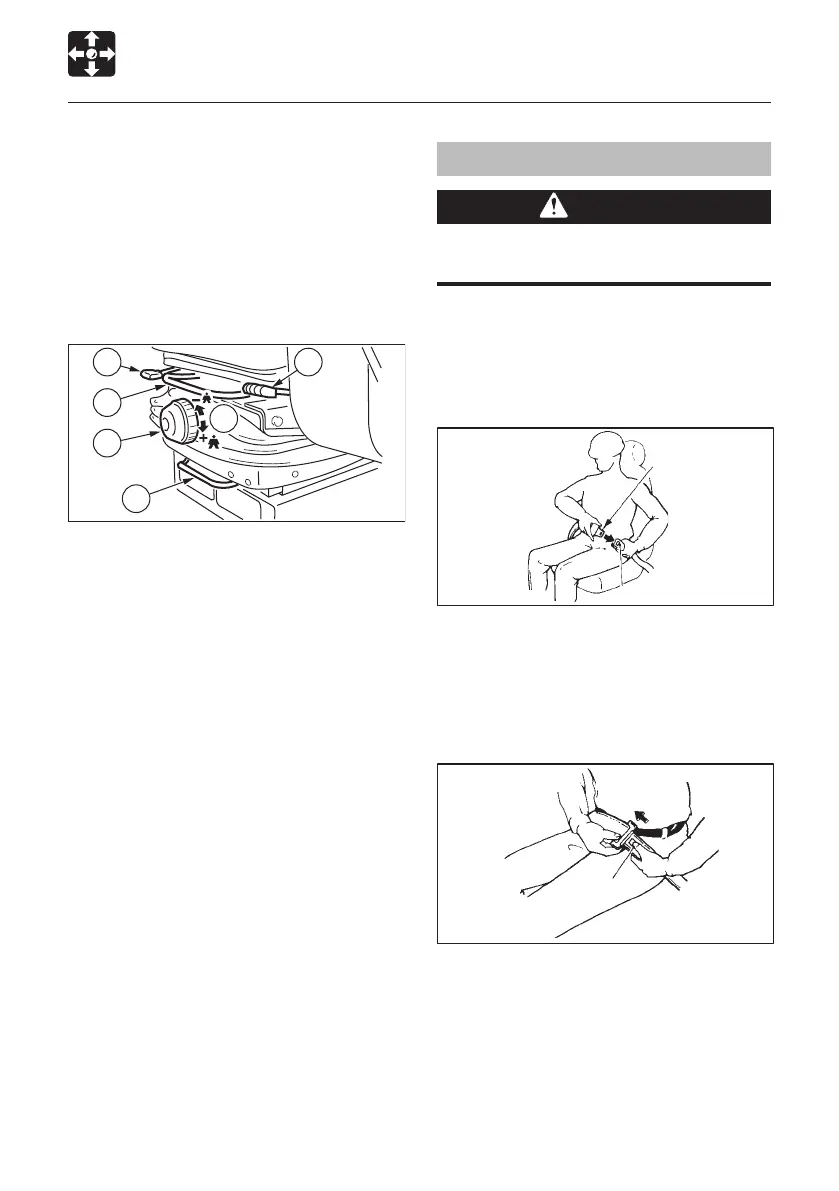

CONTROLS
(D) Fore-and-aft adjustment
1. Pull on lever (4) and slide the seat backward
or forward to bring it to the optimum
position for operating the machine.
2. Release the lever (4) at the desired position
and the seat will remain fixed there.
Adjustment stroke: 17 steps,160 mm (6.3
in.)
(E) Weight adjustment
1. Turn handle (5) and set it to indicate
the weight of the person to operate the
machine.
May be set to any value from 50 to 120 kg
(110 to 265 lbs.)
(F) Lever stand adjustment
1. Pull on lever (6) and slide the lever
stand backward or forward to bring it to
the optimum position for operating the
machine.
2. Release the lever (6) at the desired position
and the lever stand will remain fixed
there.
Adjustment stroke: 70mm (2.8 in.)
(G) Headrest adjustment
The position of the headrest (7) can be
adjusted in the up and down directions.
1. Grasp the headrest with both hands and
move it upwards or downwards.
Seat and Seat Belt
Seat Belt
CAUTION
Always fasten the seat belt securely before
starting the engine.
Fastening the seat belt
1. Adjust the seat to the optimum position for
operating, raise your torso, and sit back
firmly into the seat.
2. Pull the seat belt to the desired length.
3. Make sure that the belt is not twisted and
then insert the tongue plate (A) into the
buckle (B) of the seat belt until you hear a
clicking sound as it locks in place.
Releasing the seat belt
1. To remove the seat belt, simply press the
button (C) located on the buckle.
The seat belt is automatically stowed
away.
6
3
L3B013
2
5
4
E
E4B023
B
A
E4B024
C
