Front, rear, Ieft and right
This manual refers the front, rear, left and right
of the machine as seen when sitting in the
operator’s seat with the steering axle visible
to the front.
Designated operations
Use this machine primarily for the following
operations:
Excavating
Digging ditches
Digging side ditches
Leveling
Loading
Features
Isolation mounted cab minimizes vibration.
Low engine noise and exhaust emissions.
Electro over hydraulic control of auxiliary hydraulic circuit.
One touch engine deceleration button.
Two-speed slew allows the operator to slow the excavators slew speed.
Engine emergency stop / idle system.
Break-in period
When the machine is new, heed the instructions below when operating the machine for the first
100 hours (as indicated on the hour meter).
Using a new machine roughly without breaking it in will lead to quicker deterioration of machine
performance and may shorten the machine’s service life.
Warm up the engine and hydraulic oil sufficiently.
Avoid heavy loads and rapid operations. Operate with a load of about 80% the maximum
load.
Do not start up, accelerate, change directions, or stop abruptly unless necessary.

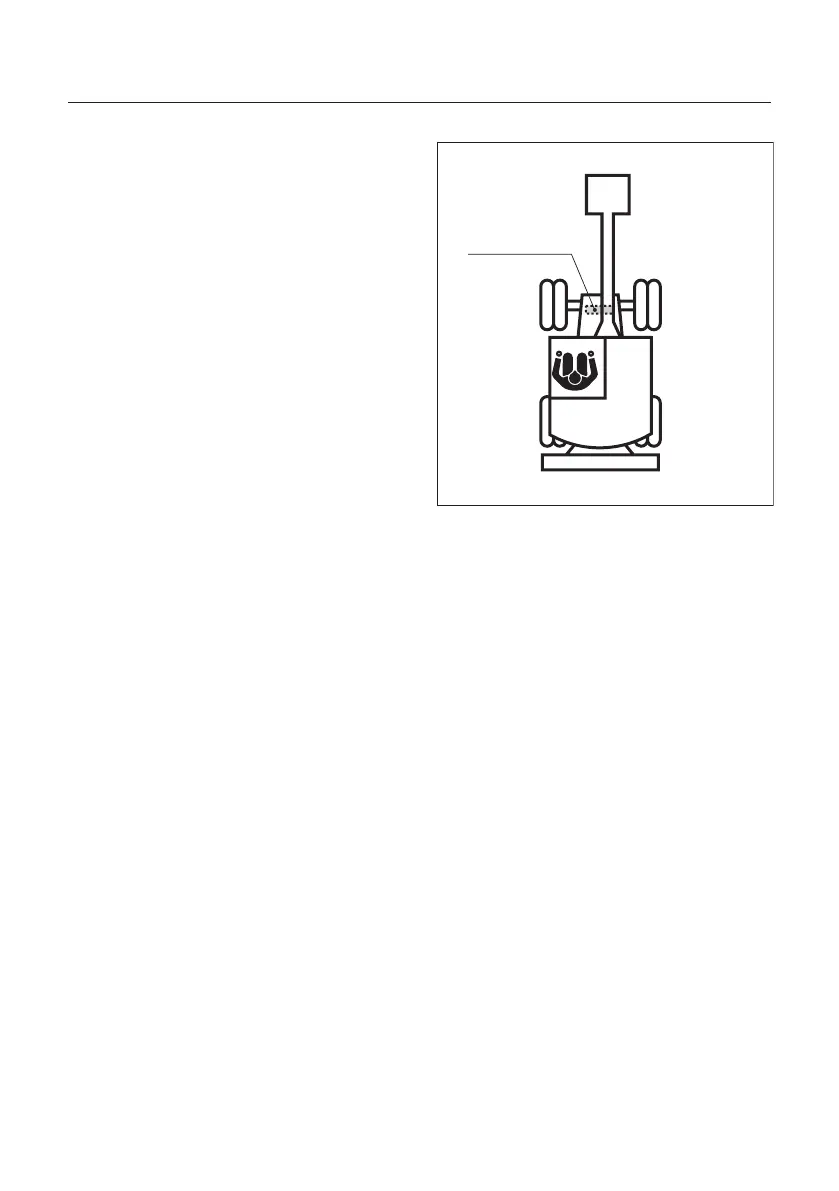

MACHINE DESCRIPTlON
FRONT
Steering Axle
LEFT RIGHT
REAR
W2A002E
To Next Page
