CONTROLS

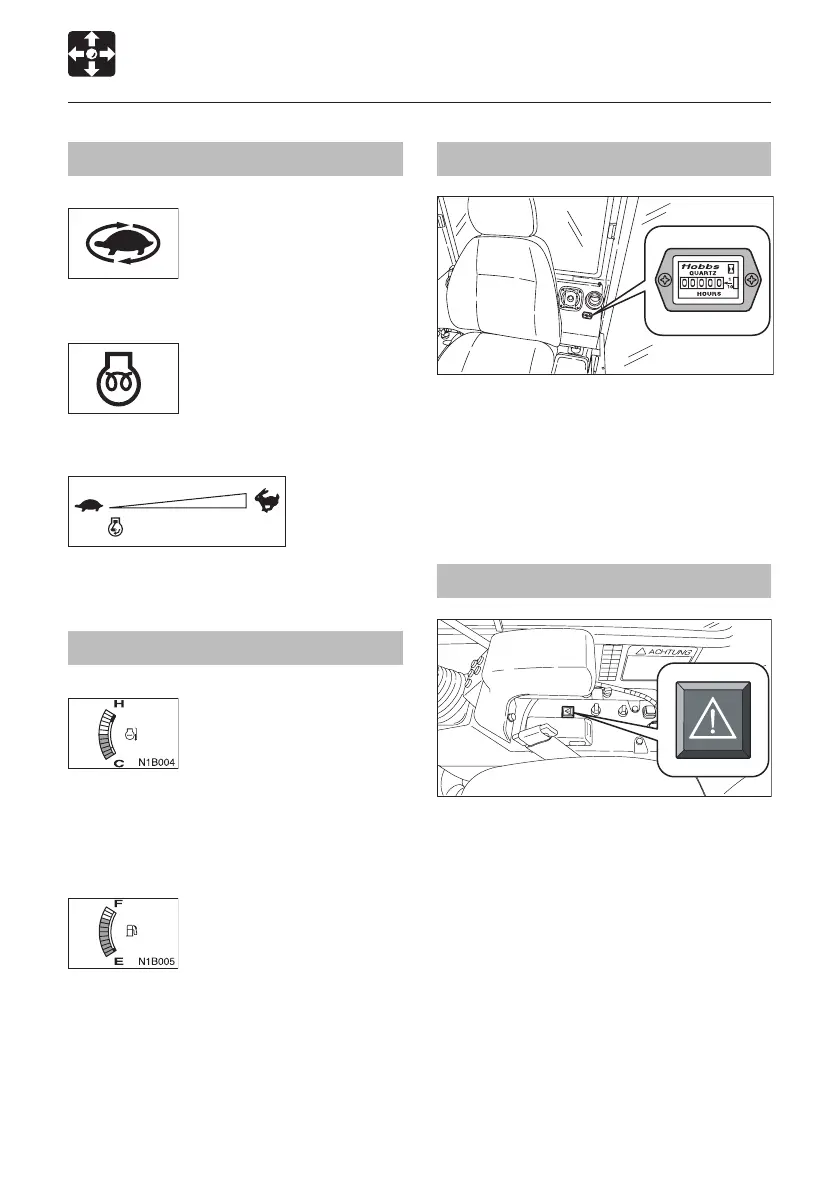

Instrument Cluster
Indicators
7. Slow Speed Slew Lamp
This lamp lights when slow
speed slew switch pressed,
the slew speed decreases.
8. Glow Lamp
This lamp turns off when
en g i n e preheating is
completed.
9. Power Mode Lamp
These lamps
i n d i c a t e s
the engi ne
speed.
Meters
10. Water Temperature Gauge
This gauge indicates the
temperature of the engine
coolant water.
The needle should be within
the green range during machine operation.
The red range indicates overheating.
11. Fuel Gauge
This gauge indicates the
amount of fuel in the tank.
Be sure to top off the tank
before running out of fuel.
Hour Meter
This displays the total engine running time
in hours.
The rightmost digit indicates tenths of hours (6
minutes).Set the inspection and maintenance
intervals according to the time displayed on
the hour meter.
Engine Fault Warning Lamp
IMPORTANT: If the lamp flashes, check
the flashing pattern, stop the engine and
then contact a Takeuchi sales or service
outlet for help. Do not run the engine
while the lamp is flashing. Otherwise, the
specified engine performance cannot
be obtained or more serious error can
occur.
When the starter switch is turned to the ON
position, the lamp lights up and stays on for
2 seconds and then goes out.
If a problem rises in the engine or controls, the
lamp starts flashing using the corresponding
flashing pattern to the type of problem.
