OPERATION
Lever Pattern (JCB Pattern)
WARNING
� Be careful to check which pattern of lever control arrangement you are operating with
before beginning operations.
�
The explanations in this manual are for the ISO pattern.

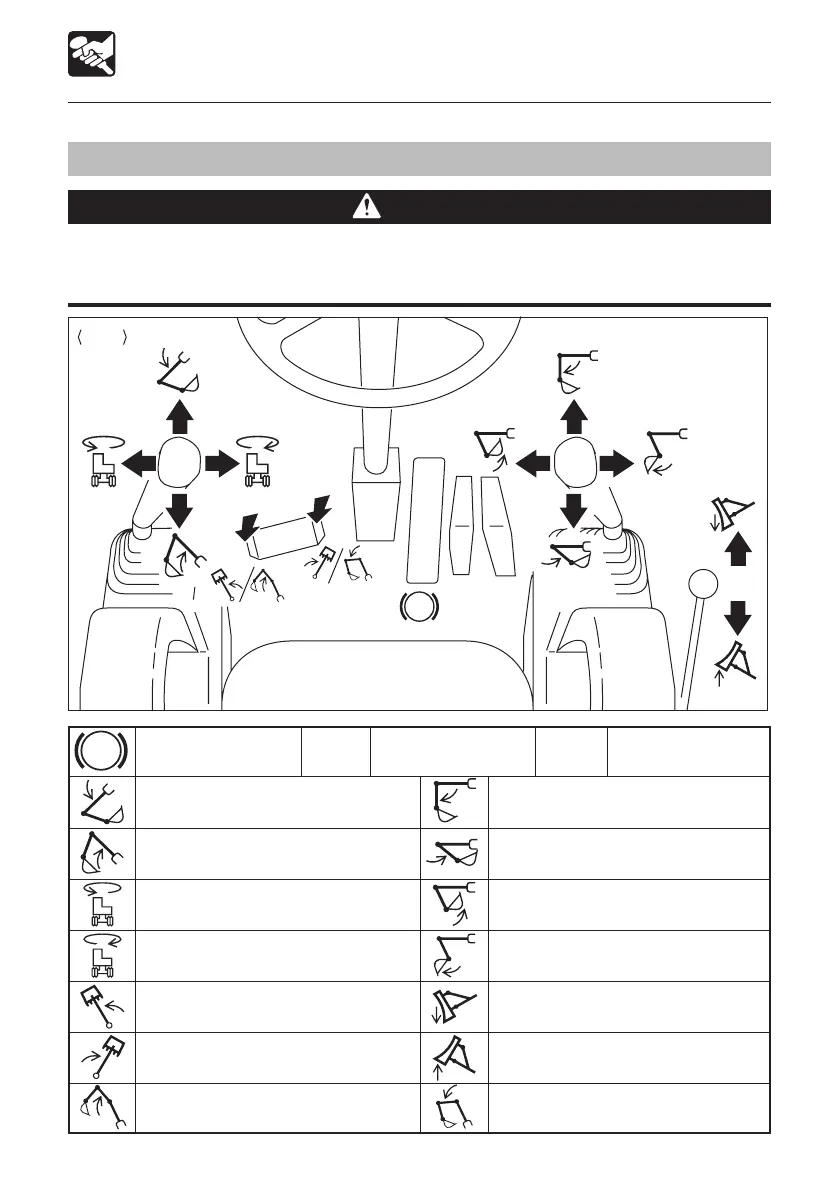

Machine Operation
W2D006
JCB
F R
Boom Lower
Boom Raise
Upperstructure Left Slew
Upperstructure Right Slew
Boom Swing Left
Boom Swing Right
Arm Out
Arm In
Bucket Load
Bucket Dump
Dozer Blade Lower
Dozer Blade Raise
Intermediate Boom Raise
(2-piece boom)
Reverse TravelForward Travel
Brake
Intermediate Boom Lower
(2-piece boom)
F
R
