CONTROLS

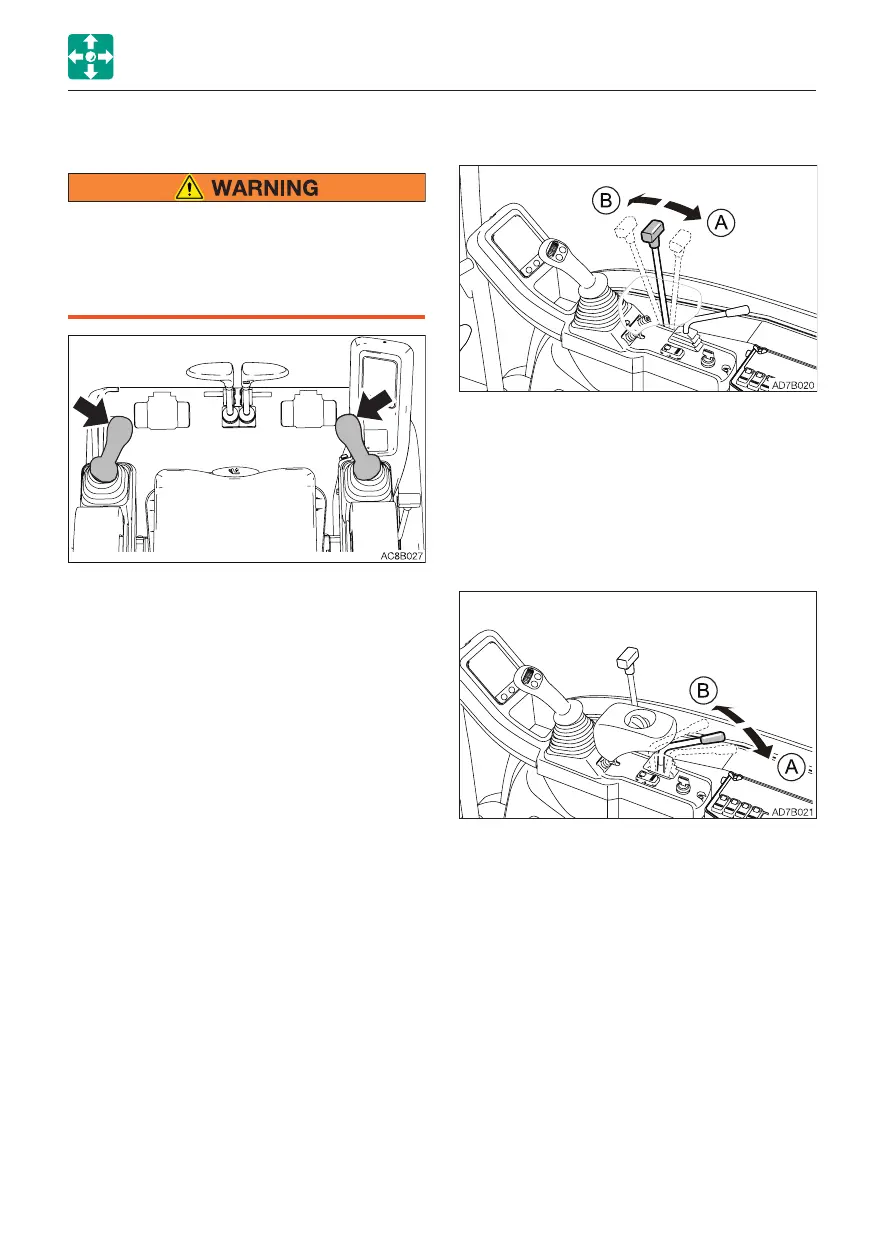

OPERATING LEVERS
• Before starting operation, carefully
check which lever pattern you are going
to use.
• It is described using the ISO pattern in
this manual.
Use these levers to operate the boom, arm,
bucket and upperstructure.
Refer to “Lever pattern” on pages 3-6 and
3-7.
Refer to “Operating the working equipment”
on pages 3-16 and 3-17.
BLADE LEVER
LEVERS AND PEDALS
Use this lever to operate the dozer blade.
(A) .......Blade up
(B) ......Blade down
Refer to “Operating the dozer blade” on
page 3-17.
CRAWLER WIDTH SWITCH LEVER
Use this lever to switch between the crawler
widths.
A: Extended
B: Retracted
Refer to "Switching the crawler width" on
page 3-10.
