6-8
TROUBLESHOOTING
INSPECTING THE FUSIBLE LINK
IF A FUSE BLOWS

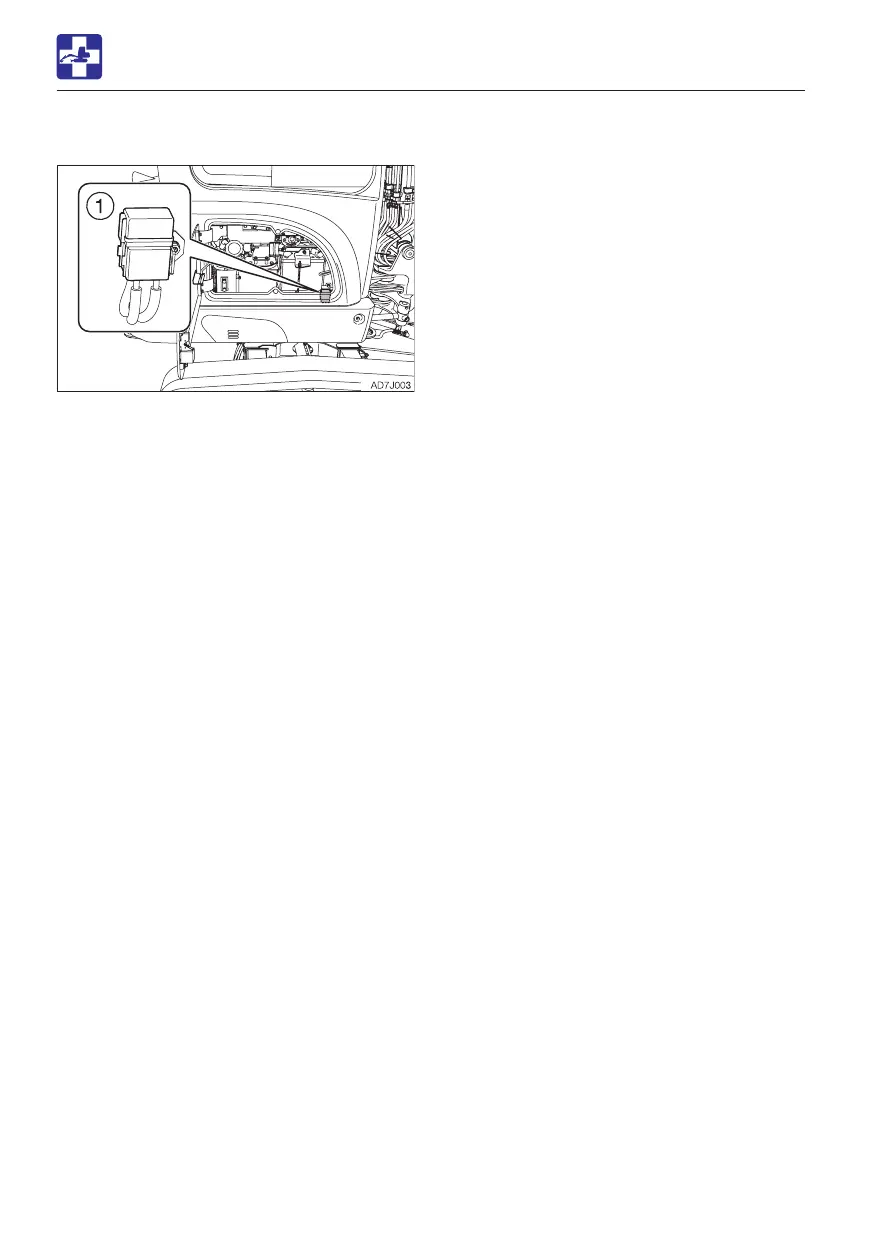

If the machine is not turned on after turning
the starter switch to the ON position, the
cartridge type fusible link (1) is likely blown.
Open the maintenance cover and inspect. If
the fusible link is blown, please contact your
sales or service dealer.
Note: Fusible links are large type fuses used
in high current applications. Like a regular
fuse, they act as fuses by protecting the
electric components and wirings from
damage caused by excessive current draw.
