Takeuchi TB225 User Manual

6-7
TROUBLESHOOTING

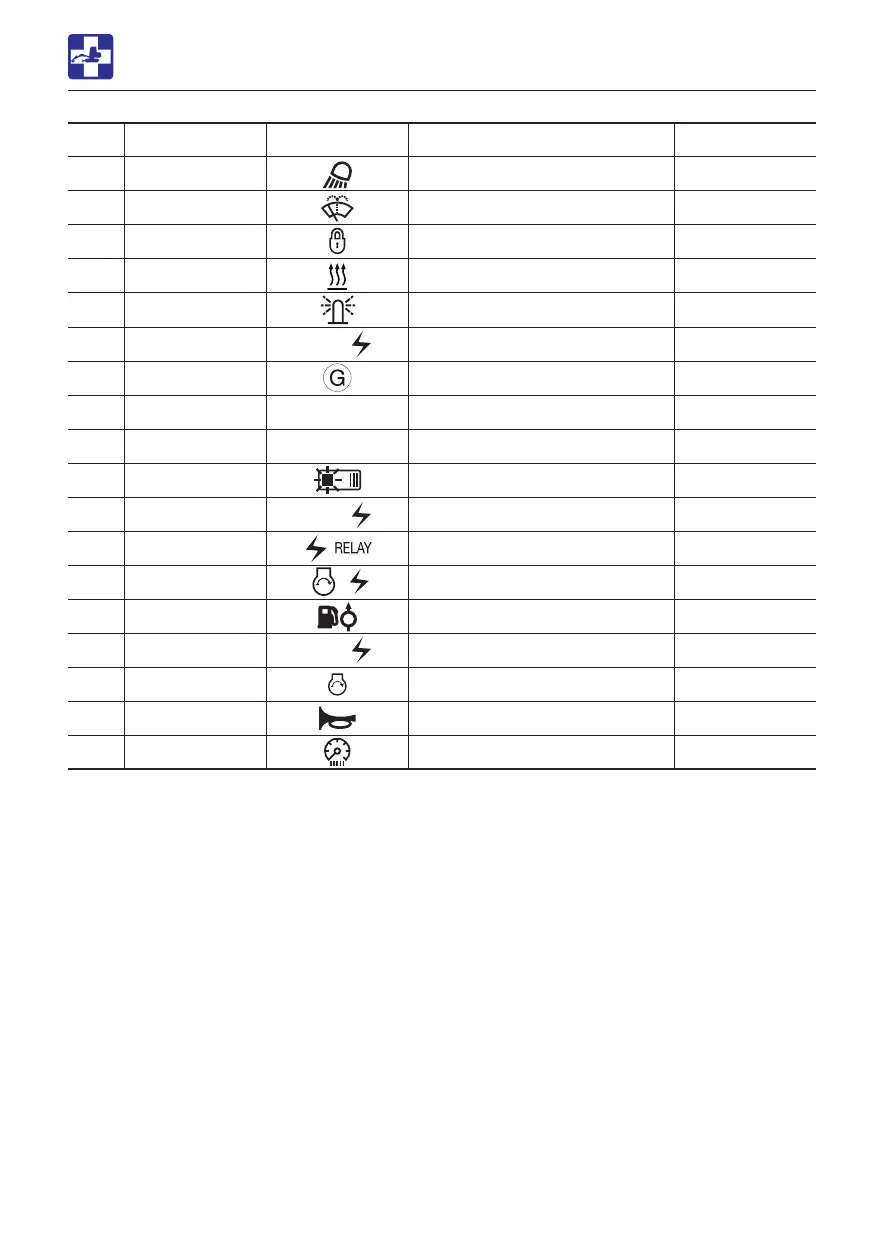

IF A FUSE BLOWS
No. Capacity Symbol Protected circuit Fuse No.
1 15A Lights F1
2* 15A Wiper F2
3 10A Safety lock lever F3
4* 10A Heater F4
5 15A Beacon F5
6 15A CAB 00 Cab F6
7 10A Alternator relay F7
8 15A OPT Option F8
9 − F9
10 5A Switch lighting F10
11 20A CTL 00 Controller power supply F11
12 10A ACC relay F12
13 30A Engine F13
14 5A Feed pump F14
15 5A CTL 00 Controller power supply F15
16 20A Starter switch F16
17 10A Horn F17
18 10A
Cluster F18
*: Only for cab

Takeuchi TB225 Specifications

General

Engine Make	Yanmar
Max Dig Depth	2, 580 mm
Bucket Capacity	0.03 - 0.11 m3
Max Reach	7, 010 mm
Max Digging Depth	3, 870 mm
