Takeuchi TB225 User Manual

8-7
OPTIONS

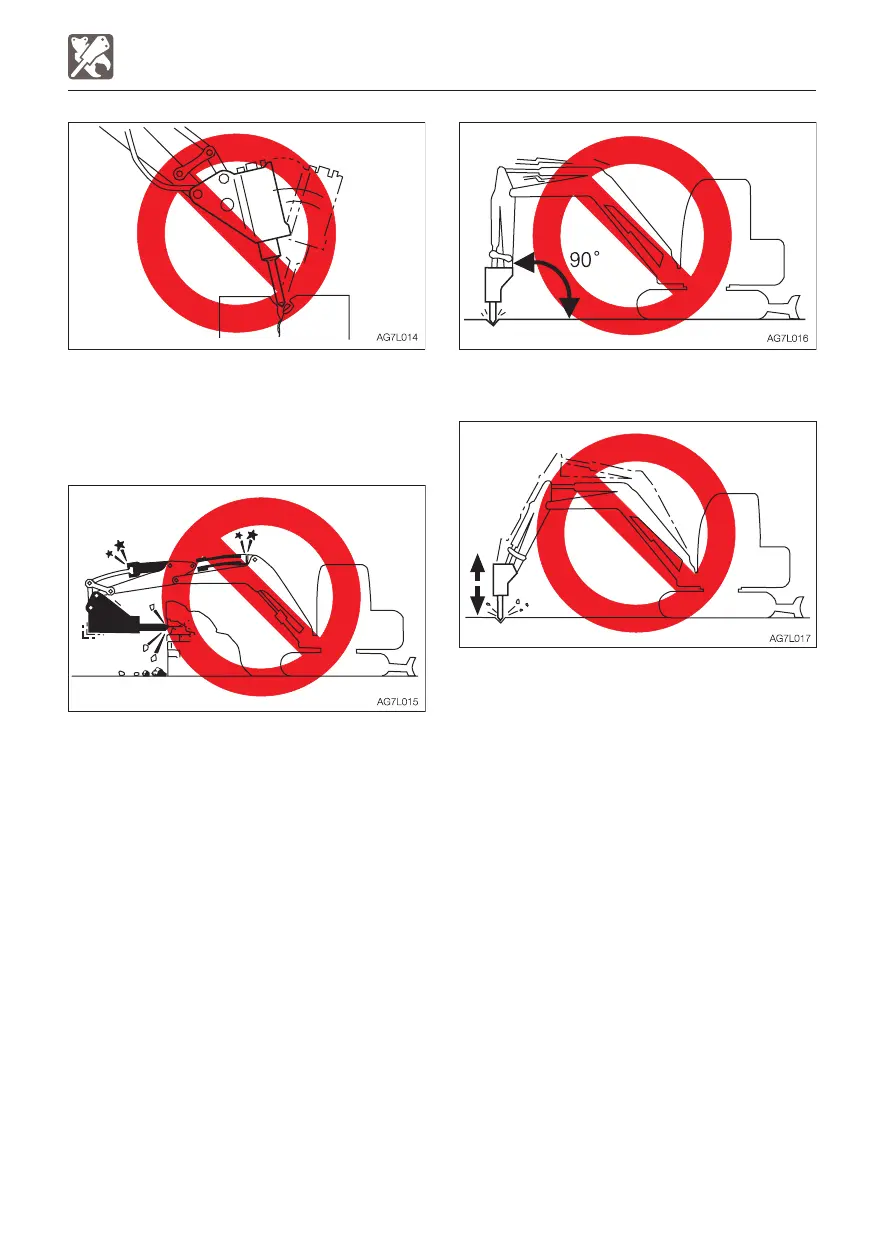

• Do not pound with the cylinder fully
extended or retracted (at the stroke end).
Leave a margin of at least 50mm(2 in).
HYDRAULIC BREAKER
• Do not pound with the arm placed
perpendicular to the ground surface.
• Do not drop the breaker itself on the object
to be broken in order to break it.
• Do not move objects to be broken or rocks
with the breaker itself.
• Slew the machine occasionally to cool the
engine.
• If a hydraulic hose is vibrating abnormally,
nitrogen gas may be leaking from the
accumulator. Ask for an inspection early.
• Do not pry with the chisel or do not pry
while pounding.
• Do not move the chisel while pounding.
• Do not pound continuously for over 30
seconds on the same surface.

Takeuchi TB225 Specifications

General

Engine Make	Yanmar
Max Dig Depth	2, 580 mm
Bucket Capacity	0.03 - 0.11 m3
Max Reach	7, 010 mm
Max Digging Depth	3, 870 mm
