Takeuchi TB225 User Manual

2-3
CONTROLS

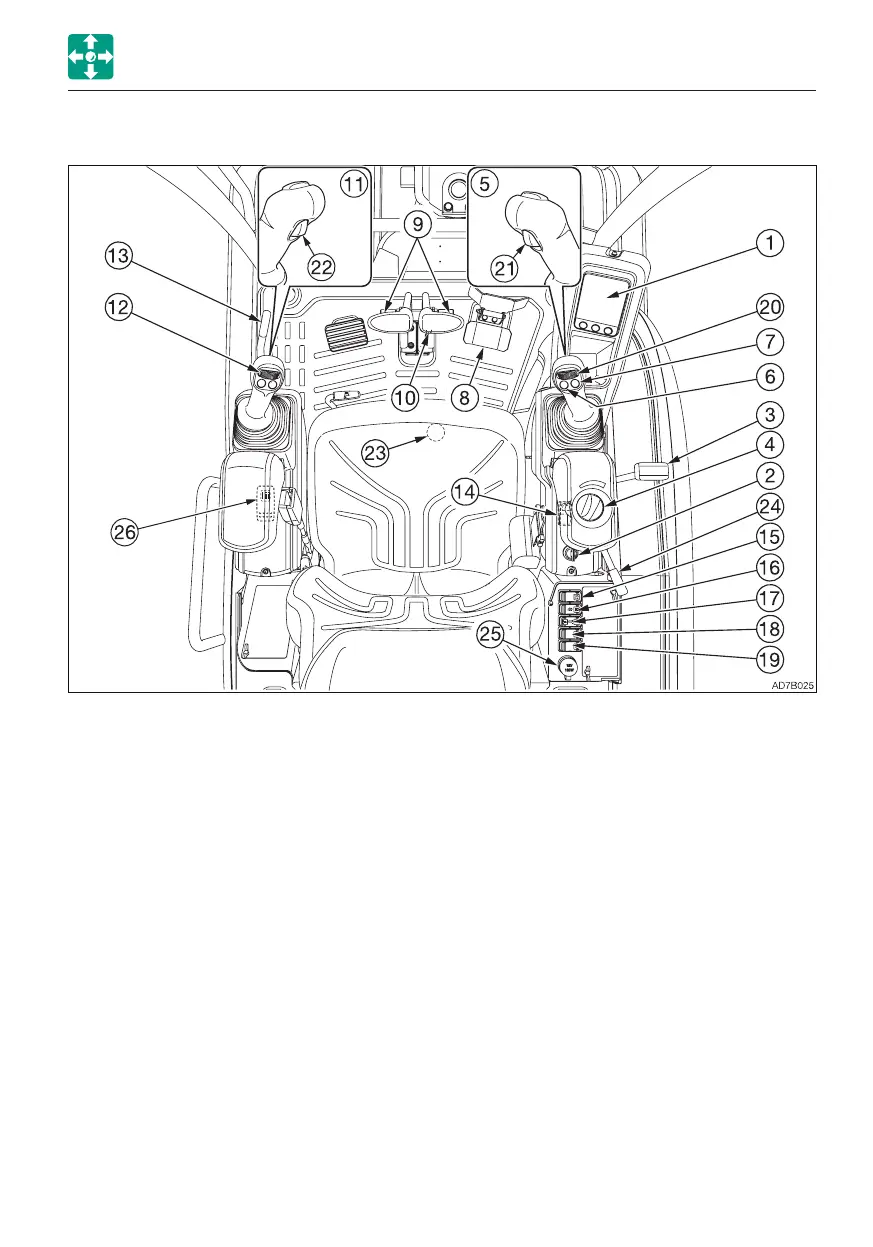

NAMES OF COMPONENTS (CANOPY)
1. Instrument cluster
2. Starter switch
3. Blade lever
4. Throttle controller
5. Right operating lever
6. Horn button
7. Deceleration button
8. Boom swing pedal
9. Travel levers/pedals
10. Travel speed button
11. Left operating lever
12. Auxiliary 1st switches
13. Safety lock lever
14. Light switch
15. Automatic deceleration switch
16. Detent mode switch
17. Auxiliary 1st auto tank switch*
18. Lift overload warning switch*
19. Beacon lamp switch
20. Auxiliary 2nd/4th switch*
21. Auxiliary 2/4 select button*
22. Third auxiliary hydraulic button*
23. Third auxiliary hydraulic switch*
24. Crawler width switch lever
25. Power supply socket
26. Third auxiliary hard-lock switch*
*: Subject to the specifications or optional products selected
