Takeuchi TB225 User Manual

2-5

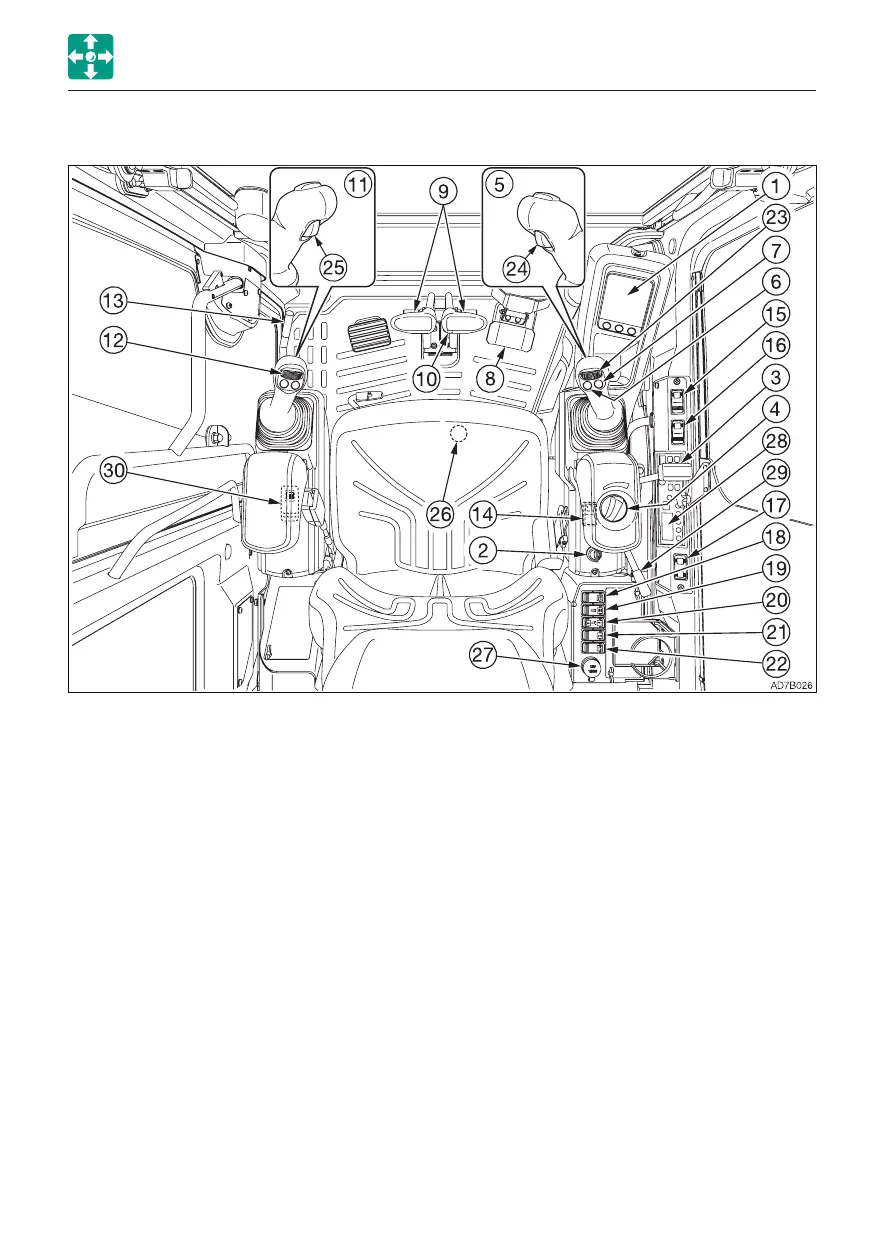

CONTROLS
1. Instrument cluster
2. Starter switch
3. Blade lever
4. Throttle controller
5. Right operating lever
6. Horn button
7. Deceleration button
8. Boom swing pedal
9. Travel levers/pedals
10. Travel speed button
11. Left operating lever
12. Auxiliary 1st switches
13. Safety lock lever
14. Light switch
15. Wiper switch
NAMES OF COMPONENTS (CAB)
16. Washer switch
17. Heater switch
18. Automatic deceleration switch
19. Detent mode switch
20. Auxiliary 1st auto tank switch*
21. Lift overload warning switch*
22. Beacon lamp switch
23. Auxiliary 2nd/4th switch*
24. Auxiliary 2/4 select button*
25. Third auxiliary hydraulic button*
26. Third auxiliary hydraulic switch*
27. Power supply socket
28. Radio*
29. Crawler width switch lever
30. Third auxiliary hard-lock switch*
*: Subject to the specifications or optional products selected

Takeuchi TB225 Specifications

General

Engine Make	Yanmar
Max Dig Depth	2, 580 mm
Bucket Capacity	0.03 - 0.11 m3
Max Reach	7, 010 mm
Max Digging Depth	3, 870 mm
