144

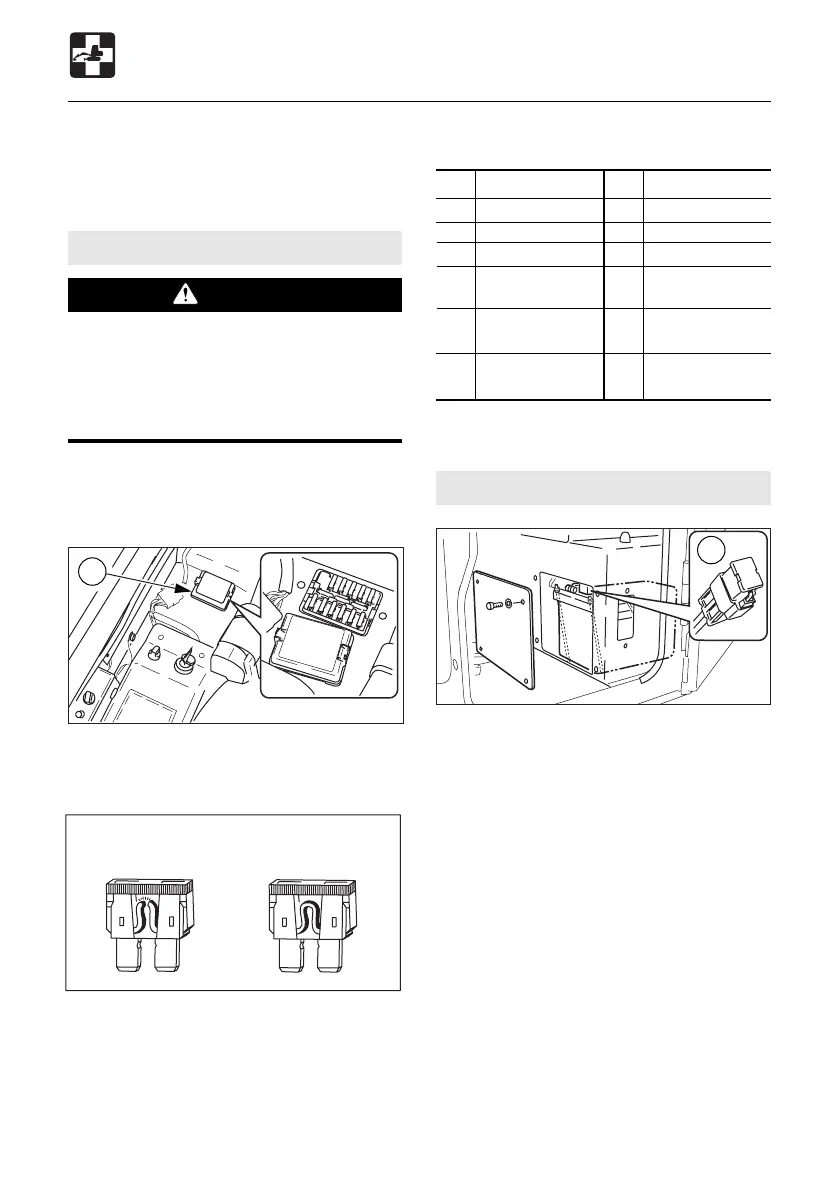

TROUBLESHOOTING
If a light does not turn on or the electric
system does not operate, a fuse may be
blown. Inspect the fuses.
Inspecting and Replacing the Fuse
If the fuse blows as soon as it is replaced,
there is a problem with the electric
system. Continued use may lead to fire.
Consult a Takeuchi sales or service
outlet.
1.Turn the starter key to the OFF position
and stop the engine.
2.Open the fuse box cover (1).
3.Inspect for any blown fuses.
4.If a fuse is blown, replace it with a spare
fuse of the same capacity.
Inspecting the Fusible Link
If the power is not switched on after turning
the starter switch to the ON position, the
cartridge type fusible link (1) might be blown
open. Open the cover located at below of
the left operating lever and inspect. If the
fusible link is blown, please contact your
dealer.
Supplement: A fusible link is a large piece
of fuse wiring which is mounted in a circuit
which carries a large electrical current. Link
a regular fuse, the fusible link protects the
electrical parts and wiring from damage due
to abnormally large currents.
If a Fuse Blows
Fuse Layout and Circuits Protected
Capacity Capacity
Protected circuit Protected circuit
20A Decel.(B)
30A
10A High speed travel
10A Instrument cluster
Feed pump
15A Heater
Radio
20A Wiper
Cigar lighter
15A Solenoid A, B
20A Light
20A Decel.(ACC)
Safety lock lever
15A Reserve
30A Stop solenoid
WARNING
Blown Normal
J1J001
1
E4J007
1
F4J001
To Next Page
