36
CONTROLS

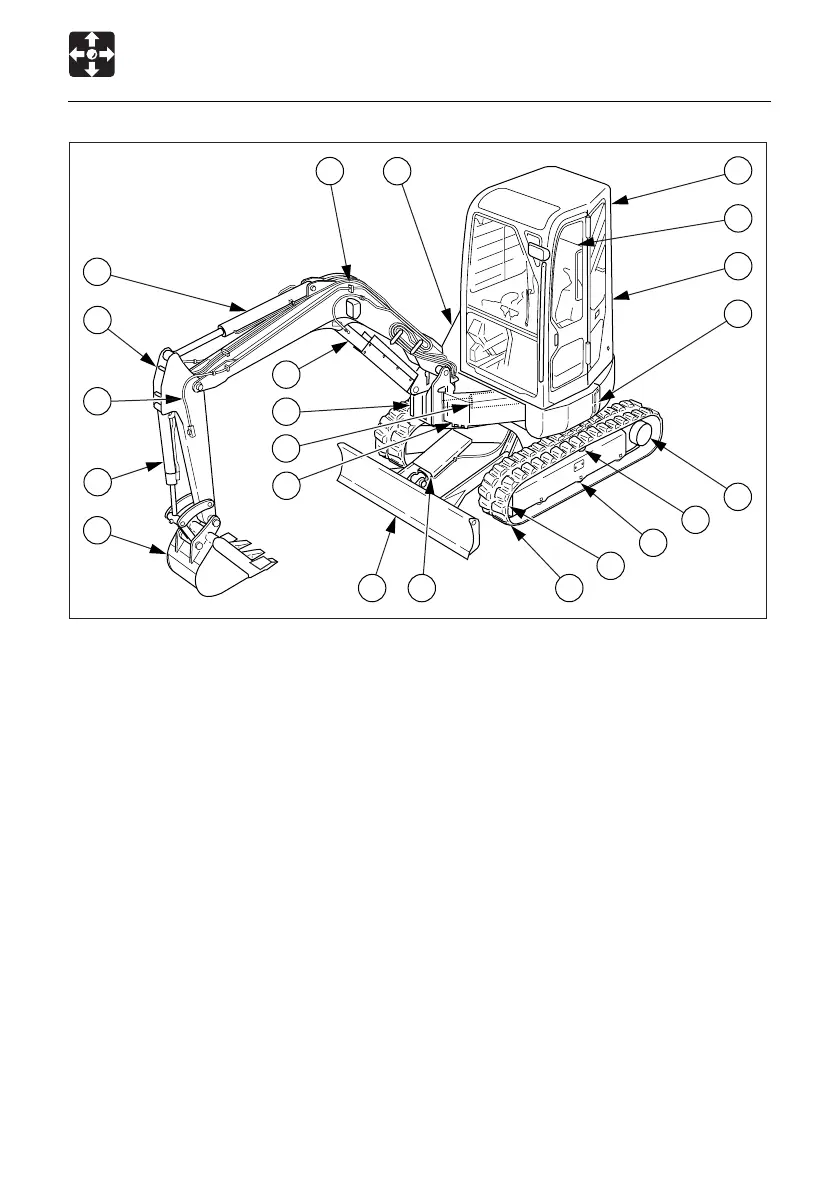

Names of Components
Upperstructure
1. Cab
2. Seat
3. Engine hood
4. Fuel tank
5. Hydraulic tank
Undercarriage
6. Crawler belt
7. Idler
8. T
rack roller
9. Carrier roller
10. T
ravel motor
W
orking equipment
1
1. Bucket
12. Bucket cylinder
13. Arm
14. Arm
cylinder
15. Boom
16. Boom cylinder
17. Boom bracket
18. Offset cylinder
19. Left link arm
20.
Auxiliary hydraulic lines
21. Dozer blade
22. Blade cylinder
20
13
12
11
22
21
16
4
17
15
14
1
2
3
5
10
19
18
9
7
6
8
F4B014
