CONTROLS

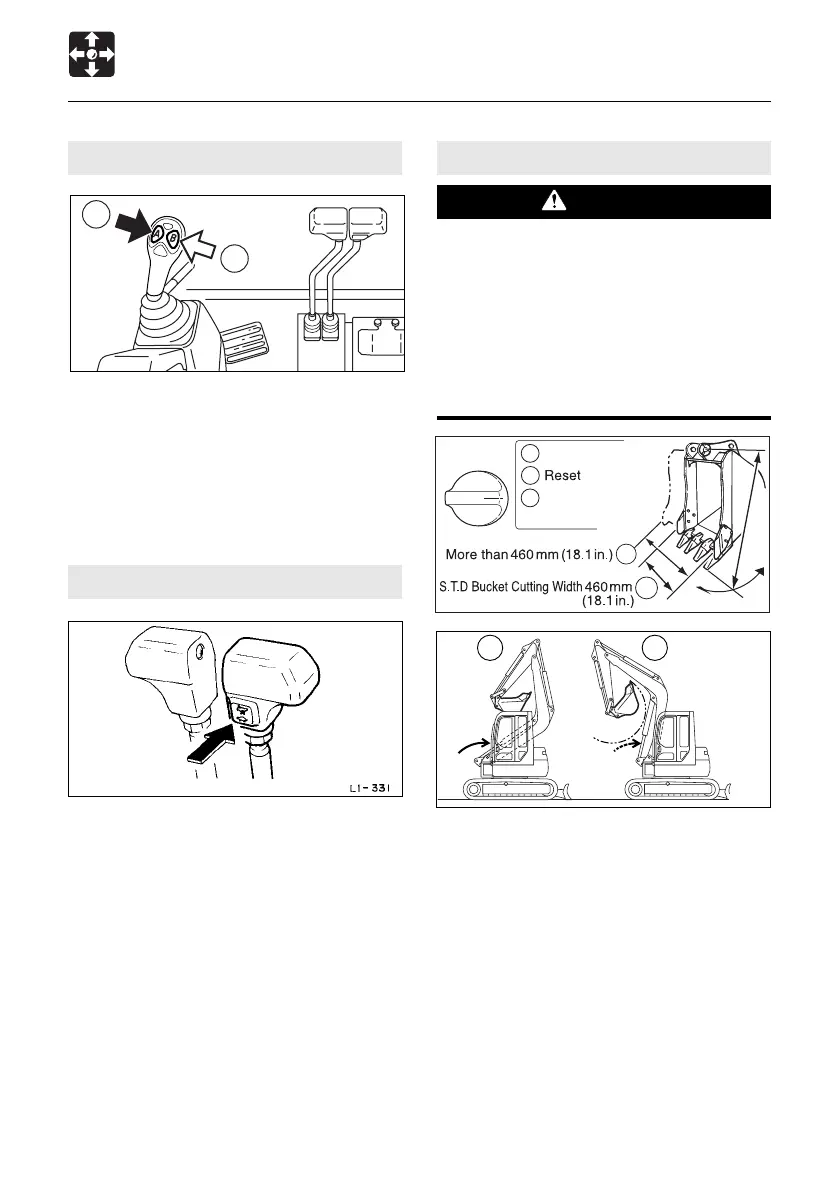

Switches
Auxiliary Hydraulic Switches
Press those switches to control the flow of
the oil in the auxiliary hydraulic circuit.
(A) .......... Hydraulic oil flows to left auxiliary
line
(B) .......... Hydraulic oil flows to right
auxiliary line
Travel Speed Switch
Press this switch to set the travel speed to
2nd speed (high speed). Press again to
return to 1st speed (low speed).
B
A
J1B009
WARNING
Attachment Interference Switch
¡Failure to properly set the Attachment
Interference Switch can result in
equipment damage, serious injury, or
death.
¡Ensure that all buckets used in the
standard position are no longer than a
standard bucket when measured from
pin to tooth.
Modes of Operation
S... Standard bucket attachment less than
460mm (18.1 inches) wide
R... Reset ..... Select the appropriate
attachment width
M..Bucket attachment more than 460mm
(18.1 inches) wide or any other
approved attachment
Refer to page 75 “Attachment Interference
Switch / Interference Prevention System”.
M
S
R
S
M
F4B017E
660mm(26 in.)
M
S
F4B018
