51

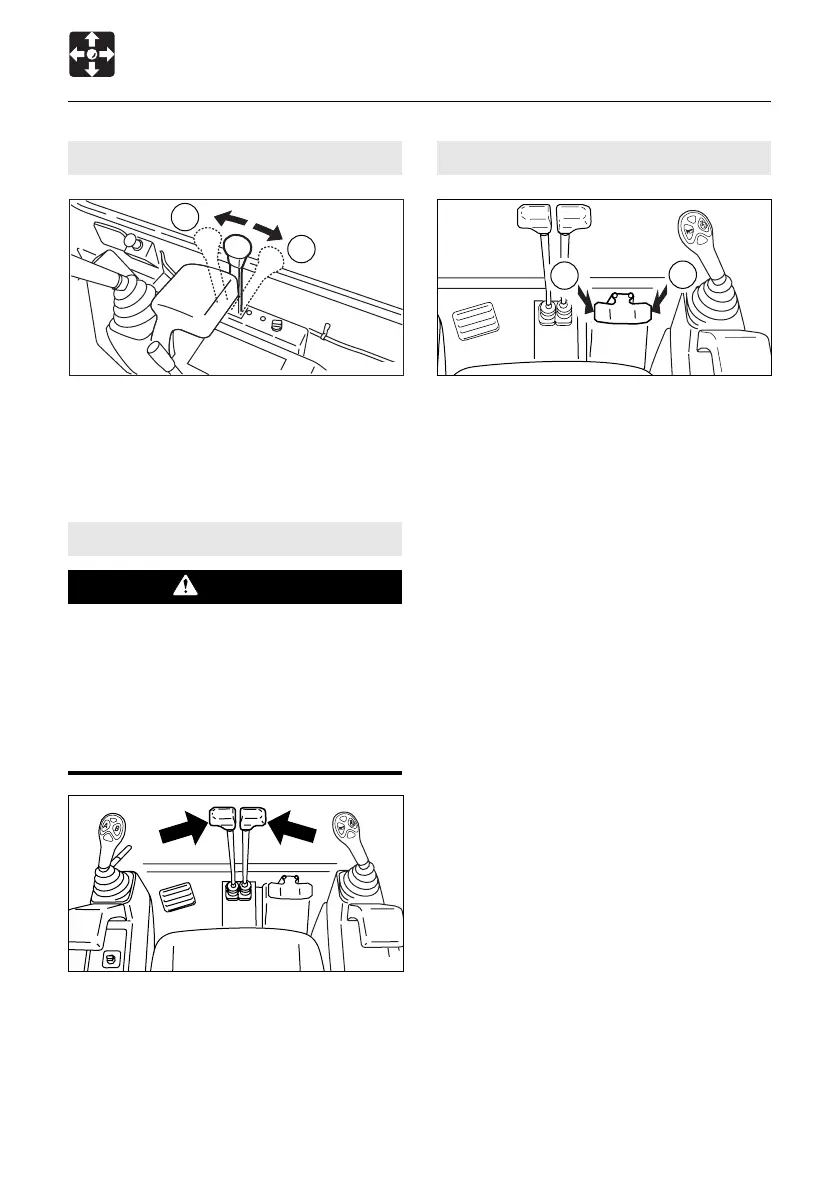

CONTROLS
Levers and Pedals
Offset Pedal
Use this pedal to operate the boom offset.
(A) .... Boom offset right
(B) .... Boom offset left
Refer to page 74 “Operating the Boom
Offset”.
Blade Lever
Use this lever to operate the dozer blade.
(A) .... Blade up
(B) .... Blade down
Refer to page 74 “Operating the Dozer
Blade”.
Travel Levers
Before operating the travel levers, check
to make sure that the dozer blade is to
the front of the operator's seat. BE
AWARE that when the dozer blade is to
the rear of the operator's seat, the travel
levers operate in the opposite direction
to when the dozer blade is in the front.
Use these to move forward and backward
and to change directions.
Refer to page 70 “Operating the Travel
Levers” .
WARNING
B
A
J1B003
J1B011
J1B012
B
A
To Next Page
