Talsa H26 - 6 Operating Instructions

H PISTON FILLERS/STUFFERS
MANUAL
EN-24

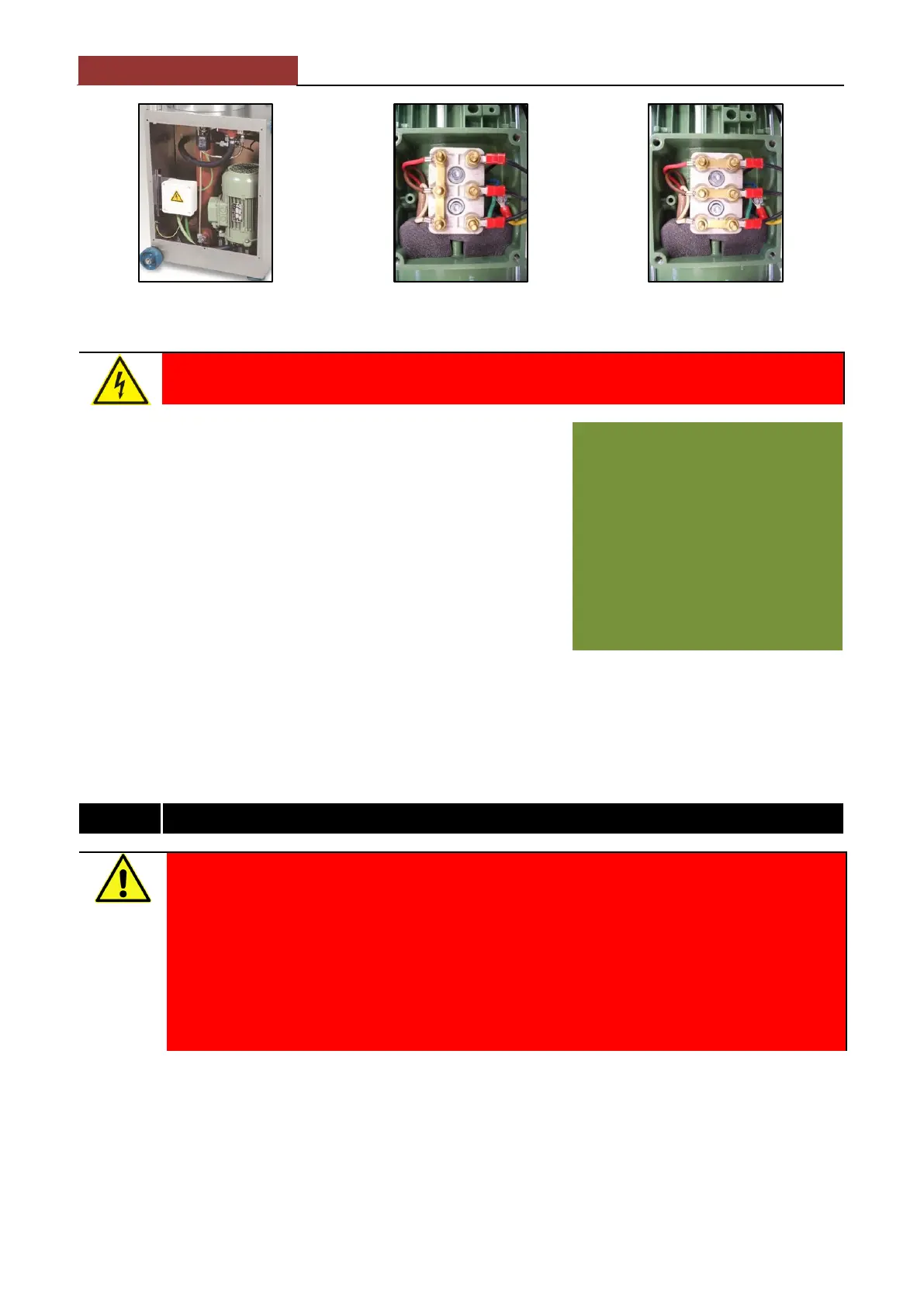

IMG. 7: Unit’s base panel removed
IMG. 8: Position for 3x400/380 V
IMG. 9: Position for 3x230/220 V
5.5 Checking the Turning Direction of the Three-Phase Motor
Electrical Hazard:
Only a qualified electrician MUST carry out this operation.
After verifying that the stuffer/filler is compatible with the electrical wiring at the
installation site, proceed as follows:
1) Plug the machine to the power source.
2) In the case of the “i” models, turn the manual power switch to the 1-START
position. Skip this step for “a” models.
3) Push the knee lever firmly forward.
If the phases are correctly adjusted, the piston will rise.
If the phases are incorrect, the pump will not work properly; the motor will make
noise, but the piston will not move. In such is the case release the knee lever
immediately, turn the manual switch to the off position (“I” models only) and
unplug the machine. A qualified electrician must interchange two of the three
phases in the plug.
Important:
 The electric cord’s wiring is normally
as follows: the PHASE(S) are three
black, numbered wires; the GROUND is
a bi-colored Yellow/Green or Green.
 Make sure that the air holes located at
the base of the barrel are not
obstructed otherwise the piston will not
function properly.
The plug connected to the machine’s power cord must be suitable for use with this machine and conform to local electrical
standards
Knee lever position and piston action:
 When the knee lever is pushed forward, the piston should rise.
 When the knee lever is pulled back, the piston should descend.
 The lever automatically snaps to the central position when no pressure is applied to it. In this position the piston stops and remains
in place.
6.
OPERATING INSTRUCTIONS
Warning:
 This machine is not designed for constant, uninterrupted use at high pressure; it is built to run
intermittently to allow dissipation of the heat produced during use. The amount of heat generated will also
depends on the consistency of the food dough being processed.
 Before operating the unit, read this manual thoroughly and pay particular attention to the potential
operating hazards.
 Test de machine when it is empty before using it with food.
 Be careful not to crush or pinch your hands, fingers, etc., on the barrel while opening and closing the lid
or between the lid and the piston while raising the piston when the lid is not completely open.
