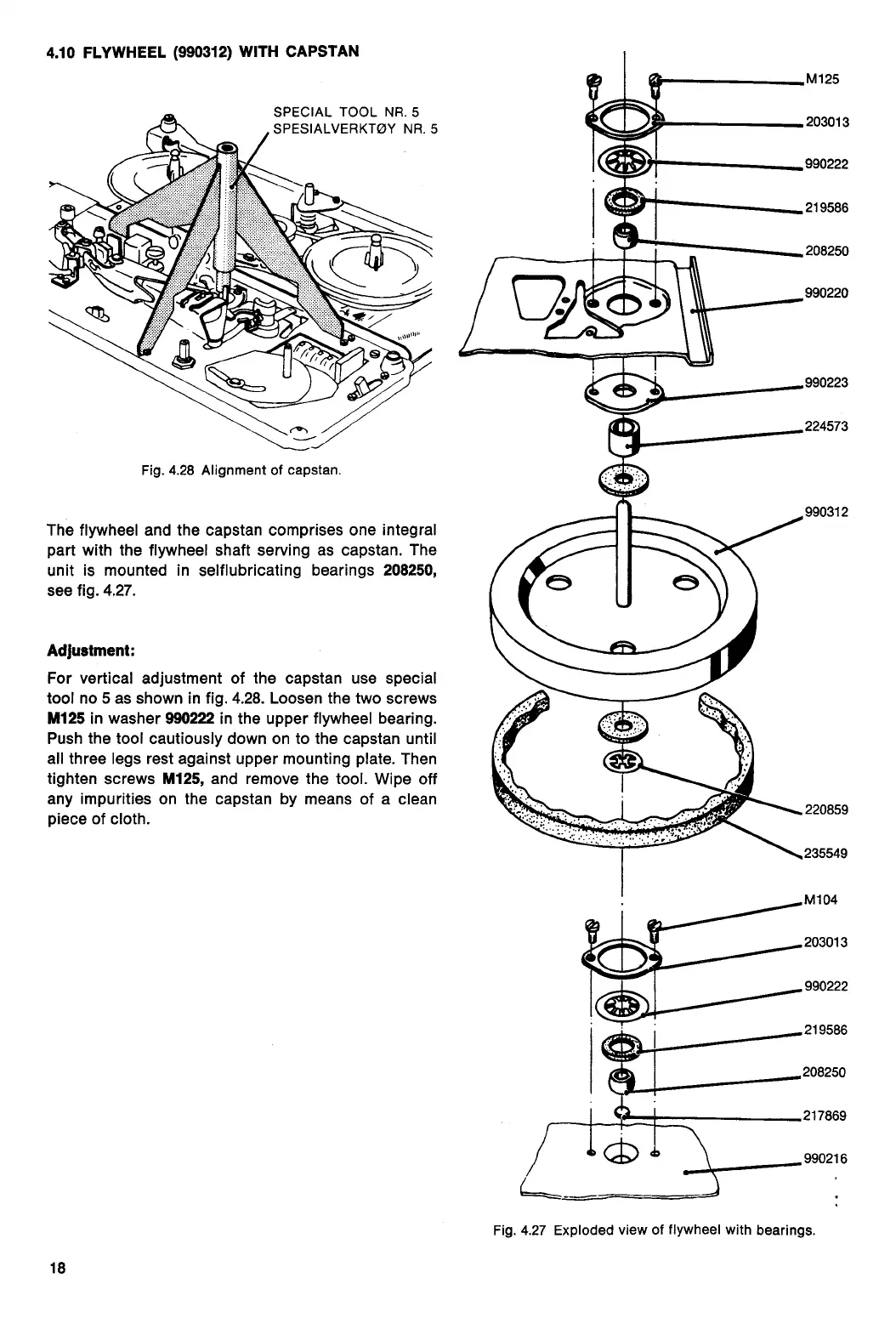

4.10 FLYWHEEL (990312) WITH CAPSTAN
SPECIAL TOOL NR. 5
SPESIALVERKTOY NR. 5
M125
203013
990222
219586
208250
990220
990223
224573
Fig. 4.28 Alignment of capstan.
990312
The flywheel and the capstan comprises one integral
part with the flywheel shaft serving as capstan. The
unit is mounted in seiflubricating bearings
208250,
see fig. 4.27.
Adjustment:
For vertical adjustment of the capstan use special
tool no 5 as shown in fig. 4.28. Loosen the two screws
M125
in washer
990222
in the upper flywheel bearing.
Push the tool cautiously down on to the capstan until
all three legs rest against upper mounting plate. Then
tighten screws
M125,
and remove the tool. Wipe off
any impurities on the capstan by means of a clean
piece of cloth.
Fig. 4.27 Exploded view of flywheel with bearings.
18
220859
235549
M104
203013
990222
219586
208250
217869
990216
