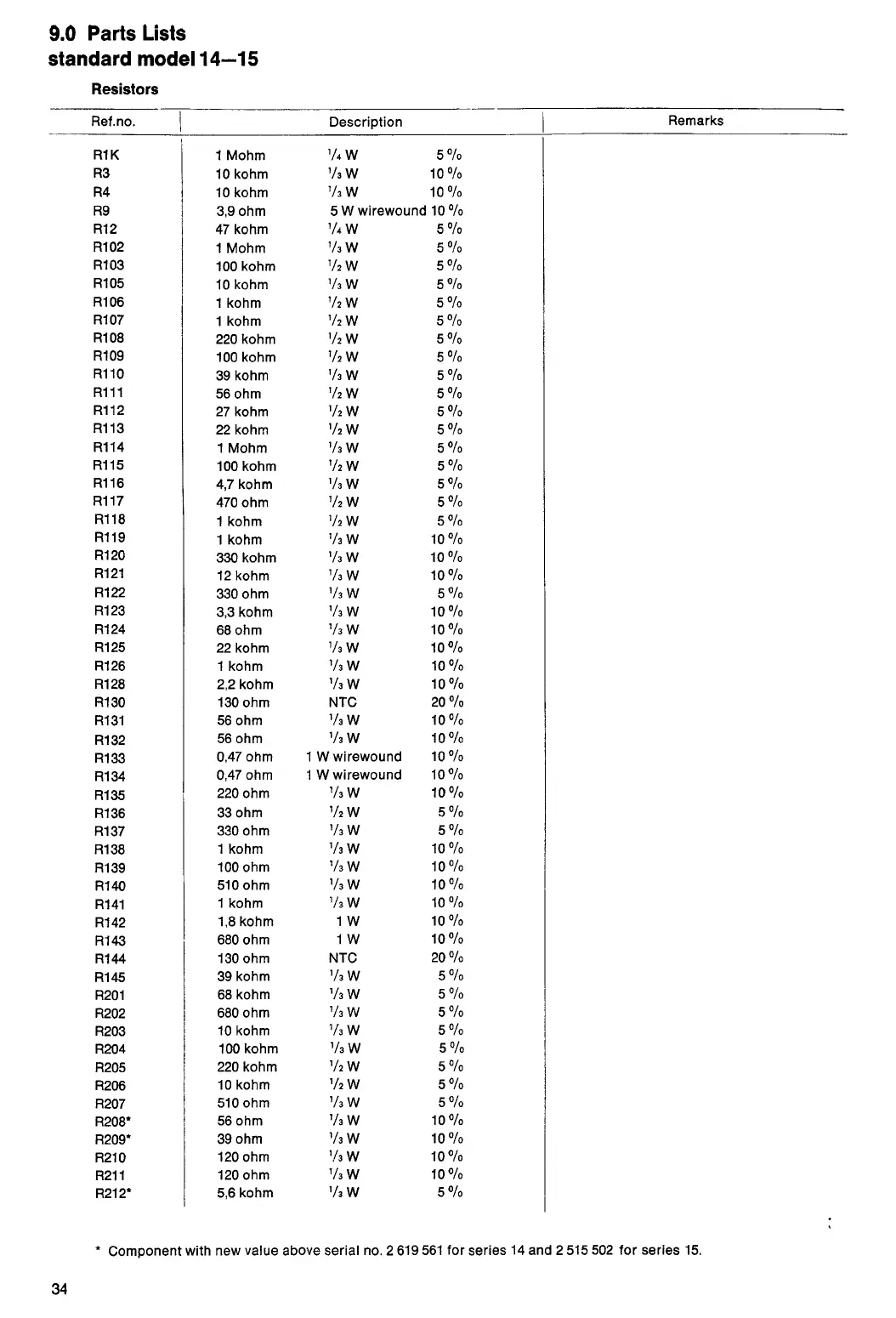

9.0 Parts Lists
standard mode114-15
Resistors
Ref.no.
Description
Remarks
R1K
1 Mohm
1 / 4 w
5 0/ 0
R3
10 kohm 1 / 3
W 10
° /o
R4
10 kohm
1
/
3 W 10
° /o
R9
3,9 ohm
5 W wirewound 10 °/0
R12
47 kohm 1 / 4
W 5 °/o
R102
1 Mohm
1 / 3 W
5 0/ 0
R103
100 kohm
1
/
2 W
5 °/o
R105
10 kohm
1 / 3 W
5 0/ 0
R106
1 kohm 1 / 2 W
5 0/ 0
R107
1 kohm 1 / 2 W
5 0/ 0
R108
220 kohm 1 / 2 W
5 0/ 0
R109
100 kohm 1
/
2 W
5 0/ 0
R110
39 kohm 1 / 3 W
5 0/ 0
R111
56 ohm 1 / 2 W
5 0/ 0
R112
27 kohm 1
/
2 W
5 0/ 0
R113
22 kohm
1 / 2 w 5 0/ 0
R114
1 Mohm
1 / 3
W
5 0/ 0
R115
100 kohm 1 / 2 W
5 0/ 0
R116
4,7 kohm 1 / 3 W 5 °/o
R117
470 ohm 1 / 2 W
5 ° /o
R118
1 kohm
1
/
2 W 5 °/o
R119
1 kohm 1 / 3
W
10
° /o
R120
330 kohm
1 / 3 w
10 °/o
R121
12 kohm 1 / 3 W
10
° /o
R122
330 ohm
1 / 3 w 5 0/ 0
R123
3,3 kohm
1 / 3 w
10
0 /o
R124
68 ohm 1 / 3 W
10
0 /0
R125
22 kohm 1 / 3 W 10 ° /o
R126 1 kohm 1 / 3 W
10
° /o
R128 2,2 kohm
1 / 3 w
10
° /o
R130
130 ohm NTC 20 ° /o
R131 56 ohm 1 / 3
W 10 °/o
R132
56 ohm
1 / 3 w
10
° /o
R133
0,47 ohm 1 W wirewound
10
° /o
R134
0,47 ohm 1 W wirewound
10
° /o
R135
220 ohm 1 / 3
W 10
° /o
R136
33 ohm
1
/
2 W
5 0/ 0
R137
330 ohm 1 / 3
W
5
0 /o
R138
1 kohm 1 / 3 W
10
° /o
R139
100 ohm
1 / 3 W
10
° /o
R140
510 ohm 1 / 3
W 10 0 /o
R141
1 kohm 1 / 3 W
10
0 /o
R142
1,8 kohm
1W
10
° /o
R143
680 ohm
1W
10 ° /o
R144
130 ohm
NTC
20
0 /o
R145
39 kohm
1 / 3
5 0 /0
R201
68 kohm
1
/
3 W
5 0/ 0
R202
680 ohm
1 / 3
W
5 0/ 0
R203
10 kohm
1 / 3
5
0 /o
R204 100 kohm
1 / 3 W
5 °/o
R205
220 kohm
1
/
2 W 5 0 /0
R206
10 kohm
1
/
2 W
5 0/ 0
R207
510 ohm
1 / 3 W
5 0/ 0
R208*
56 ohm 1 / 3 W
10
° /0
R209*
39 ohm
1 / 3 W
10
° /o
R210
120 ohm 1 / 3 W
10
° /o
R211
120 ohm
1 / 3 w
10
° /0
R212*
5,6 kohm
1 / 3 W
5 0/ 0
" Component with new value above serial no. 2 619 561 for series 14 and 2 515 502 for series 15.
