TANGO TX1 THREE-DIMENSIONAL DIAGRAMS
Refer to the three-dimensional diagrams for disassembled views of the instrument and its case top
assembly. Use the diagrams to identify parts, part numbers, and field-replaceable items (see Table 6.1).

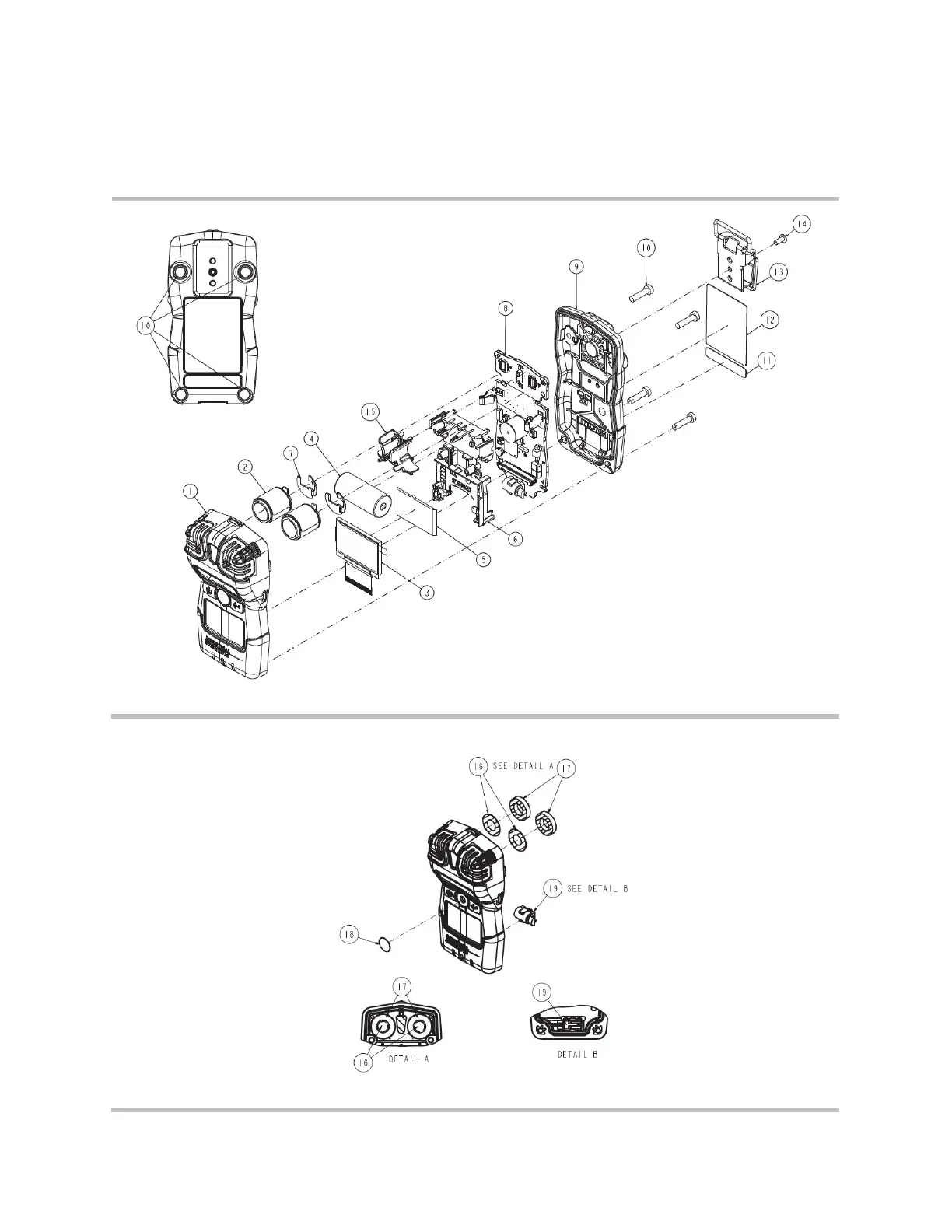

Figure 6.1 Disassembled Tango TX1
Figure 6.2 Disassembled Tango TX1 case top assembly
