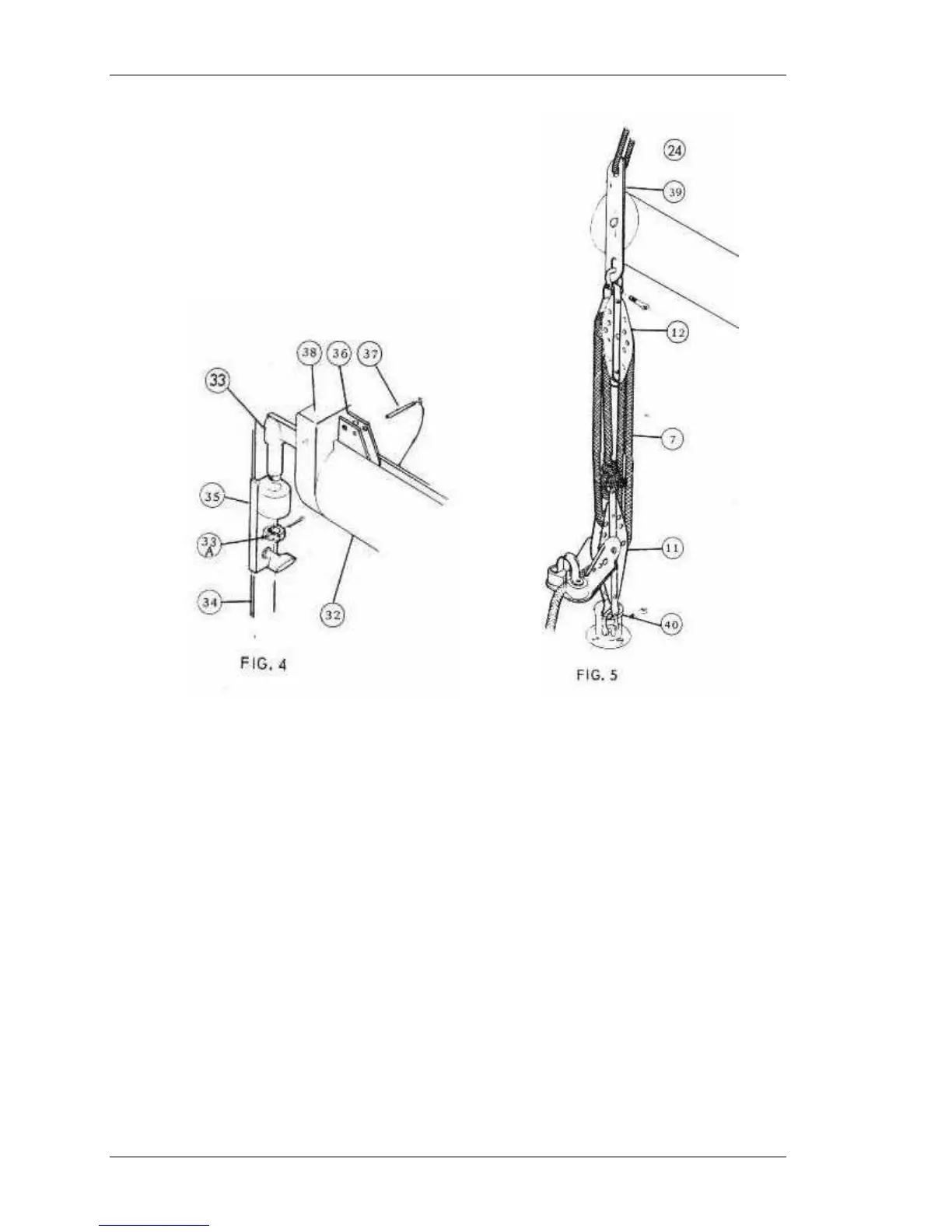

15. Select the main sheet blocks. The fiddle block (12) should be secured to
the slot in the strop at the after end of the boom using the shackle
provided. The swivel fiddle block (11) with the jamb cleat should be
secured to the shackle in the small black rubber cap (40) on the cockpit
sole, (see Figure 5). All shackles should be tightened with pliers; that on
(11) with a screwdriver. If your boat is fitted with a mainsheet traveller,
refer to the section dealing with this.
16. Select main sheet (7). This should be rove as shown in Figure 5. Tie a figure
of eight knot in the loose end of the main sheet. Take up slack and secure
in swivel jamb cleat.
17. On later models of the Tanzer 22, a small stainless steel eye strop is
installed below each halyard cleat. The ends of the main and jib halyard
rope tails should be inserted in these straps and then knotted with a figure
of eight knot. This permanently secures the halyard rope tails and prevents
them from inadvertently going aloft.
