Contents
• Four Head 4k Dock with 100W Power Delivery
• USB-C Cable
• AC Power adapter
• USB-C to USB-A adapter with Tether
• DC Output Cable
• Power Tips - 3A, 3H, 3H2, 3I2, 3P, 3W, 3X9
• VESA mount bracket (for selected models)

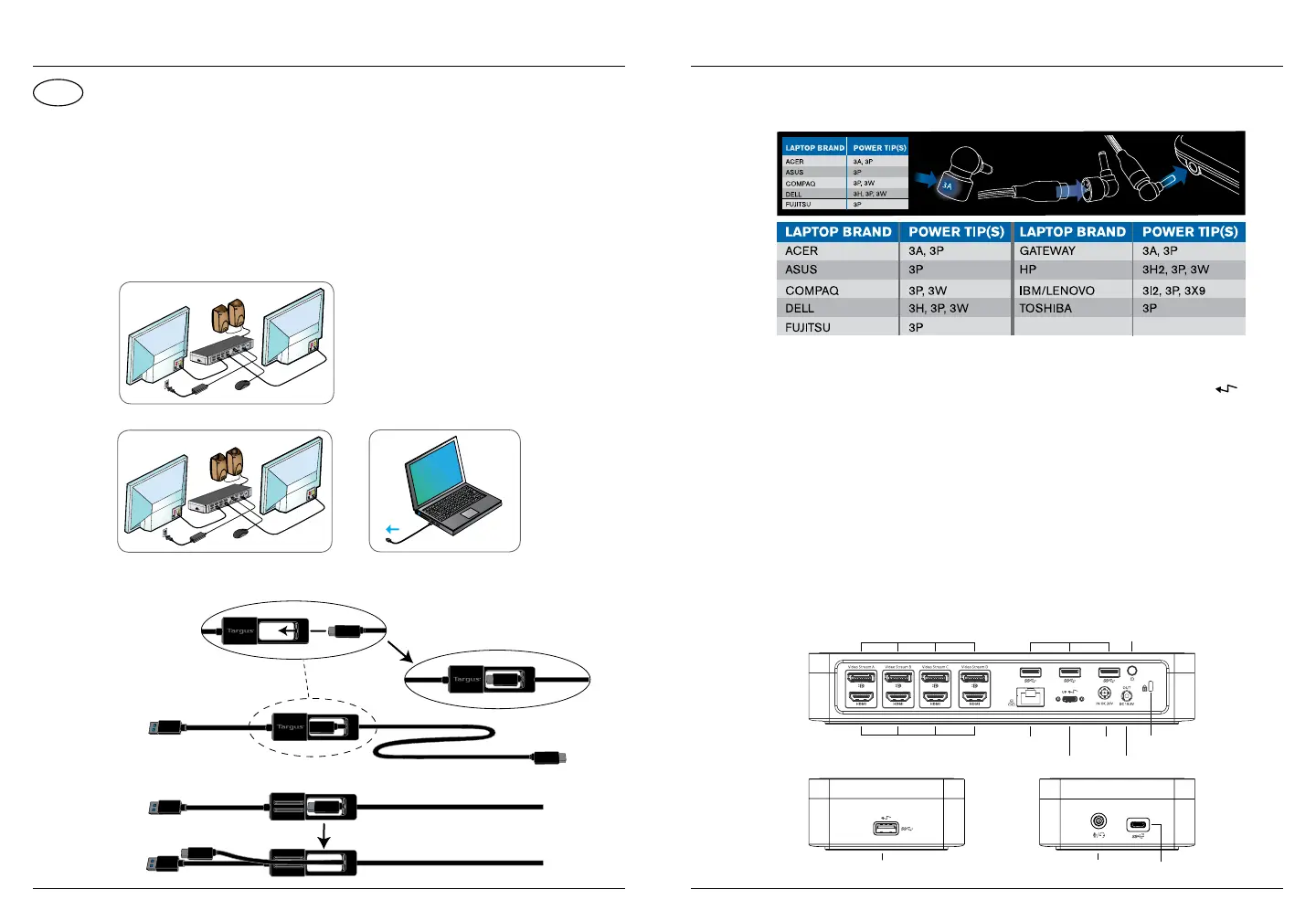

Power Setup
Workstation Setup
1. Connect all peripheral devices to the docking station.
2. Connect the Targus Universal Docking Station to your host device.
3. If your host device does not connect via USB-C, use the included USB-C to
USB-A adapter as shown below.
1.Locate the correct power tip
(test fit in laptop if needed)
2. Connect to the
power cord
3. Connect to your
laptop
GB
Targus Four Head 4k Dock with 100W Power Delivery Targus Four Head 4k Dock with 100W Power Delivery
Speci󰄈cations
• 4 x DisplayPort (DP++; DP1.2) / HDMI Port (HDMI 2.0)
• 4 x USB 3.1 Gen1 (5Gbps) downstream ports (one port marked with
supports BC 1.2 and iOS device charging at 2.4A max.)
• 1 x USB-C upstream port with supporting Power Delivery 2.0 Profile 5 (up to
100W max. charging)
• 1 x USB-C downstream port (USB 3.1 Gen2, 10Gbps, data transfer only)
• Gigabit Ethernet
• Audio In/Out Port (3.5mm headset connector)
• Security Lock Slot
• 1 x USB-C Cable
• LED Power Indicator
• Power ON/OFF Button
• DC Power In: 20V, 180W
• DC Power Out: 19.5V 90W max.
Docking Station Diagram
Gigabit EthernetHDMI
DP++ USB 3.1 (5Gbps)
USB 3.1 (5Gbps) Port (supports charging) USB-C
(10Gps, Data only)
Lock Slot
Audio Headset
Connector
USB to Laptop Port DC Power Out
DC Power In
Power On / O󰘯
For USB-A
connection
to laptop
Attach to
DOCK570
For USB-C
connection
to laptop
Back of the Adapter
Front of the
Adapter
+

Targus DOCK570EUZ Specifications

General

Headphone outputs	1
HDMI ports quantity	4
USB 2.0 ports quantity	0
Connectivity technology	Wired
Ethernet LAN	Yes
Product color	Black
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Windows operating systems supported	Windows 10, Windows 7, Windows 8.1
Master (outer) case width	295 mm
Master (outer) case height	320 mm
Master (outer) case length	410 mm
Master (outer) case weight	13340 g
Harmonized System (HS) code	84733020
Quantity per master (outer) case	6 pc(s)
Quantity per shipping (inner) case	3 pc(s)

Weight and Dimensions

Depth	260 mm
Width	85 mm
Height	179 mm
Weight	2000 g
