TASCAM US-144 17
5 – Connections

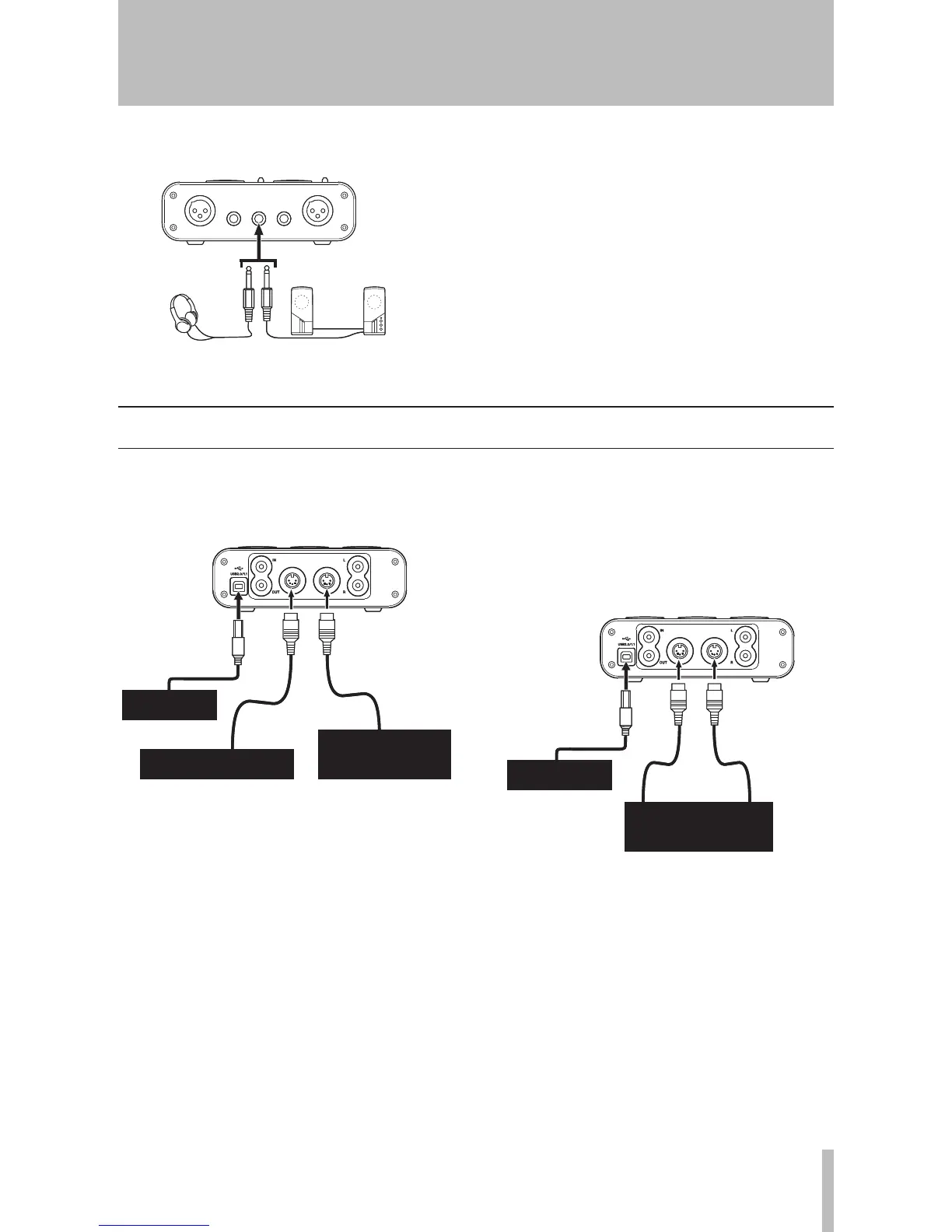

Speakers/headphones
Headphones
Powered speakers,
or amp and speakers
Headphones
Powered speakers,
or amp and speakers
MIDI connections
Connect your sound module, keyboard/
synthesizer, drum machine, or other MIDI
device to the US-144 as shown below.
You can use the MIDI IN/MIDI OUT con-
nectors to transmit and receive MTC
(MIDI Time Code). This allows the MTC-
compatible DAW (Digital Audio
Workstation) computer application to syn-
chronize with your MIDI equipment.
USB
Computer
MIDI OUT
MIDI IN
Sound module etc.
Keyboard /
synthesizer etc.
USB
Computer
MIDI OUT
MIDI IN
Sound module etc.
Keyboard /
synthesizer etc.
USB
MIDI OU
T
MIDI IN
Computer
Sequencer
/
drum machine etc.
USB
MIDI OU
T
MIDI IN
Computer
Sequencer
/
drum machine etc.

Tascam US-144 Specifications

General

I/O ports	2 x XLR mic - in S/PDIF In/Out USB 2.0 2 x line - in MIDI in/out
Mac compatibility	Yes
Compatible operating systems	Windows XP, Vista Mac OS 10.4 +
