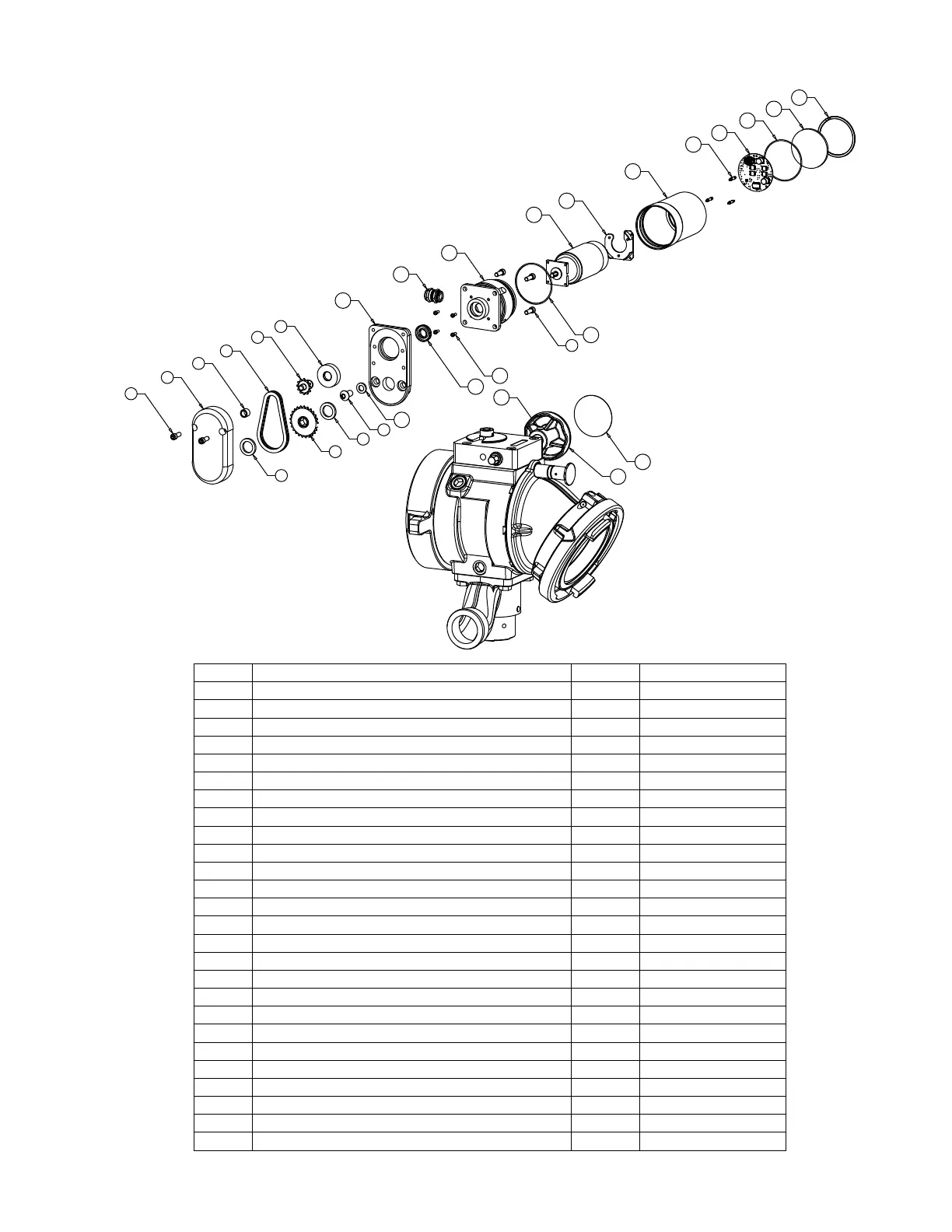

6.3 MOTOR ASSEMBLY BIV RC & JUMBO BIV RC EXPLODED VIEW AND PARTS LIST
24
16
25
23
10
12
11
13
15
14
1
16
18
17
21
22
9
7
8
7
1
2
3
4
5
6
20
19
INDEX DESCRIPTION QTY PART #
1 1/4-28 X 5/8 SOCKET HEAD CAP SCREW 6 VT25-28SH625
2 REDUCER COVER 1 A1097
3 BUSHING NYLON 1 X252
4 38LINK ROLLER CHAIN 1 AX1685
5 DRIVE SPROCKET 12 TEETH 1 X253
6 BUSHING MOTOR 1 X256
7 THIN WASHER 2 A1530
8 BIV SPROCKET 25 TEETH 1 A1098
9 3/8-16 X 3/4 BUTTON HEAD CAP SCREW 1 VT37-16BH750
10 LOCK WASHER 3/8" 1 VW375SSLOCK
11 REDUCER HOUSING 1 A1096
12 CUP SEAL 1.0625 X .5625 X 1/4 1 Y4620
13 STRAIN RELIEF PG11 .39 HOLE 1 Y5205
14 6-32 X 5/16 LONG SHCS WITH HEAD SEAL 4 VT06S32SH312
15 MOTOR SOCKET 1 Y4615
16 O-RING-038 2-5/8 ID 1/16 C/S 2 VO-038
17 GEAR MOTOR W/CRIMPED TERMINALS 1 Y4600
18 MOTOR BOARD SUPPORT 1 Y4643
19 KNOB 1 Z245
20 OVERRIDE KNOB LABEL 1 Y4176
21 1/4-20 X ½ BUTTON HEAD CAP SCREW 2 VT25-20BH500
22 MOTOR ENCLOSURE TUBE 1 Y4641
23 CIRCUIT BOARD STANDOFF 3 Y5538
24 VALVE MOTOR BOARD 1 A5825
25 MOTOR ENCLOSURE CAP 1 Y4642
26 SMALLEY RING 1 V4295
