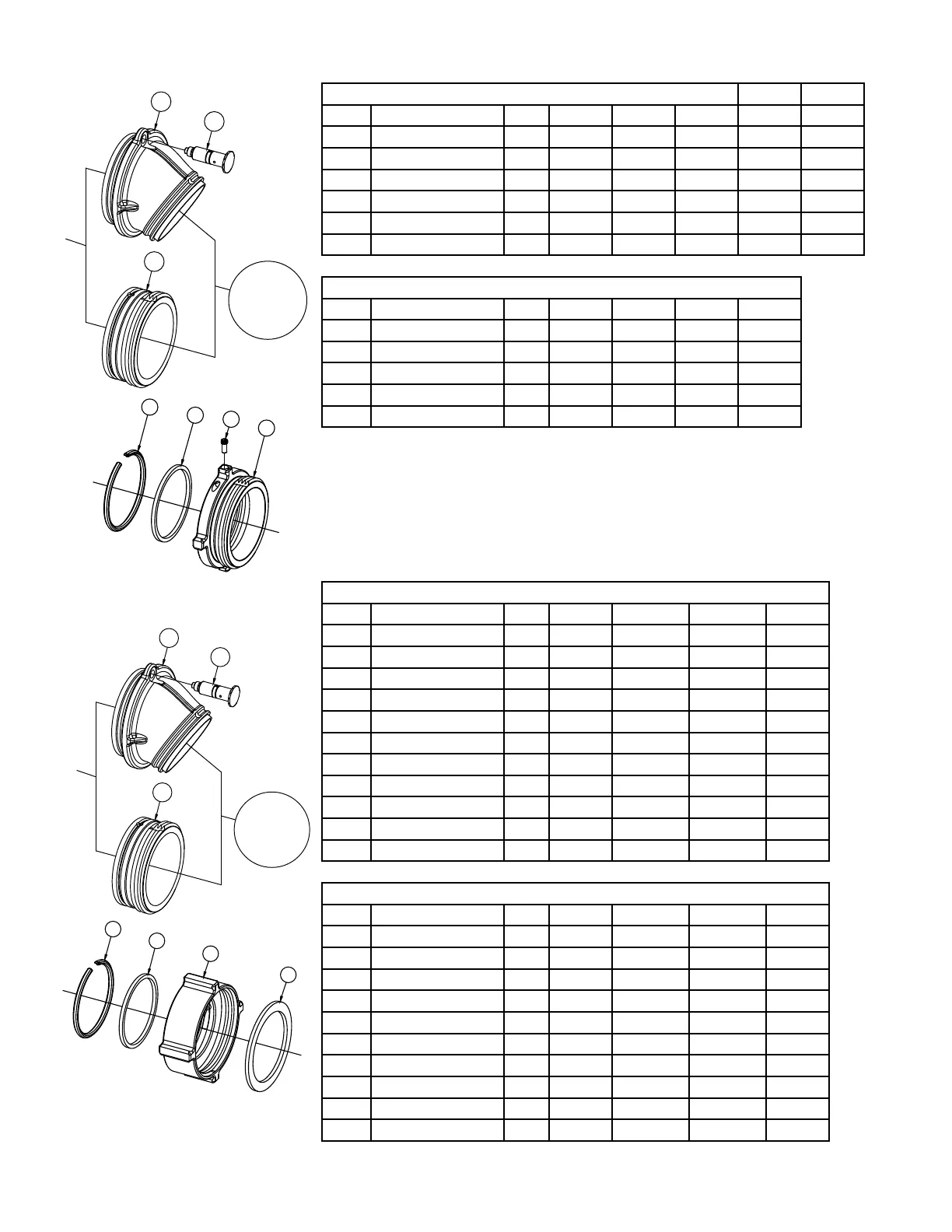

6.4 SIDE B OUTLET OPTIONS EXPLODED VIEWS AND PARTS LISTS
1
2
4
3
SIDE B
COUPLING/
SPOUT
19
20
21
AB/AC & AX/AZ SERIES - MALE HOSE THREADS AB/AC AX/AZ
INDEX DESCRIPTION QTY. 4.0" 4.5" 5.0" 6.0" 6.0”
19 ELBOW 1 A1054 A1054 A1054 A1054 A1091
20 PULL PIN ASSEMBLY 1 A1615 A1615 A1615 A1615 A1615
1 PLASTIC STRIP 1 A1291 A1291 A1291 A1291 A1293
2 CUP SEAL 1 A1596 A1596 A1596 A1596 A1594
3 LOCK-OUT SCREW 1 A1294 A1294 A1294 A1294 A1294
4 SPOUT 1 A4620N A4625N A4630N A4635N A4640N
ABS/ACS & AP/AQ SERIES - MALE HOSE THREADS
INDEX DESCRIPTION QTY. 4.0" 4.5" 5.0" 6.0"
21 MATE/SPOUT 1 A1055 A1055 A4631N A4641N
1 PLASTIC STRIP 1 A1291 A1291 - -
2 CUP SEAL 1 A1596 A1596 - -
3 LOCK-OUT SCREW 1 A1294 A1294 - -
4 SPOUT 1 A4620N A4625N - -
7
6
8
5
SIDE B
COUPLING/
SPOUT
19
20
21
AB/AC & AX/AZ SERIES - FEMALE HOSE THREADS ROCKER LUG
INDEX DESCRIPTION QTY. 3.5" 4.0" 4.5" 5.0"
19 ELBOW 1 A1054 A1054 A1054 A1054
20 PULL PIN ASSEMBLY 1 A1615 A1615 A1615 A1615
5 PLASTIC STRIP 1 A1291 A1291 A1291 A1291
6 CUP SEAL/O-RING 1 A1596 - - A1596
7 COUPLING 1 A4655N A4662N A4667N A4670N
8 GASKET 1 V3196 V3198 V3210 V3220
- NFS RING/O-RING 1 - A4561/VO-248 A4566/VO-248 -
- MATE 1 A4730 - - -
- PLASTIC STRIP 1 A1292 - - -
- CUP SEAL 1 A1597 - - -
- BALL 1 VB.437 - - -
ABS/ACS & AP/AQ SERIES - FEMALE HOSE THREADS ROCKER LUG
INDEX DESCRIPTION QTY. 3.5" 4.0" 4.5" 5.0"
21 MATE/SPOUT 1 A1055 A1055 A1055 A1055
5 PLASTIC STRIP 1 A1292 A1291 A1291 A1291
6 CUP SEAL 1 A1597 - - A1596
7 COUPLING 1 A4655N A4662N A4667N A4670N
8 GASKET 1 V3196 V3198 V3210 V3220
- NFS RING/O-RING 1 - A4561/VO-248 A4566/VO-248 -
- MATE 1 A4730 - - -
- PLASTIC STRIP 1 A1291 - - -
- CUP SEAL 1 A1596 - - -
- BALL 1 VB.437 - - -
