©Copyright Task Force Tips, LLC 2002 - 2018 LIA-200 March 20, 2018 Rev19
23

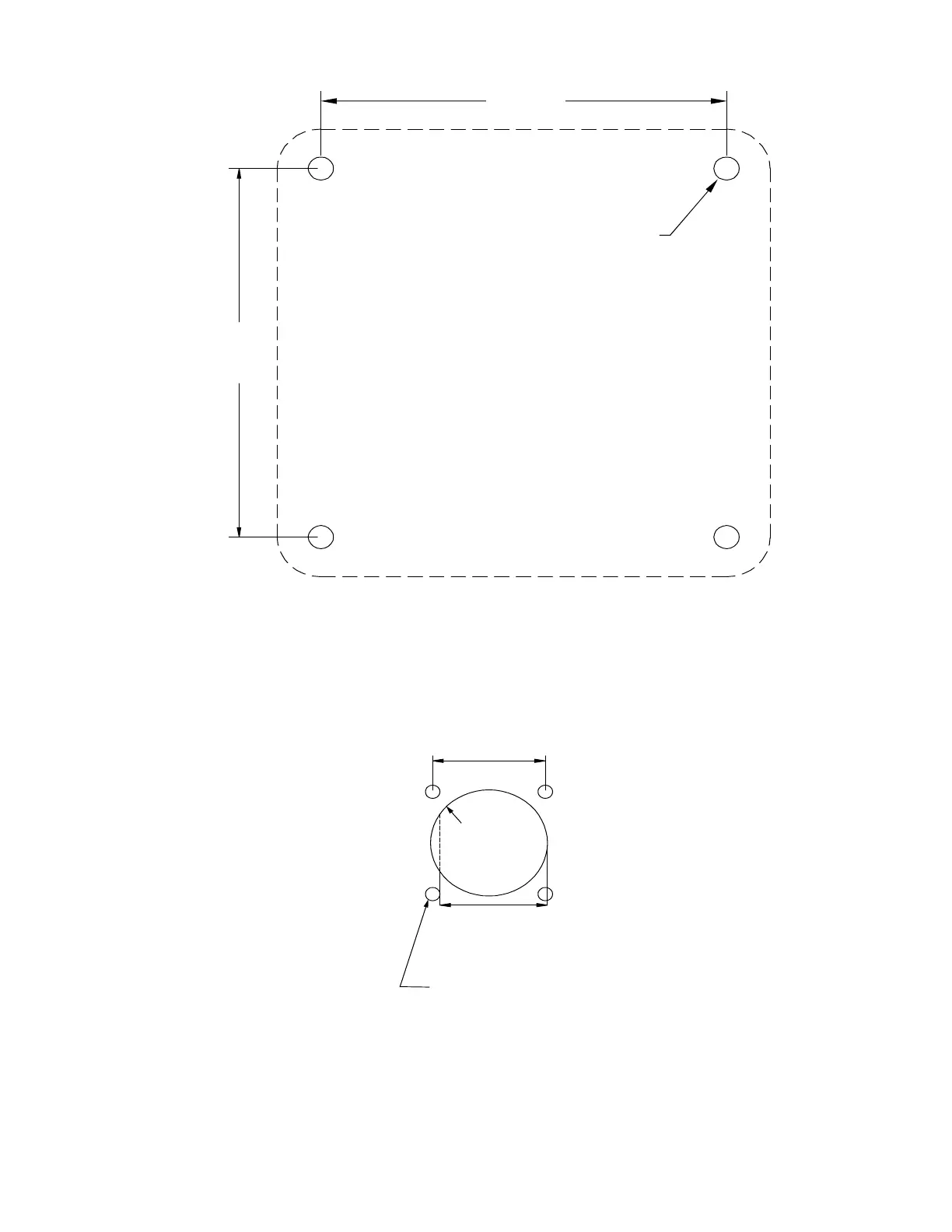

12.0 TEMPLATES
HOLE LOCATIONS FOR BIV RC POSITION DISPLAY
TEMPLATE 4.2A
7/32” [5.5mm] DIA
(4) PLACES
OR TAP FOR
10-32 UNC THREAD
3 1/2”
[89mm]
3 1/2”
[89mm]
MOUNT ENCLOSURE WITH
(4) #10 FASTENERS.
TIGHTEN SECURELY.
HOLE LOCATIONS FOR
QUICK CONNECT PLUG
TEMPLATE 4.2B
Ø1.00”
[25mm]
1/8” [3mm] DIA
(4) PLACES
0.919”
[23mm]
OPTIONAL FLAT
INSTALLER CAN USE
FLAT OR #4 SCREWS
TO STOP ROTATION
0.964”
[24.5mm]
SQUARE
