©Copyright Task Force Tips, LLC 2002 - 2018 LIA-200 March 20, 2018 Rev19
16

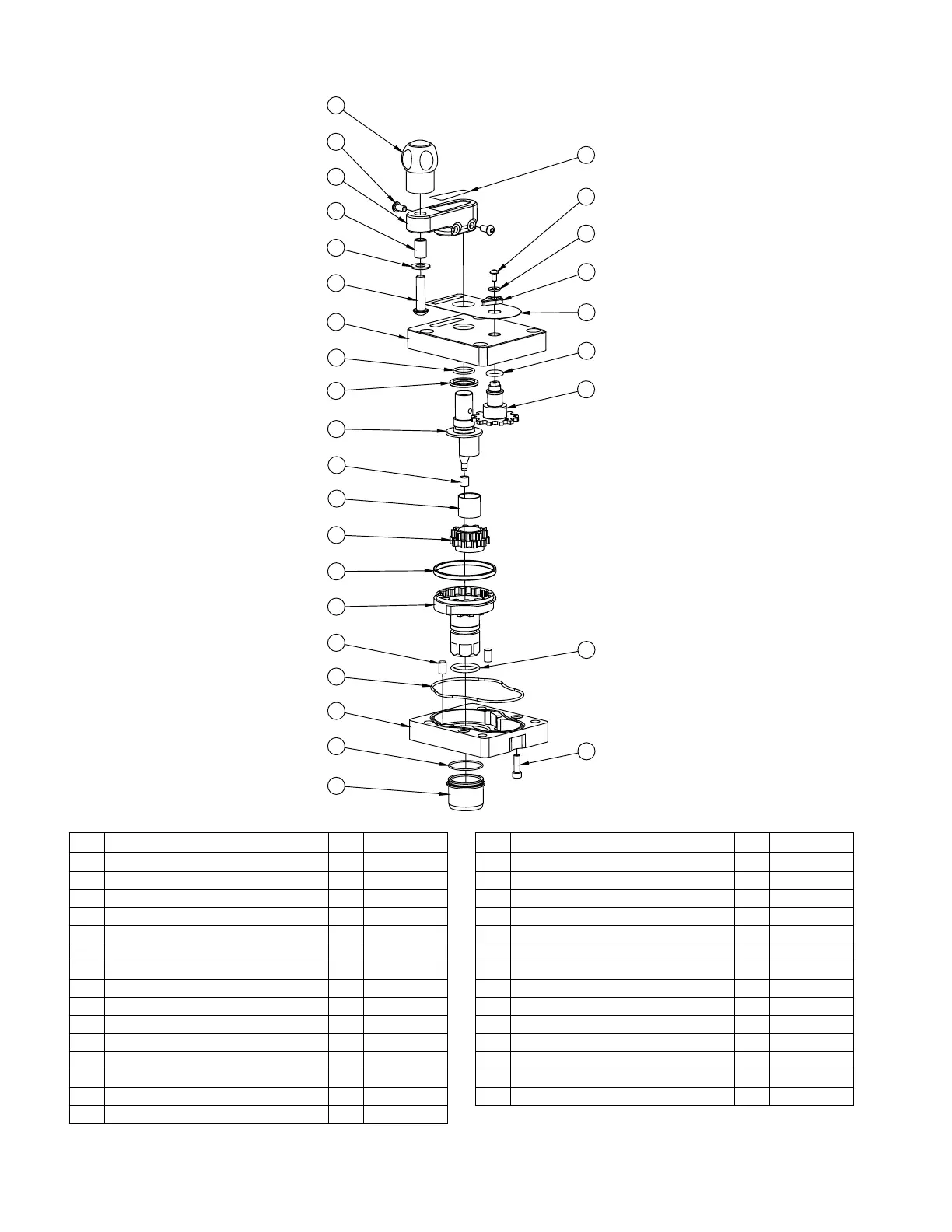

6.5 PARALLEL DRIVE GEARBOX [A] EXPLODED VIEW AND PARTS LIST
2
3
4
5
6
7
8
9
10
13
14
15
16
17
18
19
20
11
12
ITEM DESCRIPTION QTY PART # ITEM DESCRIPTION QTY PART #
1 KNOB 1 A1512 16 DOWEL PIN 2 VP312X.50
2 1/4-20 X 1/2 BUTTON HEAD SCREW 2 VT25-20BH500 17 O-RING-154 1 VO-154
3 CRANK 1 A1559 18 SUBPLATE 1 A1551
4 CRANK BUSHING 1 A1513 19 O-RING-028 1 VO-028
5 WASHER 1 VW812X406-65 20 INNER BUSHING 1 A1552
6 3/8-16 X 1-1/2 BUTTON HEAD SCREW 1 VT37-16BH1.5 21 HANDLE LABEL - WHITE 1 AY342-WHT
7 GEARBOX 1 A1550 22 10-24 3/8 BUTTON HEAD SCREW 1 VT10-24BH375
8 O-RING-116 1 VO-116 23 WASHER 1 VW500X203-60
9 SPACER 1 A1556 24 POSITION INDICATOR 1 A1558
10 DRIVE SHAFT 1 A1555 25 LABEL 1 A1550L
11 NYLON BUSHING 1 AY307 26 O-RING-206 1 VO-206
12 GEAR BUSHING 1 A1548 27 INDICATOR GEAR 1 A1557
13 DOUBLE GEAR 1 A1554 28 O-RING-214 1 VO-214
14 TRUNNION BUSHING 1 A1549 29 1/4-20 X 3/4 SOCKET HEAD SCREW 1 VT25-20SH750
15 INNER TRUNNION 1 A1553
Replacement Kit
A1633-KIT
