3.2 Assembly instructions
Before starting assembly, look carefully through the individual assembly steps shown
and assemble the equipment in the order indicated.

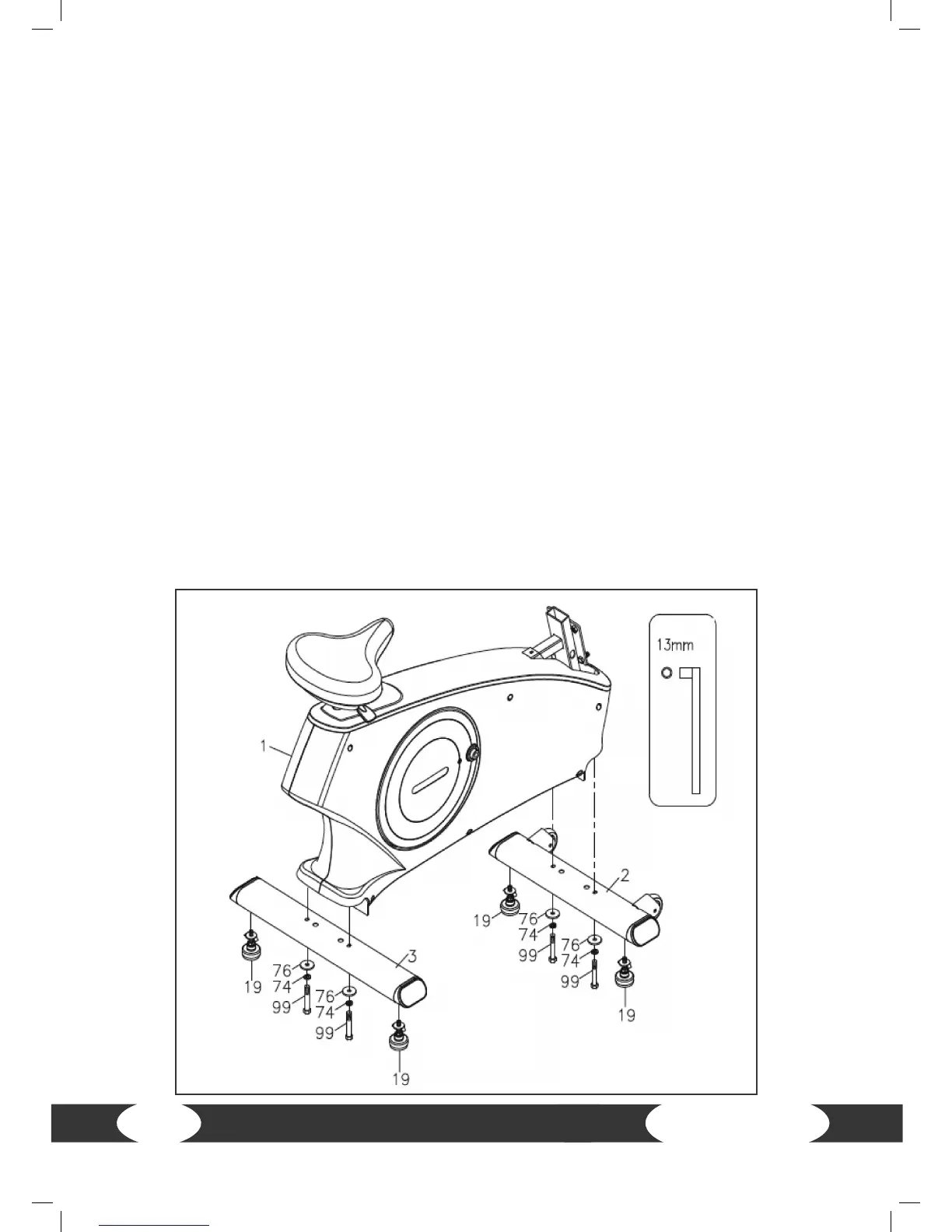

Step 1: Assemble base feet
a) Mount four adjusting screws (19) each on the front base foot (2) and rear base foot (3).
b) Make sure that the adjusting screws (19) are tightly attached to the base feet.
c) In order to be able to mount the base feet easier, we recommend placing one of the
pieces of Styrofoam under the frame (1).
d) Mount the front base foot (2) on the frame (1) with two washers (8x38x2.0t) (76), two
spring washers (M8)(74) and two screws (M8xp1.25x65mm)(99).
e) Mount the rear base foot (3) on the frame (1) with two washers (8x38x2.0t) (76), two
spring washers (M8)(74) and two screws (M8xp1.25x65mm)(99).
Rotate the adjusting screws further in or out in order to level out any unevenness.
