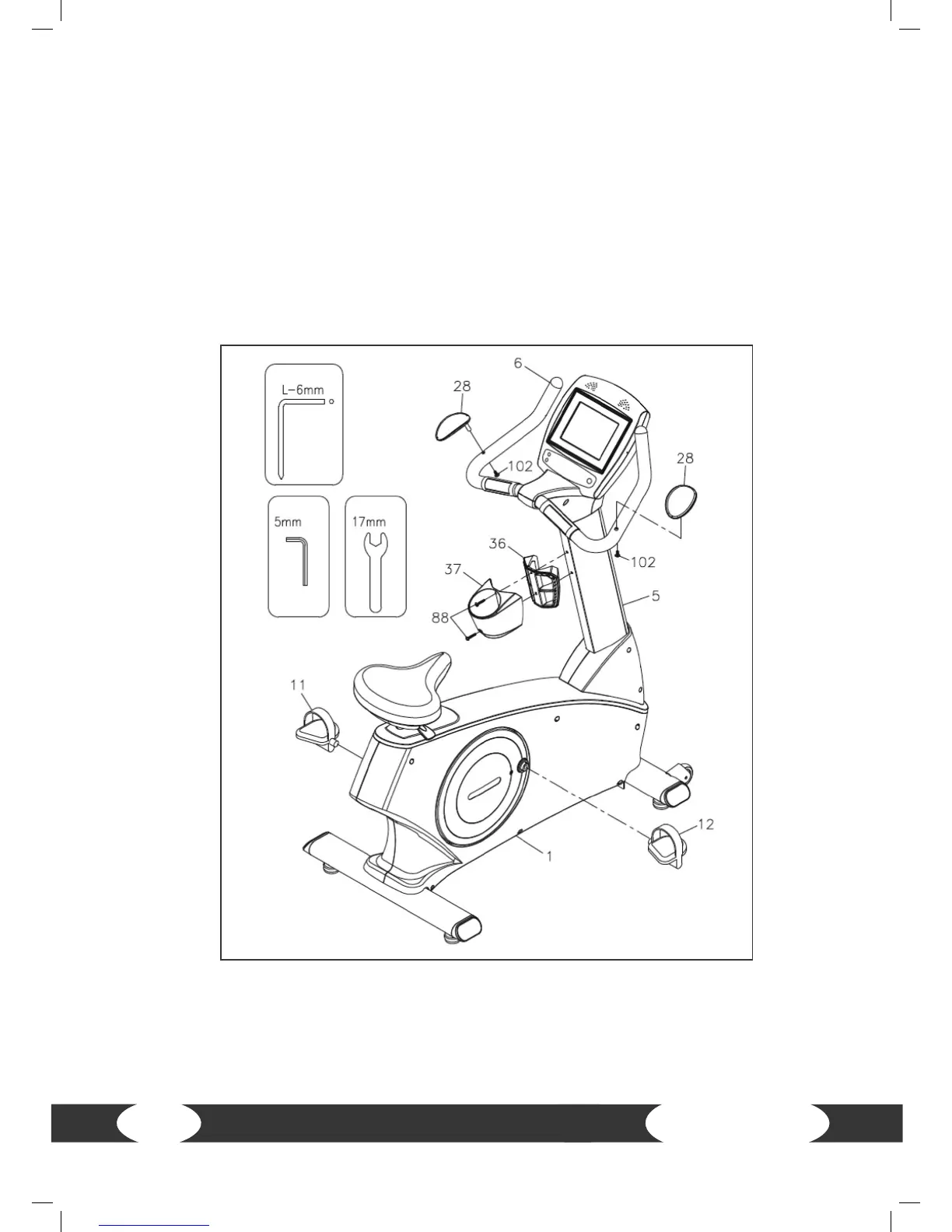

Step 9: Assemble bottle holder and pedals
a) Mount the two parts of the bottle holder (36+37) on the console mast (5) with the two
pre-mounted screws (M5xp0.8x25mm)(88).
b) Screw tight the right pedal (12) clockwise on the right pedal crank. Screw tight the left
pedal (11) counter-clockwise on the left pedal crank.
Then check again to see if all screws and nuts have been tightened.
