Illustrated Parts
Page 46
MB-T48-02
T-48 AC / ET 3000

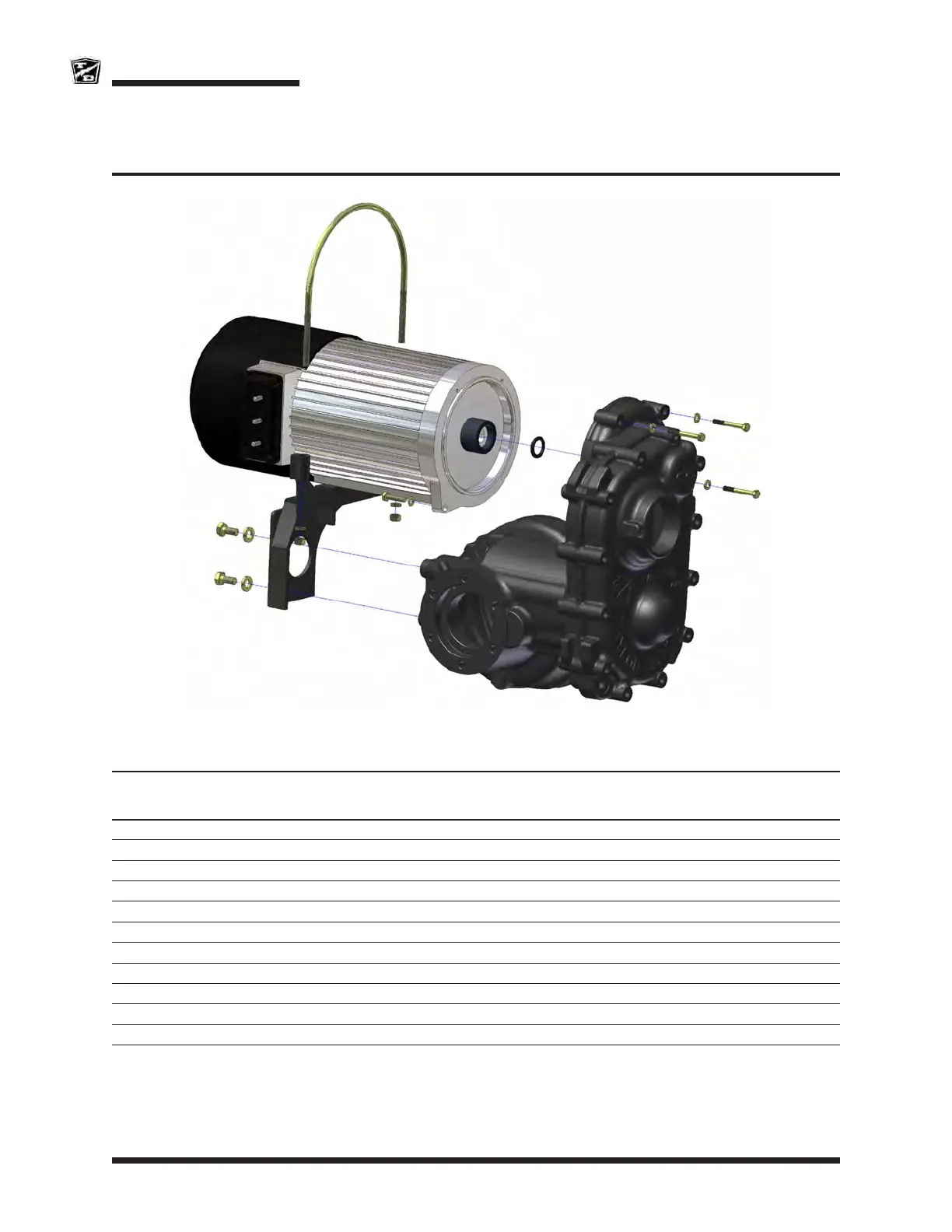

Motor Mount
Apply 94-421-34 grease to inside of motor coupler
Motor Mount
Item No. Part No. Description Qty
1 See Motor Motor 1
2 96-114-12 U-bolt 1
3 80-714-05 O-ring 1
4 88-068-62 1/4 Split lock washer 4
5 89-060-11 6mm x 1.0 x 50 Hex bolt 3
6 89-111-27 10mm x 1.5 x 20 Hex bolt 2
7 88-128-62 7/16 Split lock washer 2
8 70-456-03 Mounting bracket 1
9 88-067-17 1/4NC x 1-1/4 Hex bolt 1
10 88-099-80 5/16NF hex nut 2
11 88-088-62 5/16 Split lock washer 2
