Models 340/341/342

Parts

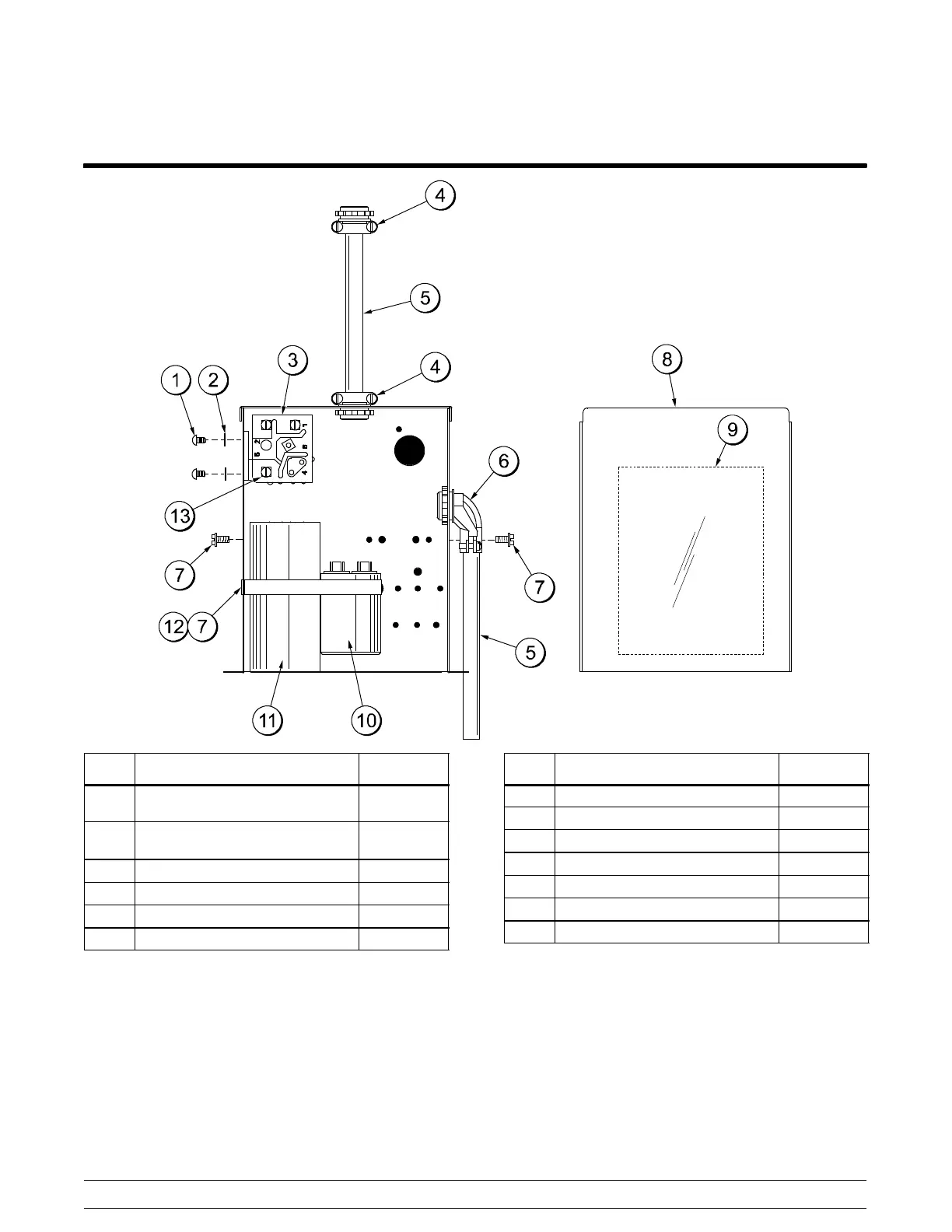

Box A.--Cap & Relay X50292--12 -- Mod el 340 (115/60/1 Tecumseh)

ITEM DESCRIPTION PART NO.

1 SCREW --8--32X1/4 SLTD

ROUND

000953

2 WASHER--#8 EXTERNAL

TOOTH

000964

3 RELAY--START--COMPRESSOR 047609

4 CONNECTOR--BX 3/8 STR--2 014569

5 SLEEVE --WIRE 7/16 ID 020919--20

6 CONNECTOR--BX 3/8 90 DEG 001793

ITEM DESCRIPTION PART NO.

7 SCREW --10X3/8 SLOTTED HEX 015582

8 COVER--CAP.RELAY BOX 030315

9 LABEL--WIRING SINGLE PHASE 036880--1

10 CAPACITOR--RUN 15UF/370V 027087

11 CAPACITOR--START 340--408UF 047608

12 STRAP--CAPACITOR 7--11/32 037890

13 SCREW--8--32X5/16 SLTD 008399
