Models 340/341/342
Parts

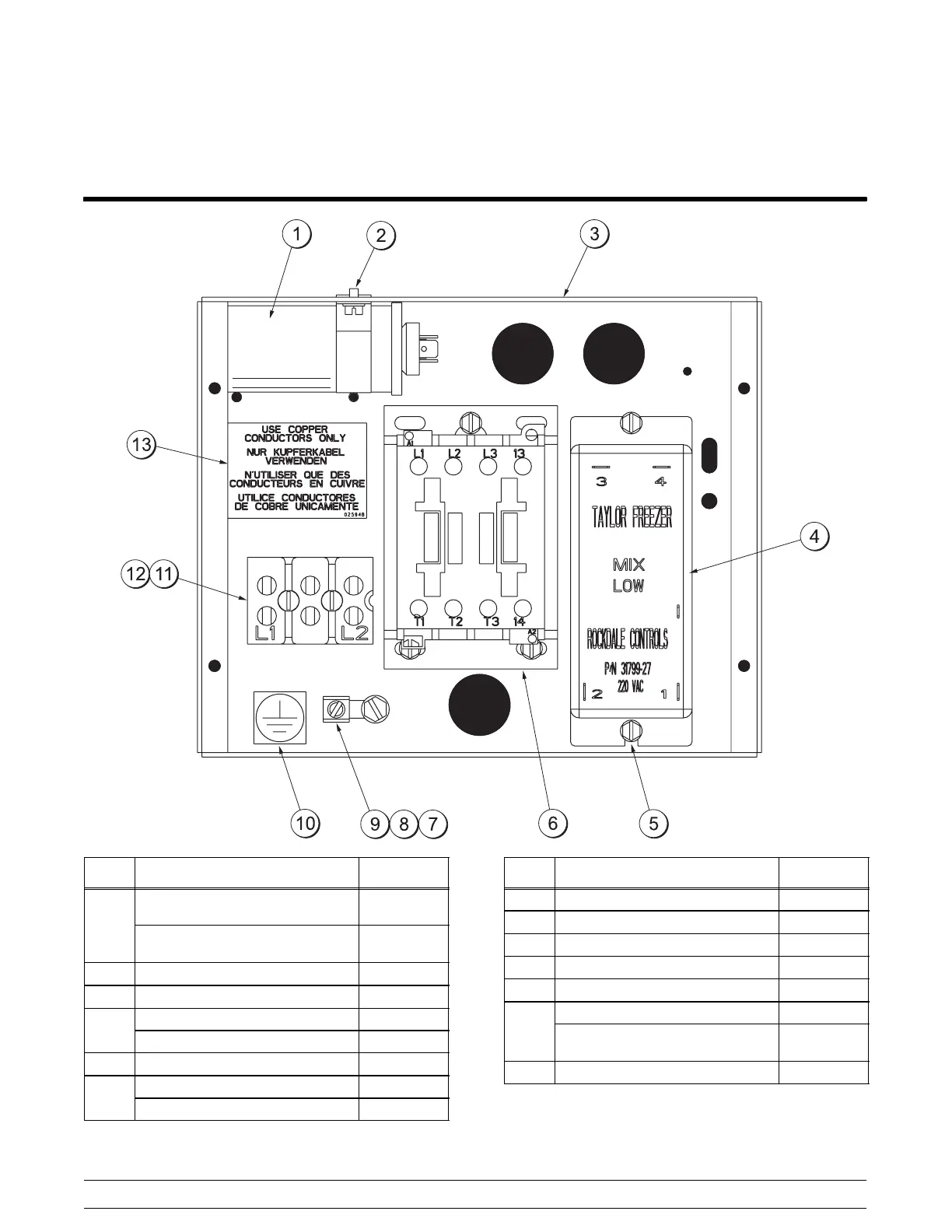

Control A. X52469--12 -- Model 340 (115/60/1 Tecu mseh)
Control A. X52469--27 -- Model 340 (208--230/60/1 Bristol)
ITEM DESCRIPTION PART NO.
1
CAPACITOR-RUN- 7.5UF-370V
(115V) FAN
034749
CAPACITOR-RUN- 4UF-440V
(230V) FAN
051785
2 STRAP-CAPACITOR 041350
3 BOX-CONTROL 049041
4
CONTROL-MIX L EVEL 031799-12
CONTROL-MIX L EVEL 031799-27
5 SCREW-8X1/4 SL HEX HD B 009894
6
RELAY-3 POLE 115V 012725-12
RELAY-3 POLE 208/240V 012725-33
ITEM DESCRIPTION PART NO.
7 LUG-GROUND. 260 W/SCREW 020928
8 SCREW-10-32X1/2 MF HEX 020982
9 NUT-10-32 MF LOCK 020983
10 LABEL-GROUNDING SYMBOL 017669
11 SCREW-8 X 1-1/4 RD HD TYP B 039420
12
BLOCK-TERMINAL 2P-L1 (115V) 039421
BLOCK-TERMINAL 2P-L1,L2
(230V)
039422
13 LABEL-COPPER COND ONLY 025948
To Next Page
