Model 342 Tim HortonsOperating Procedures
131009
Step 4
Place the power switch in the WASH position. This
will cause the cleaning solution in the freezing
cylinder to be agitated.
Step 5
Place an empty pail beneath the door spout and
move the draw handle to the right. Draw off all the
cleaning solution. When the solution stops flowing
from the door spout, move the draw handle to the
left, and place the power switch in the OFF position.
Repeat these steps for the other side of the unit.
Disassembly
MAKE SURE THE POWER SWITCH IS IN
THE “OFF” POSITION! Failure to follow this
instruction may result in severe personal injury from
hazardous moving parts.
Step 1
Remove the handscrews, freezer door, beater
assembly, torque rotor, scraper blades and drive
shaft from the freezing cylinder. Take the parts to
the sink for cleaning.
Step 2
Remove the front drip tray and the splash shield.
Take them to the sink for cleaning.
Step 3
Remove the rear drip pan.
Note: If the drip pan is filled with an excessive
amount of mix, it is an indication the drive shaft seal
should be replaced or properly lubricated.
Brush Cleaning
Step 1
Prepare a sink with an approved cleaning solution
(examples: Kay-5 or Stera-Sheen ). USE
WARM WATER AND FOLLOW THE
MANUFACTURER'S SPECIFICATIONS.
(If another approved cleaner is used, dilute
according to label instructions.)
IMPORTANT: Follow label directions, as too
STRONG a solution can cause parts damage, while
too MILD a solution will not provide adequate
cleaning. Make sure all brushes provided with the
freezer are available for brush cleaning.
Step 2
Remove the o-ring and seal from the drive shaft.
Remove the o-ring and bearing from the torque
rotor.
Step 3
Remove the handle pin, handle, ice buster, draw
valve, front bearing, prime plug, and gasket from the
freezer door. Remove all o-rings.
Note: To remove an o-ring, use a single service
towel to grasp the o-ring. Apply pressure in an
upward direction until the o-ring pops out of its
groove. With the other hand, push the top of the
o-ring forward until it rolls out of the groove and can
be easily removed.
Step 4
Thoroughly brush clean all disassembled parts in the
cleaning solution, making sure all lubricant and mix
film is removed. Place all cleaned parts on a clean,
dry surface to air dry.

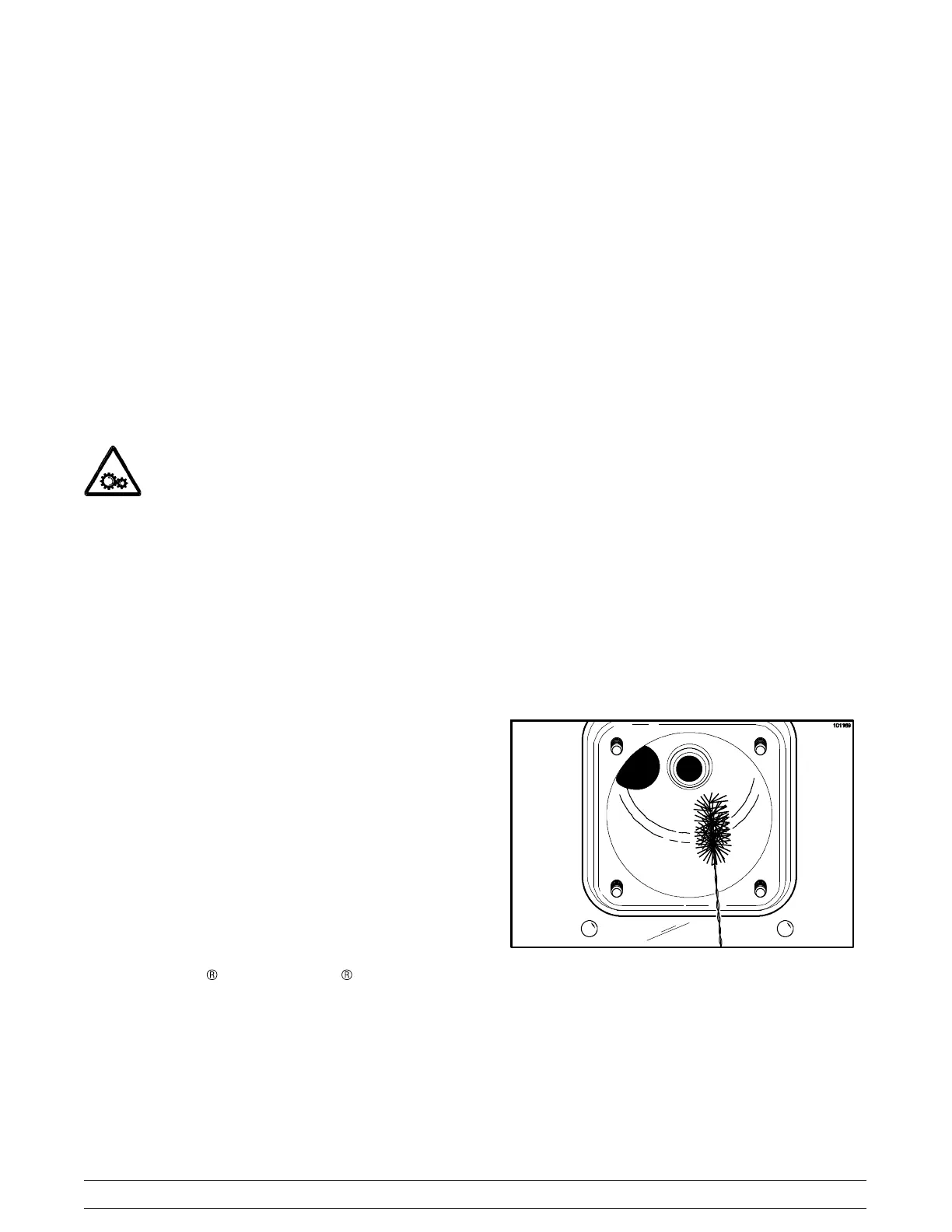

Step 5
Return to the freezer with a small amount of
cleaning solution. Brush clean the rear shell bearing
at the back of the freezing cylinder with the black
bristle brush.
Figure 29
Repeat these steps for the other side of the unit.
Step 6
Wipe clean all exterior surfaces of the freezer.
