Section 4
4-1
Models 345, 346, 349, 355
Operator Parts Identification
4
Operator Parts Identification

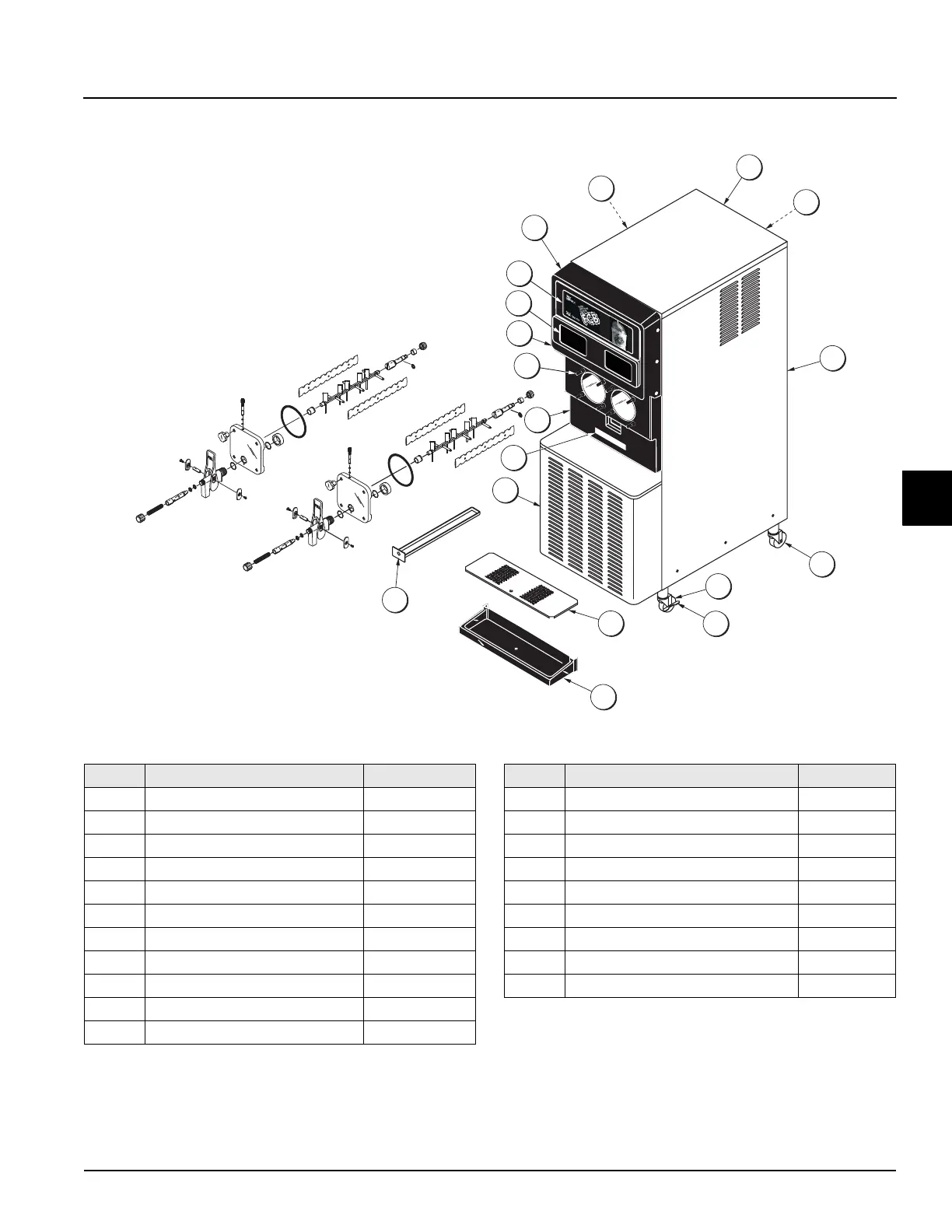

Figure 4-1
*Not Shown
17
5
7
11
10
6
8
12
9
16
4
1
3
2
15
14
13
18
Model 345
Item Description Part No.
1 Panel A.-Side Left X45136
2 Hood 044618
3 Panel-Rear 044921-SP1
4 Panel A.-Side Right X44919
5 Caster-3” SWV 3/4-10 Stem 021279
6 Caster-3” SWV w/Brake 030307
7 Lock-Caster BRKT 032571
8 Shield-Splash 043719
9 Tray-Drip Black w/Drain 043720-SP
10 Pan-Drip 19-1/2 Long 035034
11 Panel-Service 044916
Item Description Part No.
12 Panel-Front-Lower 043599-BLA
13 Stud-Nose Cone 5/16-18 020445
*13a Washer-Freezer Stud 036265
14 Card-Flavor Packet 035324
15 Card-FCB POP 043957
16 Panel-Front-Upper 043600-BLA
17 Plate-Dec-345-346-355* Black 043639-BLA
18 Decal-Dec-Taylor Domed 053761
*19 Pan-Drip (White) for Drip Guide 043612
