Taylor 390 Service Manual

4.8 BEVERAGE EQUIPMENT:
4.8.6.3 Iced Cappuccino Machine 3 Issue Date: February 21, 2008
Taylor 390 Last Modified: October 31, 2008

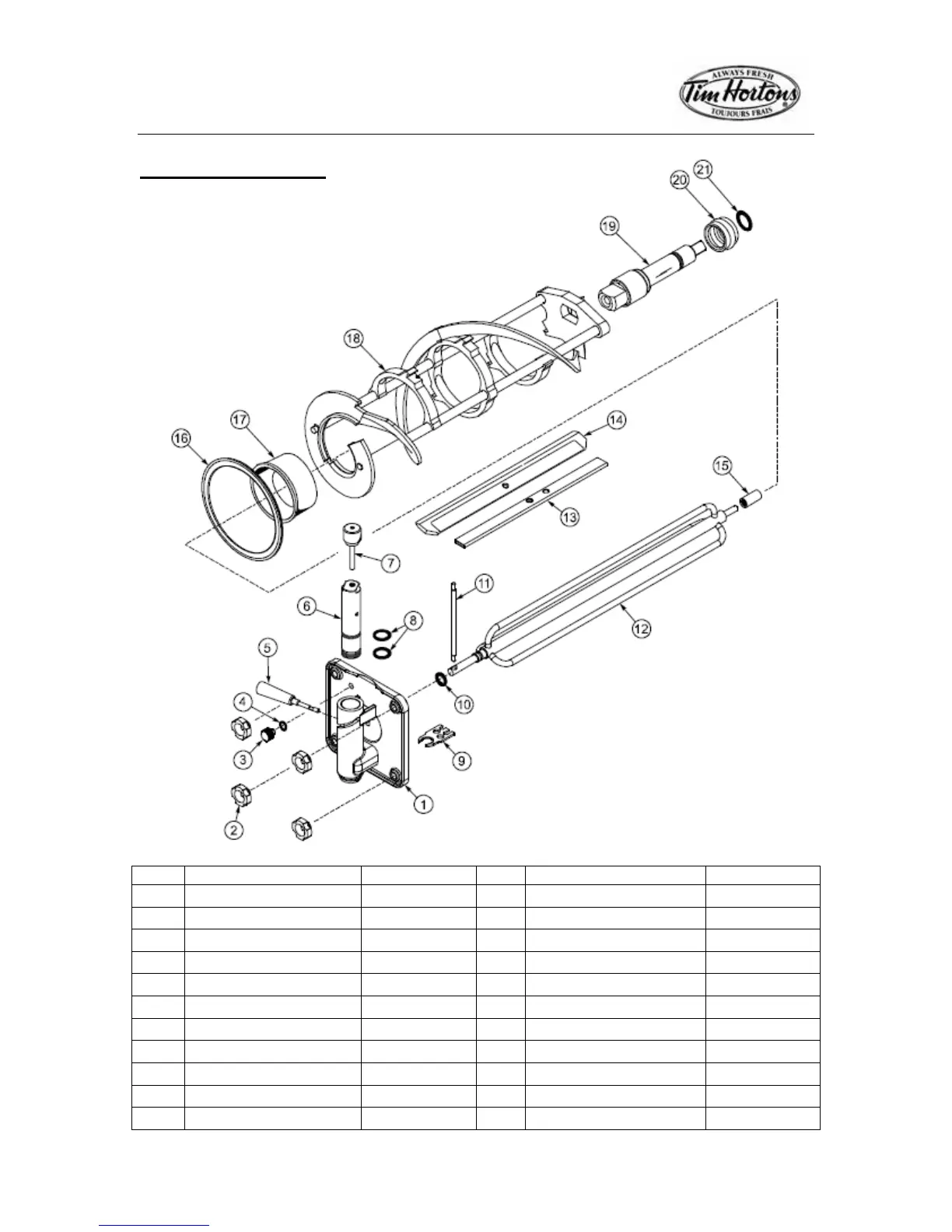

BEATER ASSEMBLY
Item Description Part Number Item Description Part Number
1
Freezer Door X50990
12
Torque Assembly X14488
2
Stud Nut 029880
13
Scraper Blade Clip 046238
3
Prime Plug 050405
14
Scraper Blade 046237
4
O-Ring (.563 OD x .070W) 043758
15
Guide Bearing 014496
5
Draw Handle X47384
16
Door Gasket 014030
6
Draw Valve 047734
17
Front Bearing 013116
7
Valve Handle Pin X25929
18
Beater Pin Support X46233
8
O-Ring (1"OD x .139W) 018550
19
Beater Shaft 035418
9
Ice Buster 047735
20
Beater Shaft Seal 032560
10
O-Ring (.291 ID x .080W)
053100
21
O-Ring (7/8 OD x .139W) 025307
11
Torque Arm 014500
