9
Models 8752 & 8756 with Horizon® Pump Operator Parts Identification

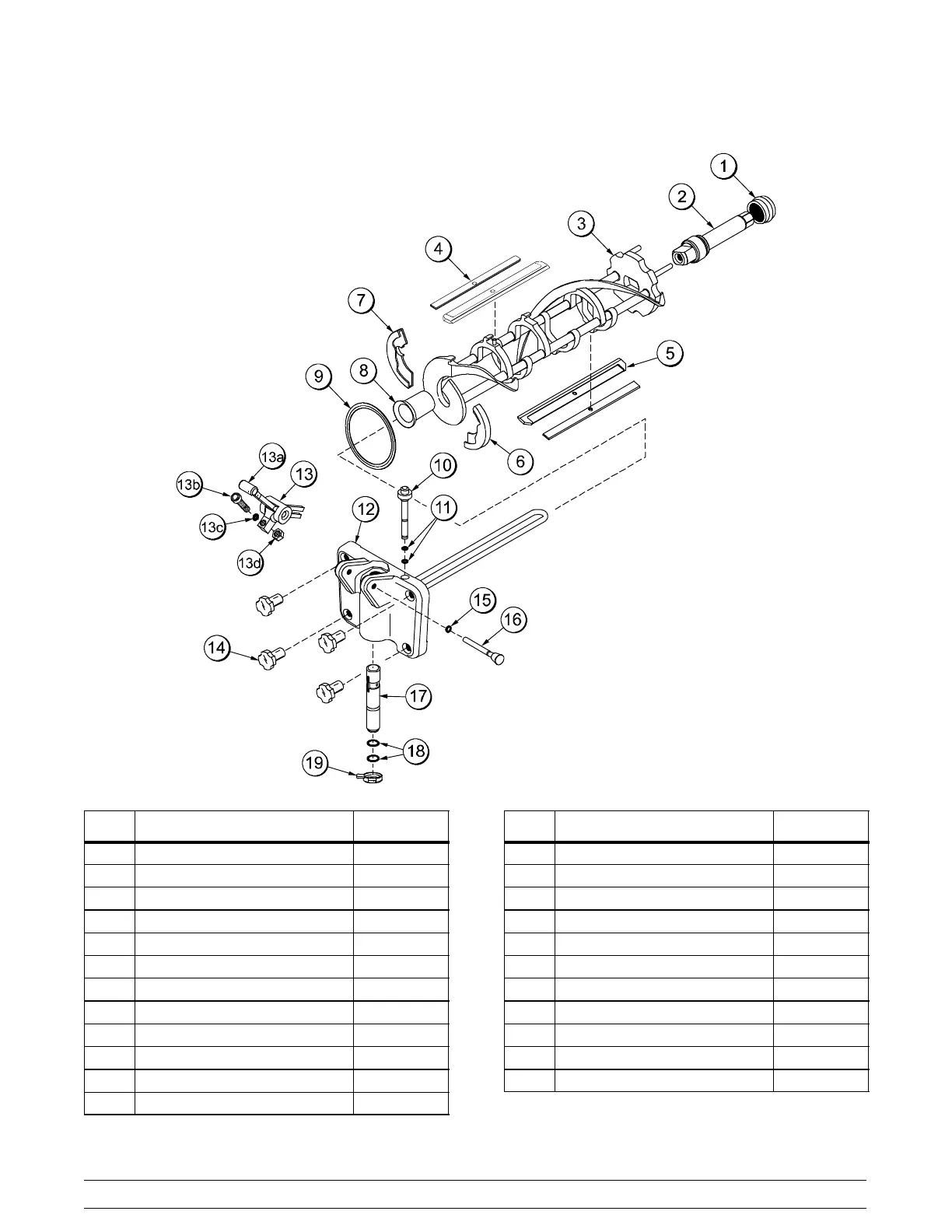

8752 Beater Door Assembly
Figure 2
ITEM DESCRIPTION PART NO.
1 SEAL --DRIVE SHAFT 032560
2 SHAFT --BEATER 032564
3 BEATER A.--3.4QT--1 PIN X46231
4 CLIP--SCRAPER·BLADE*7.00 046236
5 BLADE--SCRAPER --PLASTIC 046235
6 SHOE--FRONT HELIX--FRONT 050347
7 SHOE--FRONT HELIX--REAR 050346
8 BEARING--F RONT--SHOE 050348
9 GASKET --DOOR HT 4”--DBL 048926
10 PLUG--PRIME 028805
11 O--RING --3/8 OD X .070W 016137
12 DOOR A.--1 SPOUT X49460--3
ITEM DESCRIPTION PART NO.
13 HANDLE A.--DRAW--ADJ. X55096
13a HANDLE--ADJUSTABLE 028804
13b SCREW --ADJUSTMENT 055092
13c O--RING--1/4 OD X .070W 50 015872
13d NUT--J AM 029639--BLK
14 NUT--STUD 021508
15 O--RING--5/16 OD X .070W 016272
16 PIN A.--PIVOT X22820
17 VALVE A.--DRAW X18303
18 O--RING--7/8 OD X .103W 014402
19 CAP--DESIGN--1.010”ID--6 PT 014218
