Models 8752 & 8756 with Horizon® Pump Operator Parts Identification
Horizon® Mix Delivery Pump

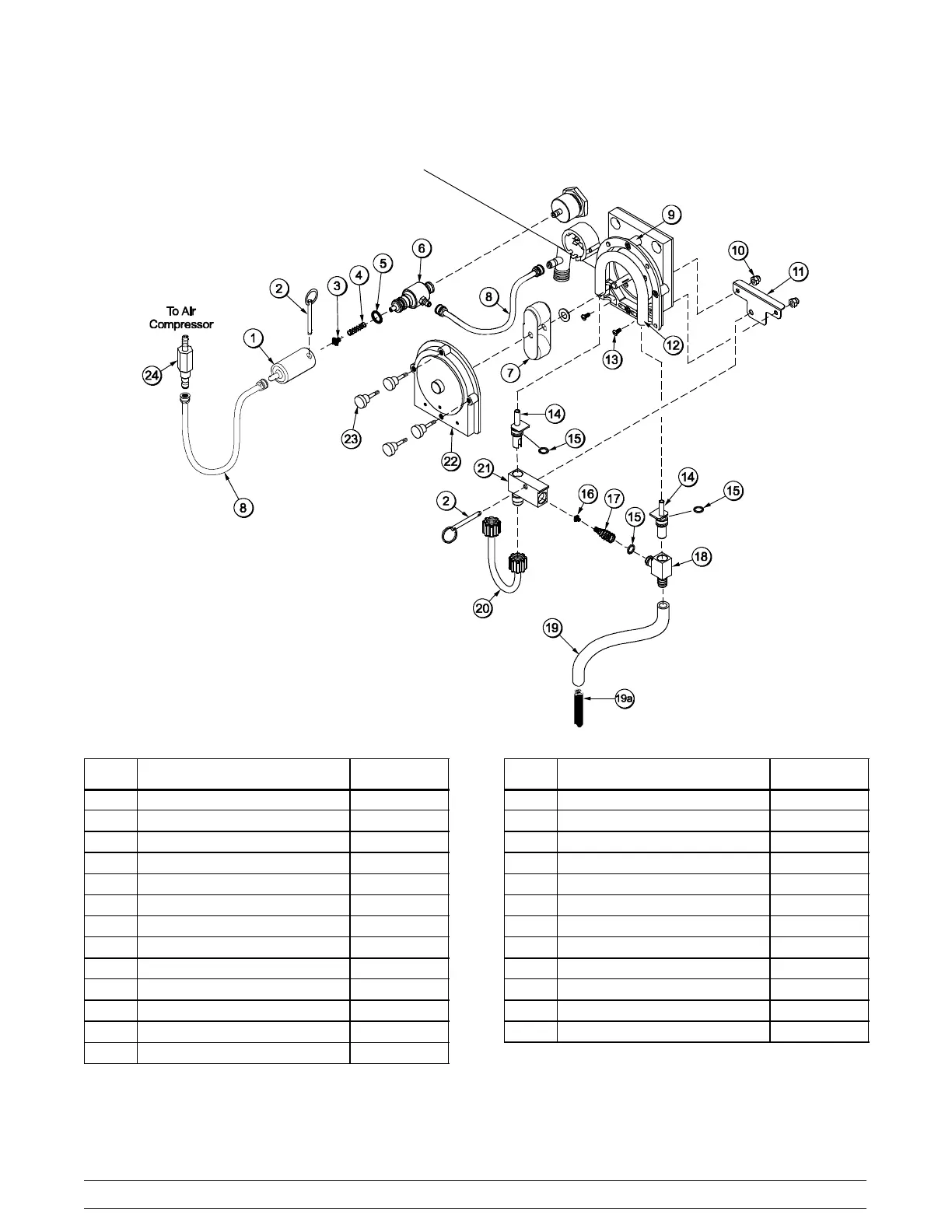

Figure 5
ITEM DESCRIPTION PART NO.
1 CAP-VALVE-CHECK-PERIS. 051946
2 PIN-RETAINING 1/4 OD x 2” L 042306
3 POPPET-RUBBER-BLACK 022473
4 SPRING-COMP 300x.022x1.25 051941
5 O-RING 13/16 OD x .139 W 021278
6 BODY A.-CHECK VALVE X51945-SER
7 ROLLER-PUMP-PERISTALTIC 051887
8 LINE A.-AIR SUPPLY 24” X34654
9 HOUSING-REAR PUMP 051886
10 NUT-10-32 ACORN CUP NUT 035251
11 PLATE-RETAINING PIN 066483
12 TUBE-PUMP-PERISTALTIC 053891
13 SCREW-10-32 x 1/2 SLTD 001251
ITEM DESCRIPTION PART NO.
14 FITTING-PUMP TUBE 066482
15 O-RING 3/4 OD x .103 W 015835
16 POPPET-RUBBER-BLACK 022473
17 SPRING-TAPERED 1-7/8 L 022456
18 FITTING-INLET-PRESS VALVE 066481
19 TUBE A.-SUCTION X20450
19a COUNTERWT-SUCTION TUBE 020452
20 LINE A.-FLARE 15” 038299
21 FITTING-OUTLET-PRESS VLV 066480
22 HOUSING-FRONT-PUMP 051885
23 SCREW-THUMB #10-32 052016
24 FITTING-AIR INJECTION 051862
