12
Models 8752 & 8756 with Horizon® PumpOperator Parts Identification

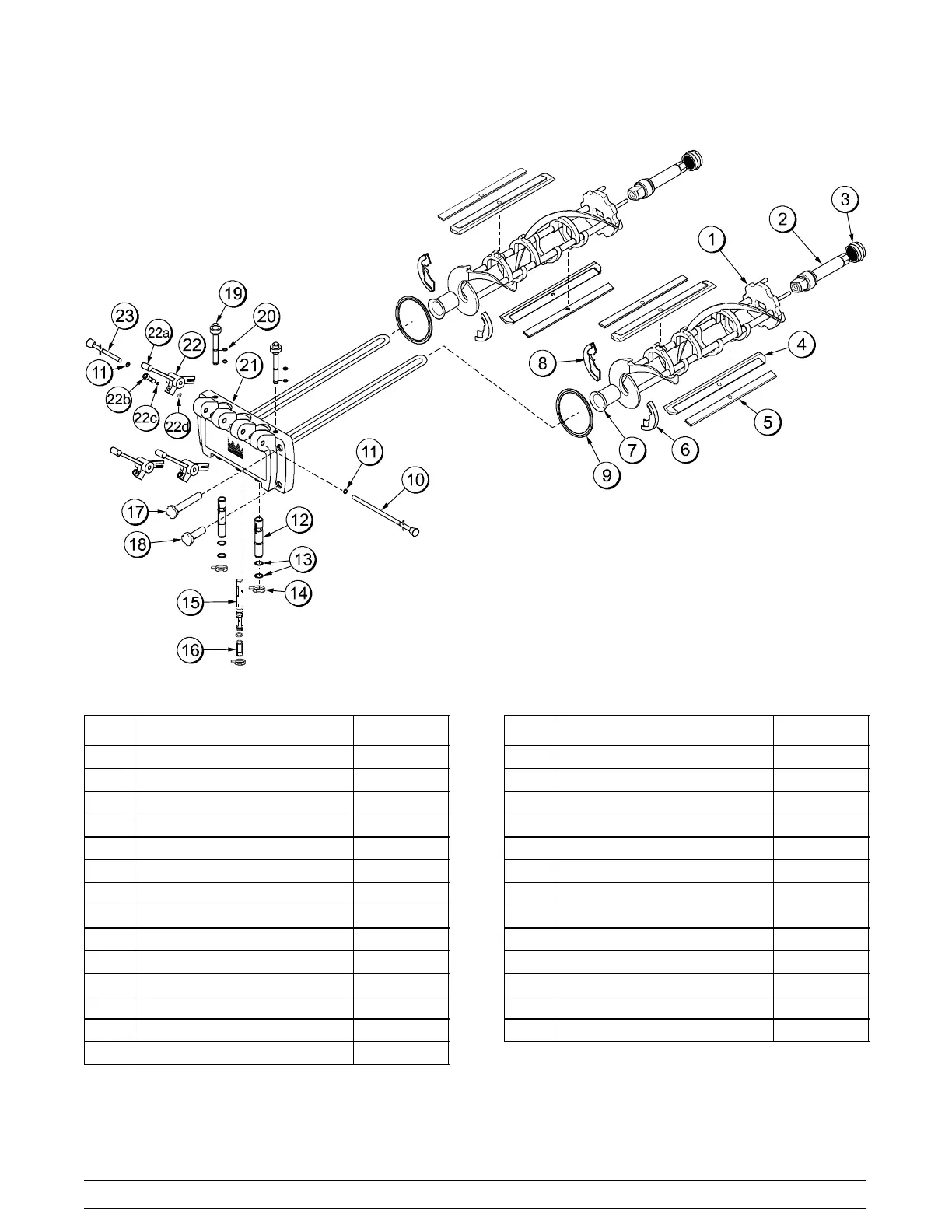

8756 Beater Door Assembly
Figure 4
ITEM DESCRIPTION PART NO.
1 BEATER A.--3.4QT--1 PIN X46231
2 SHAFT --BEATER 032564
3 SEAL --DRIVE SHAFT 032560
4 BLADE--SCRAPER --PLASTIC 046235
5 CLIP--SCRAPER·BLADE --7.00” 046236
6 SHOE--FRONT HELIX--FRONT 050347
7 BEARING--FRONT--SHOE 050348
8 SHOE--FRONT HELIX--REAR 050346
9 GASKET --DOOR HT 4”--DBL 048926
10 ROD A.--PIVOT--LONG X22387
11 O--RING --5/16 OD X .070W 016272
12 VALVE A.--DRAW X18303
13 O--RING--7/8 OD X .103W 014402
14 CAP--DESIGN--1.010”ID--6 PT 014218
ITEM DESCRIPTION PART NO.
15 VALVE A.--DRAW CENTER X37376
16 SEAL--DRAW VALVE 034698
17 NUT--STUD--LONG 034382
18 NUT--STUD --SHORT 034383
19 PLUG--PRIME 028805
20 O--RING--3/8 OD X .070W 016137
21 DOOR A.--3SPT --LG BAF X49461--10
22 HANDLE A.--DRAW ADJ. X55096
22a HANDLE--ADJUSTABLE 028804
22b SCREW--ADJ USTMENT 055092
22c O--RING--1/4 OD X .070W 50 015872
22d NUT--JAM 029639--BLK
23 ROD A.--PIVOT --SHORT X22388
