Taylor C152 - X86420-12-Control A. 115 V 60 HZ (Model C152)

PARTS
4-15
Model C152 & C161
Parts
4

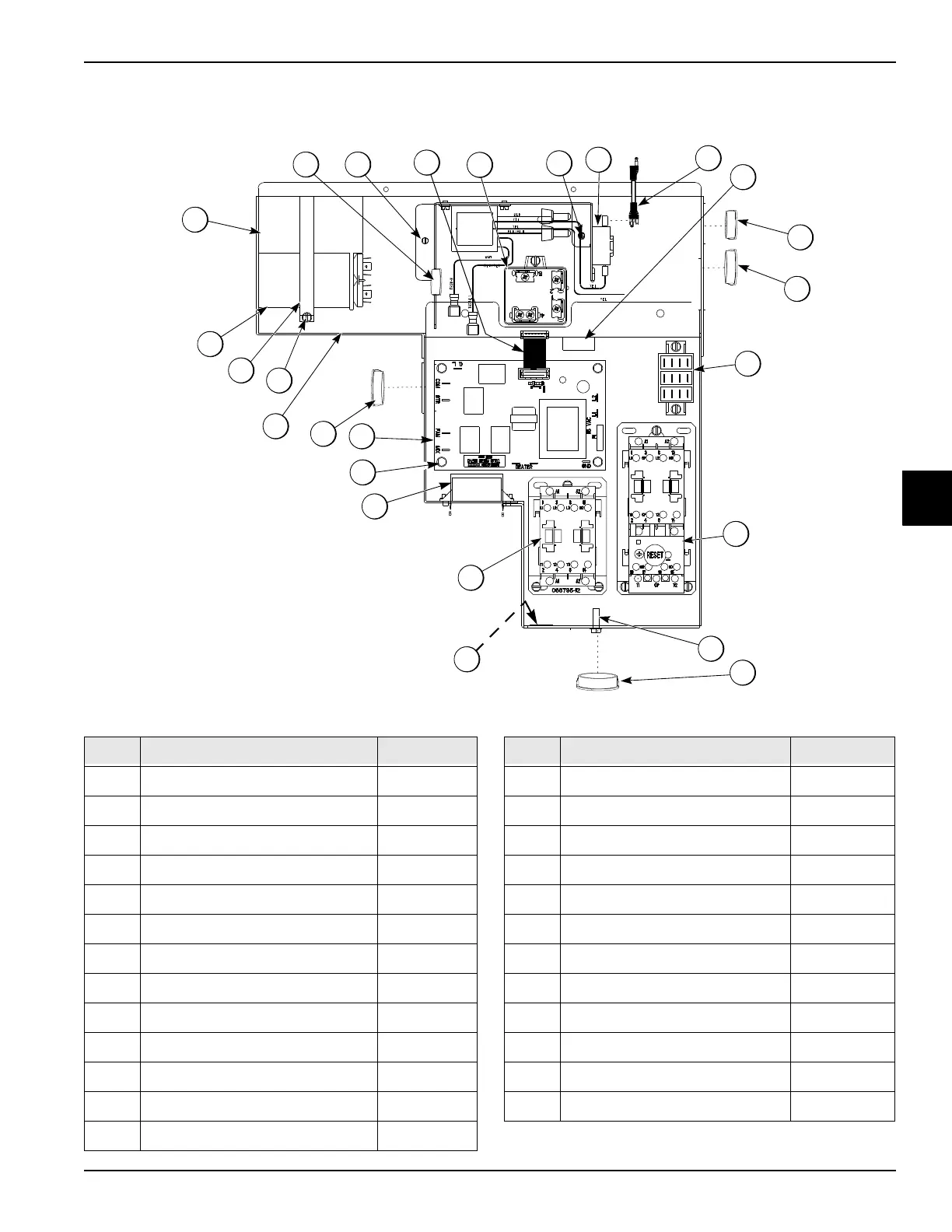

X86420-12—Control A. 115V 60HZ (Model C152)
Figure 4-9
* Not Shown
2
3
4
5
11
11
10
17
6
7
12
13
15
16
19
11
1
20
21
9
22
23
225
2
Item Description Part No.
1
Box A.-Control *C152* X86416
2
Screw-8x1/4 SLTD Hex Washer 009894
3
Strap-Capacitor 5-5/8 in. 030258
4
Capacitor-Run - 25UF/370V 023739
5
Capacitor-Start-72-88UF/250V 039557-27
6
Cable-Ribbon - PWR/RLY 069473-36
7
Relay-Start-Compressor 045432-12
*8
Harness-Wire Cap/Relay *C152* 086254
9
Clamp-Cable-Flat Ribbon 046367
10
Bushing-Snap 1 ID x 1-1/4OD BL 600288
11
Bushing-Snap 1-5/16IDX1-1/2OD 017008
12
Block-Terminal 3 Pole 051331
13
Starter-1 Phase-4.0 to 6.5 Amp 066794-12J
Item Description Part No.
*14
Harness-Wire BTR MTR *C152* 086255
15
Screw-10-32x5/8 Taptite Hex HD 039382
16
Label-Protective Earth Ground 017669
17
Relay-3 Pole 115V 066795-12
*18
Harness-Wire Control Box*C152* 086257
19
Block-Terminal 1 Pole 073423
20
Screw-6-32X5/8 Taptite Hex HD 041363
21
Board-Power-GEN 2 069574-12
22
Harness A.-Wire-Main Power X86554-12
23
Relay A.-Door Interlock *C152* X86626-12
*24
Nut-10-32 Whiz Flange Locknu 020983
25
Bushing-Split 51/64ID x 1-1/ 037491
