Model C161 Specifications (Continued)

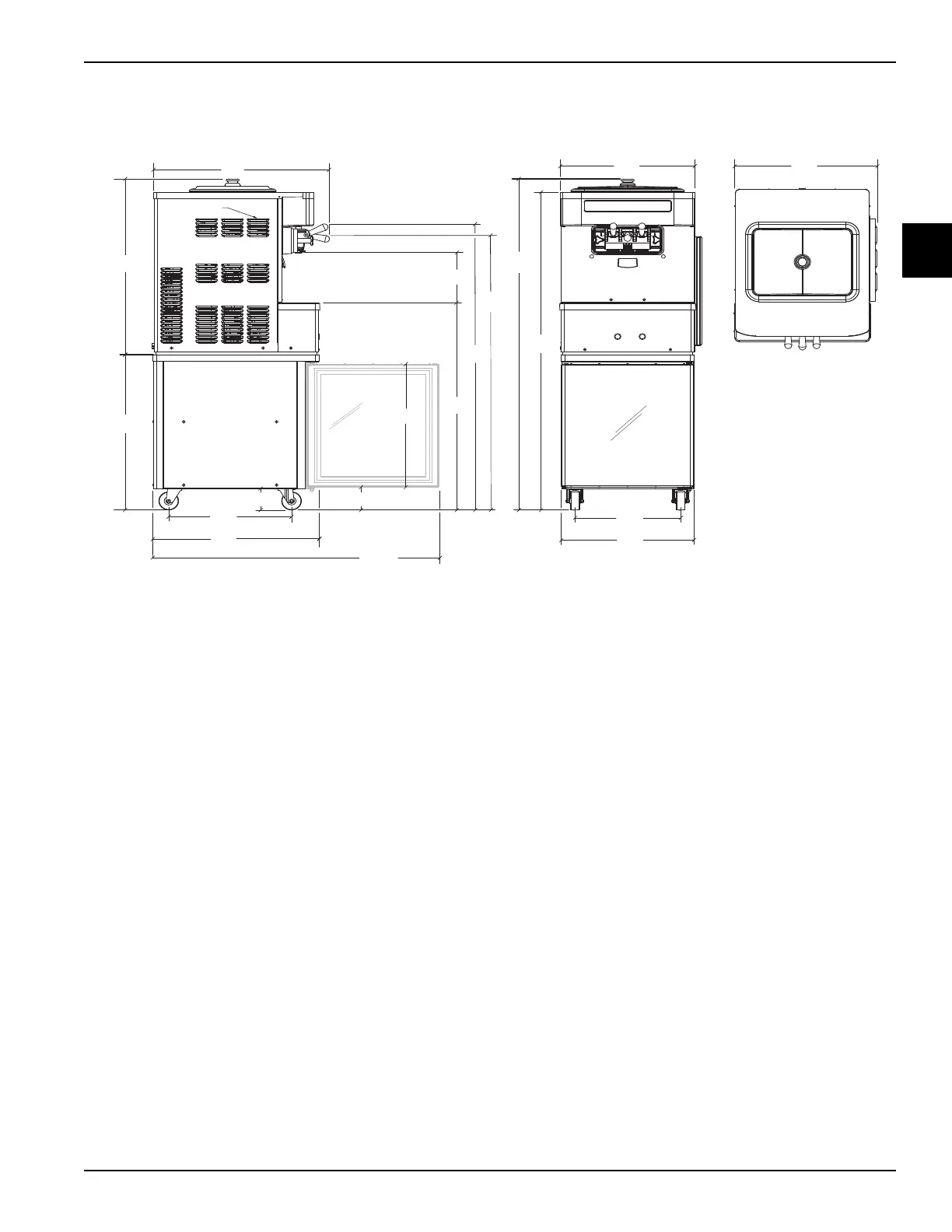

Figure 1-2 C161 with Cart C20700-W00
FIGURES IN BRACKETS INDICATE MILLIMETERS / DECIMAL AND FRACTIONAL DIMENSIONS EQUAL TO ( PLUS OR MINUS 1/16 INCH [1.5mm] ).
DRAWING IS TO BE USED FOR REFERENCE ONLY - DO NOT USE FOR STORE CONSTRUCTION LAYOUT.
54.53
[1385.0]
TOP VIEW
OPERATOR SIDE
22.12
[562.0]
20.28
[515.1]
15.90
[404.0]
19.93
[506.2]
52.34
[1329.4]
AIR IN-FAR SIDE
AIR OUT-NEAR SIDE
26.54
[674]
28.95
[735.3]
25.58
[650.0]
3.53
[90.0]
18.50
[470.0]
21.36
[637.2]
8.25
[210.0]
34.14
[867]
47.11
[1197.0]
45.19
[1148.0]
41.2
[1046.48]
20.28
[515.1]
3.77
[96.0]
