Taylor C161 - X86366 Control A.-Channel (Model C152)

PARTS
4-17
Model C152 & C161
Parts
4
X86366 Control A.-Channel (Model C152)

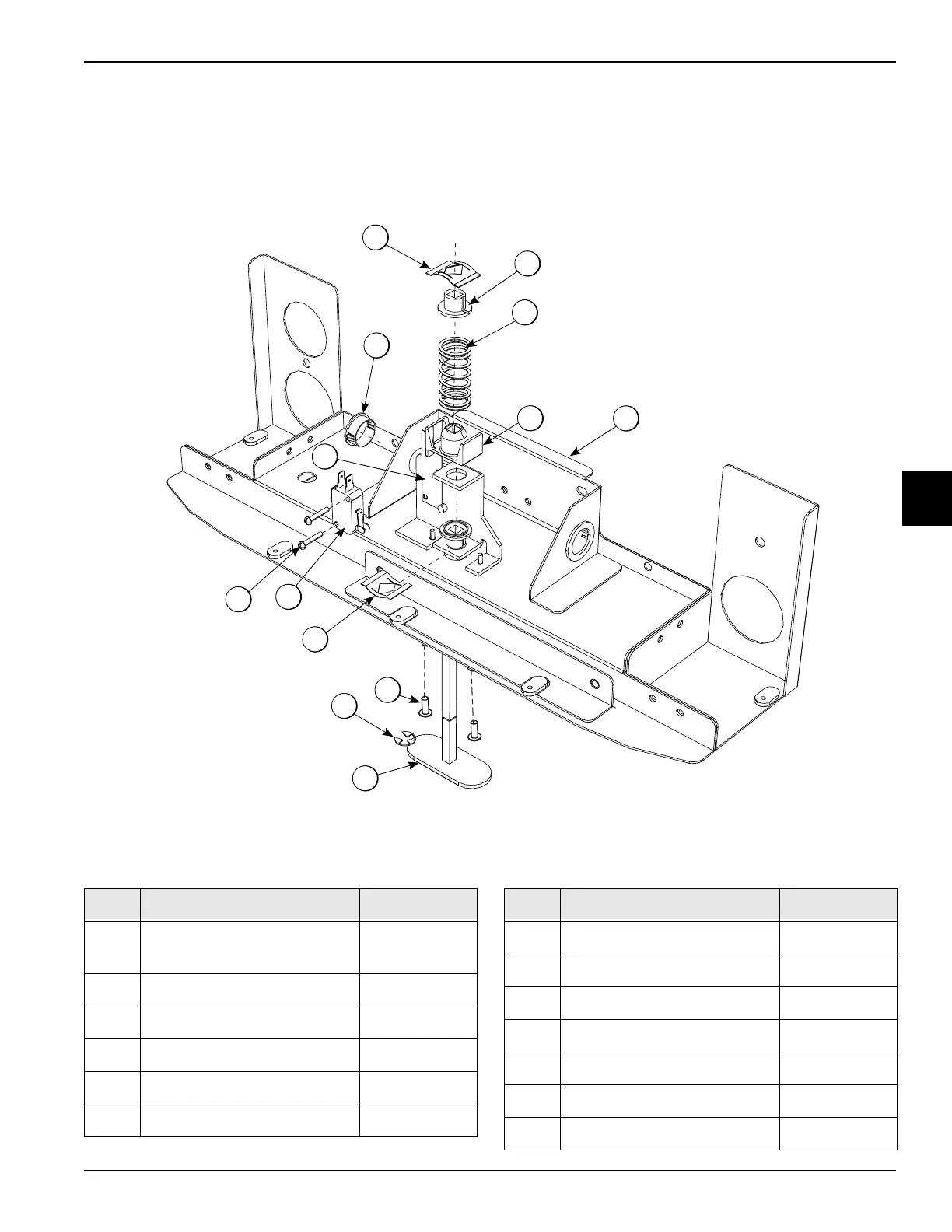

Figure 4-11
1b
1a
2
4
3
1f
5
1c
7
1d
1b
6
1e
Item Description Part No.
1
Switch A.-Draw 
(Includes Items 1a-1f)
X55234
1a
Bearing-Switch 029244
1b
Nut-Push On-1/2DIA. Shaft 039735
1c
Screw-4-40x5/8 SLTD 027219
1d
Switch-Lever-SPDT 027214
1e
Insulator-Switch 1/64 029099
Item Description Part No.
1f
Bracket-Switch 035524
2
Spring-Comp.720x.063X2.00 023664
3
Actuator-Switch-Plastic 035609
4
E-ring-1/4 IN-ZD 034962
5
Arm A.-Switch X30736
6
Bushing-Snap 15/16 ID x 1-3/32 010548
7
Screw-6-32x3/8 SLTD 002201
