Taylor C161 - Refrigeration Schematic

2-10
CONTROLS
Model C152 & C161
Controls
2

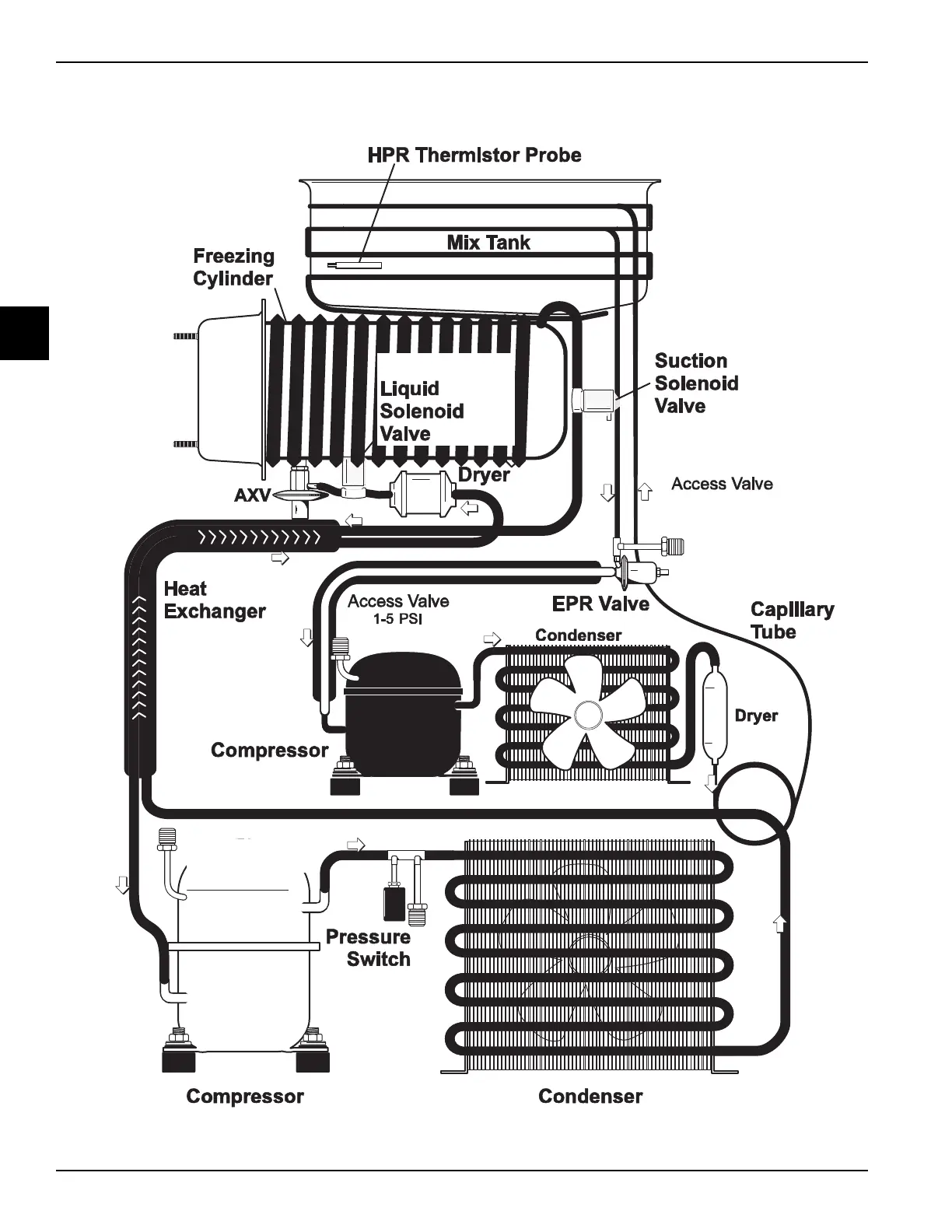

Refrigeration Schematic
Figure 2-5
C152: 20-22 PSI (R404A)
Access Valve (One Side Running for C161)
C161: 15-16 PSI (R404A)
C152 (1)
C161 (2)
C152 (1)
C161 (2)
C152 (0)
C161 (2)
C152 (1)
C161 (2)
C152: 20-22 PSI (R404A)
C161: 15-16 PSI (R404A
)
C152: 20-22 PSI (R404A)
C161: 15-16 PSI (R404A
)
C152 (1)
C161 (2)
C152 (1)
C161 (2)
